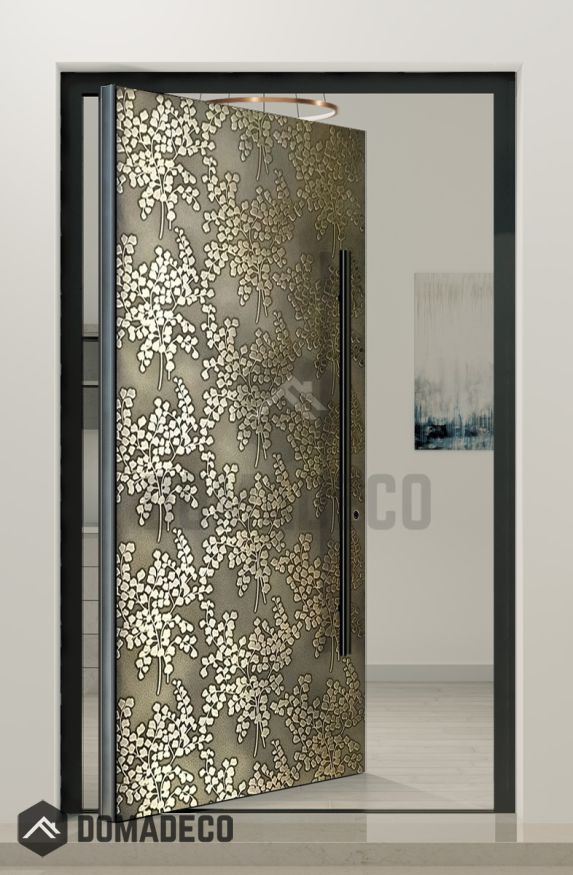

PIVOT M28 - aluminum pivot door with brass texture of milled metal

SKU
PIVOT M28
Be the first to review this product
AVAILABLE
CA$20,580.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

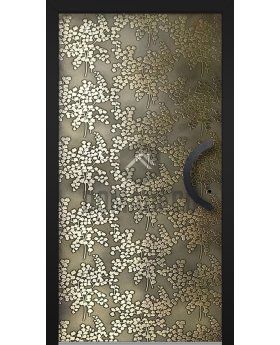

You can order this door model in a smaller size. View LIM M28

This pivot door is are covered with liquid metal.  Liquid metal is a natural and ecological material that offers limitless design possibilities. Its combination of powdered metal and resins creates a durable and visually striking end result. With skilled craftsmanship and the use of modern application techniques, liquid metal can transform any space into a work of art while being mindful of the environment.

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$20,580.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT M28 - aluminum pivot door with brass texture of milled metal
Your Rating

The PIVOT M28 is a premium aluminum pivot door distinguished by its exquisite brass-textured milled metal surface, combining cutting-edge engineering with sophisticated design aesthetics. Crafted for those who value both durability and artistry, this door serves as an impressive architectural centerpiece that enhances the visual appeal and functionality of any space. Its seamless integration of robust materials and refined finishes makes it an ideal choice for modern residential and commercial projects seeking a statement entrance.

At its core, the PIVOT M28 features a high-quality aluminum frame known for its exceptional strength, lightweight nature, and resistance to corrosion and environmental wear. This ensures long-lasting performance and minimal maintenance, even in demanding climates. The aluminum structure provides a sleek, streamlined silhouette that complements contemporary architectural styles while offering a sturdy foundation for the door’s unique surface treatment.

The defining characteristic of the PIVOT M28 is its brass-textured milled metal façade. This finish is achieved through an advanced milling process that meticulously engraves intricate patterns and textures onto the brass layer, producing a tactile, multidimensional surface. The warm, golden tones of the brass combined with the precise milling create a rich interplay of light and shadow, giving the door a luxurious yet modern appearance. This textured metal surface not only elevates the door’s aesthetic appeal but also adds depth and character, making it a captivating focal point.

Functionality is equally prioritized in the PIVOT M28 design. Unlike conventional hinged doors, it operates on a central pivot mechanism that allows for smooth, effortless swinging motion in both directions. This pivot action enhances accessibility and creates a striking visual effect, offering a wide and welcoming entryway. The innovative pivot system also optimizes spatial efficiency, making it well-suited for large openings and contemporary layouts where flow and openness are essential.

In addition to its stunning visual and operational features, the PIVOT M28 is engineered for superior thermal and weather performance. The aluminum frame incorporates thermal breaks and high-quality seals that effectively guard against drafts, moisture, and temperature fluctuations, contributing to energy efficiency and indoor comfort. Security is also a key consideration, with robust locking hardware seamlessly integrated to provide reliable protection without detracting from the door’s elegant design.

Customization options for the PIVOT M28 are extensive, allowing designers and homeowners to tailor the door to their specific aesthetic and functional needs. Various finishes for both the aluminum frame and brass-textured surface are available, along with multiple size configurations and hardware styles. This flexibility ensures the door can harmonize with diverse architectural themes, from ultra-modern minimalism to sophisticated industrial chic.

In summary, the PIVOT M28 aluminum pivot door with brass-textured milled metal is a masterful blend of innovation, durability, and refined craftsmanship. It offers a bold and luxurious entry solution that transforms ordinary doorways into extraordinary architectural statements. Perfect for those who seek a distinctive combination of form and function, the PIVOT M28 delivers lasting beauty, superior performance, and an unparalleled sense of style.
