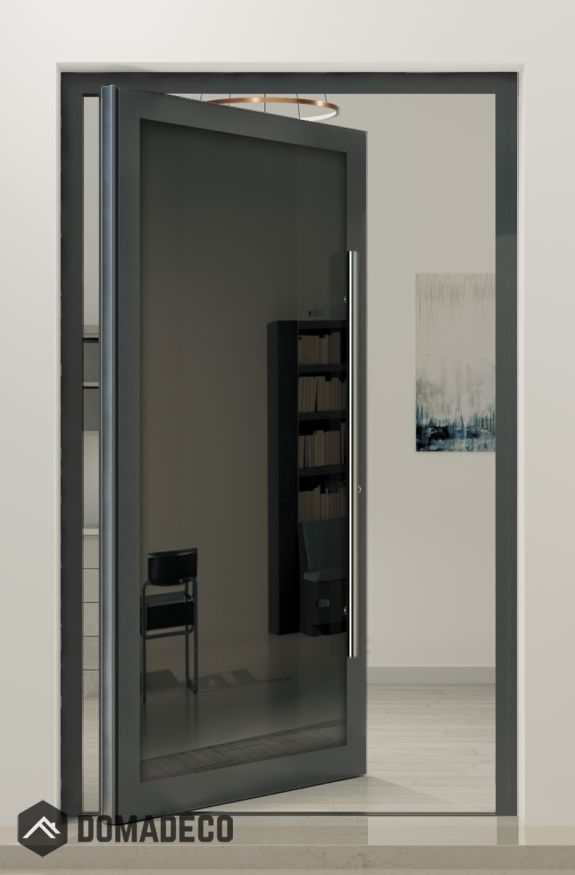

PIVOT VL19 - Lacobel glass coated with a high-quality paint aluminium pivot door

SKU
PIVOT VL19
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,800.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 102.4"

You can order this door model in a smaller size. View LIM VL19

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,800.00

The price includes TAX & shipping

Wish List
Email

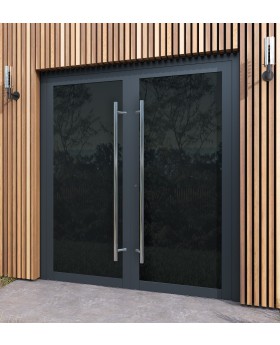

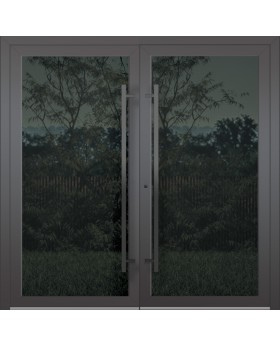

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT VL19 - Lacobel glass coated with a high-quality paint aluminium pivot door
Your Rating

The PIVOT VL19 is an exceptional aluminum pivot door that combines cutting-edge design with superior materials to deliver a truly modern and sophisticated entrance solution. Featuring a sleek Lacobel glass surface coated with a high-quality paint finish on a sturdy aluminum frame, this door offers both outstanding aesthetic appeal and long-lasting durability. Ideal for contemporary architectural projects, the PIVOT VL19 is designed to elevate the look and functionality of any residential or commercial space with its flawless fusion of style, strength, and innovation.

At the core of the PIVOT VL19 is its robust aluminum frame, celebrated for its lightweight yet incredibly strong properties. Aluminum’s natural resistance to corrosion and environmental factors ensures that the door will maintain its structural integrity and pristine appearance for years, even under heavy use and exposure to harsh weather conditions. The frame is treated with a premium quality paint coating, which not only enhances the visual richness of the door but also provides an additional layer of protection against scratches, fading, and wear, guaranteeing a finish that remains vibrant and flawless over time.

The standout feature of the PIVOT VL19 is its Lacobel glass panel, a high-end painted glass known for its smooth, reflective surface and rich color options. Lacobel glass is renowned for combining aesthetics with practicality—it offers a stunning glossy finish that adds depth and elegance to the door, while its durable coating makes it resistant to scratches and easy to maintain. With a variety of colors available, the Lacobel glass allows for extensive customization, enabling architects and designers to create striking entrances that perfectly complement the building’s overall design language.

The innovative pivot mechanism incorporated in the PIVOT VL19 sets it apart from traditional hinged doors by allowing the door to rotate smoothly around a central vertical axis. This pivot system supports large and heavy door panels, permitting grand, dramatic entrances that enhance the architectural character of any space. The door’s balanced operation ensures effortless opening and closing, combining functionality with an impressive visual impact. This mechanism also optimizes space usage, as the door swings inward or outward without requiring additional clearance like conventional doors.

Customization options for the PIVOT VL19 are extensive, making it a versatile choice for a wide range of applications. Beyond the selection of Lacobel glass colors and paint finishes, the door can be outfitted with energy-efficient glazing to improve thermal insulation and acoustic performance, contributing to reduced energy consumption and a quieter indoor environment. These features make the door an environmentally responsible choice without sacrificing design or quality.

Security and durability are paramount in the design of the PIVOT VL19. The toughened Lacobel glass enhances resistance against impacts and forced entry, while the strong aluminum frame and pivot hardware provide reliable support and stability. The door system is compatible with advanced locking mechanisms, including multi-point locks, which offer enhanced protection and peace of mind. This robust construction ensures that the door not only looks impressive but also performs reliably in terms of safety and security.

Installation of the PIVOT VL19 is designed for precision and ease. Adjustable components enable fine-tuning to achieve perfect alignment and optimal door operation. The use of high-quality materials and finishes reduces maintenance requirements, making this door a practical and long-term investment for any building project.

In summary, the PIVOT VL19 aluminum pivot door with Lacobel glass coated in high-quality paint is a premium entrance solution that embodies modern elegance, exceptional durability, and innovative engineering. Its striking glass finish, combined with a resilient painted aluminum frame and smooth pivot action, offers an unparalleled blend of style and functionality. Whether for prestigious residential homes or sophisticated commercial developments, the PIVOT VL19 delivers a bold architectural statement, outstanding performance, and lasting value.
