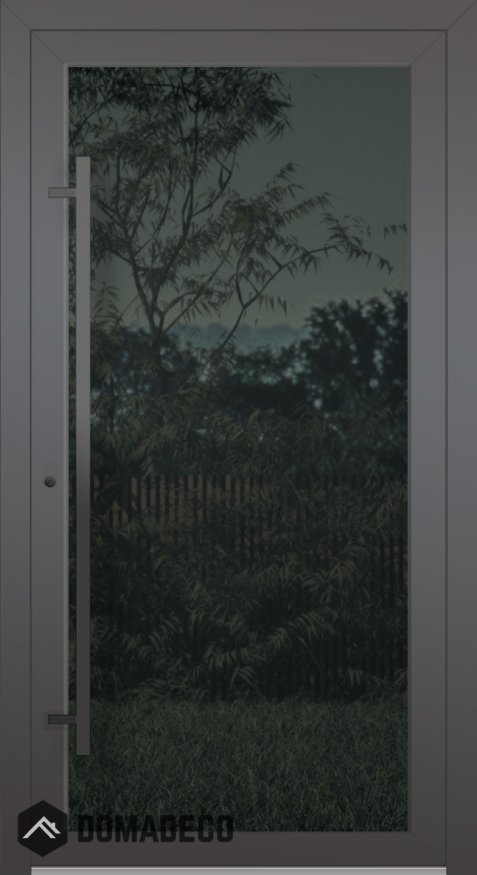

LIM VL19 - Painted Glass Lacobel aluminium door

SKU
LIM VL19
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$7,100.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

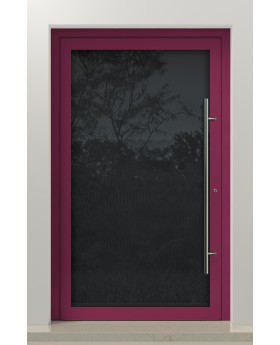

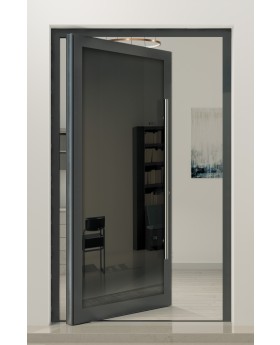

You can order this door model in a bigger size. View Pivot VL19

Panels from the Lacobel Line series are a great addition to modern arrangements, very popular among architects and interior designers. Lacobel is an exclusive type of glass belonging to the float glass group. The glass is covered with high-quality varnish on one side, which ensures an elegant appearance and makes applications resistant to dirt.
Panel structure - tempered lacobel 6mm / xps / internal sheet

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$7,100.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM VL19 - Painted Glass Lacobel aluminium door
Your Rating

The LIM VL19 Painted Glass Lacobel aluminum door panels from the Lacobel Line series are an excellent choice for enhancing modern architectural and interior design projects. These panels have earned widespread acclaim among architects and interior designers due to their sleek aesthetics, superior quality, and versatile applications. Designed to complement contemporary spaces, the LIM VL19 panels bring a refined elegance that elevates any environment, whether residential, commercial, or corporate.

At the heart of these panels is Lacobel glass, a premium and exclusive type of glass that belongs to the float glass family. What sets Lacobel apart is its unique manufacturing process, where one side of the glass is coated with a high-quality varnish. This special coating creates a smooth, glossy surface with rich, uniform coloration that adds depth and vibrancy to the panels. Beyond its stunning visual appeal, the varnish also makes the glass resistant to dirt and smudges, simplifying maintenance and ensuring the panels retain their pristine look over time. This combination of beauty and practicality makes Lacobel glass an ideal choice for door panels that are both decorative and functional.

The structural composition of the LIM VL19 panels further enhances their performance and durability. These panels feature a layered construction consisting of a 6mm tempered Lacobel glass surface, an XPS (extruded polystyrene) core, and an internal sheet. The tempered glass layer offers increased strength and safety, as it is designed to withstand impact and thermal stresses without shattering. This makes the panels suitable for high-traffic areas and spaces where safety is paramount. The XPS core provides excellent thermal insulation, helping to regulate indoor temperature and improve energy efficiency. This is especially beneficial in climates with extreme temperatures or in buildings aiming for sustainable design certifications. The internal sheet adds further structural stability, ensuring the panels maintain their shape and integrity over long periods of use.

Thanks to their innovative design and high-quality materials, LIM VL19 Painted Glass Lacobel aluminum door panels are not only visually appealing but also highly functional. Their smooth, reflective surfaces can enhance natural light within a space, creating a brighter and more inviting atmosphere. Additionally, the panels are available in a wide range of colors, allowing designers to customize the look to suit any interior style or color scheme. This flexibility makes them a popular choice for modern offices, hotels, retail spaces, and upscale homes.

In conclusion, the LIM VL19 Painted Glass Lacobel aluminum door panels from the Lacobel Line series represent an outstanding fusion of design, durability, and practicality. Their exclusive lacquered glass surface, combined with a robust and thermally efficient panel structure, makes them a premier option for contemporary door solutions. Whether used as a focal design element or a subtle architectural feature, these panels provide a sophisticated and long-lasting addition to any modern arrangement.
