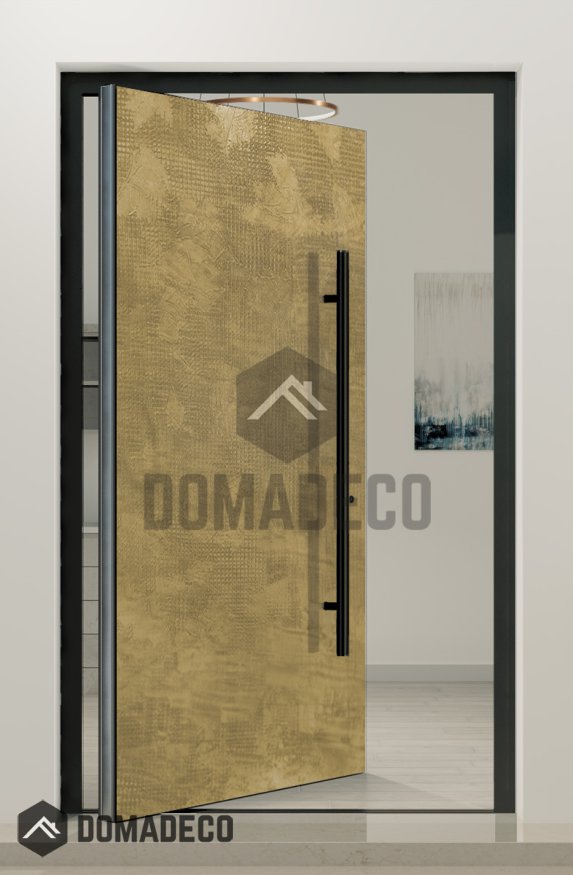

PIVOT M1 - Aluminum pivot door coated with liquid metal

SKU
PIVOT M1
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$20,580.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

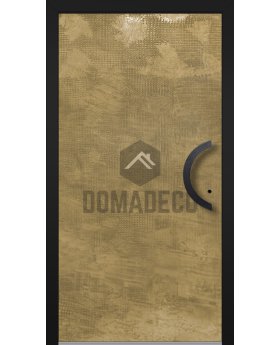

You can order this door model in a smaller size. View LIM M1

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$20,580.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT M1 - Aluminum pivot door coated with liquid metal
Your Rating

The PIVOT M1 Aluminum Pivot Door Coated with Liquid Metal is a state-of-the-art architectural solution that perfectly blends innovative engineering, premium materials, and cutting-edge finishing technology to create an entrance that is as captivating as it is durable. Designed for discerning architects, designers, and property owners who seek to make a bold statement, this pivot door transforms any space with its sleek, modern silhouette and unmatched performance characteristics.

At the heart of the PIVOT M1 is a precision-engineered aluminum frame, chosen for its superior strength, lightweight properties, and exceptional resistance to corrosion. Aluminum’s natural durability ensures that the door withstands the rigors of daily use and the challenges of diverse climates without warping, rusting, or deteriorating over time. The pivot mechanism is expertly integrated into the design, allowing the door panel to rotate smoothly around a central pivot point. This not only enables a seamless and dramatic opening experience but also supports larger door sizes, offering architects greater creative freedom and flexibility in spatial design.

What truly elevates the PIVOT M1 is its innovative liquid metal coating—a groundbreaking finish that imparts a distinctive metallic sheen with a mirror-like quality. This advanced coating technique enhances the aluminum’s surface by providing a resilient, scratch-resistant layer that maintains its lustrous appearance even after years of exposure to sunlight, moisture, and varying temperatures. The liquid metal finish creates a dynamic interplay of light and reflection, giving the door a futuristic and luxurious aesthetic that complements contemporary architectural styles and adds a touch of sophistication to any entranceway.

Beyond its striking visual appeal, the PIVOT M1 is engineered for optimal energy efficiency and environmental performance. The aluminum frame incorporates thermal break technology that significantly reduces heat transfer, helping to maintain stable indoor temperatures and reduce energy consumption for heating and cooling. When combined with high-performance glazing options—such as double or triple-pane low-emissivity glass—the door provides excellent insulation, soundproofing, and UV protection, contributing to a comfortable and sustainable living or working environment.

Security and reliability are paramount in the design of the PIVOT M1. Featuring robust pivot hardware and multi-point locking systems, this door delivers superior protection against forced entry without compromising its elegant profile. Optional safety glass variants, including laminated and tempered options, further enhance security while ensuring the door remains a sleek and minimalist focal point.

Customization is a key feature of the PIVOT M1, with a wide range of sizes, finishes, hardware styles, and glazing configurations available to tailor the door precisely to project requirements. Whether used as a grand entrance, an interior partition, or a statement architectural element, the PIVOT M1 adapts seamlessly to various design themes—from minimalist modern to industrial chic or contemporary luxury.

Installation is supported by expert professional services to guarantee precise alignment and smooth operation, ensuring long-term durability and ease of maintenance. The PIVOT M1 Aluminum Pivot Door Coated with Liquid Metal is not only a functional entry solution but also a true work of art that elevates the architectural identity of any space.

In summary, the PIVOT M1 Aluminum Pivot Door Coated with Liquid Metal offers an extraordinary combination of advanced pivot technology, resilient aluminum construction, a stunning liquid metal finish, superior energy efficiency, and enhanced security features. It is the ultimate choice for those seeking a sophisticated, durable, and visually striking pivot door that redefines modern architectural entrances with elegance and innovation.
