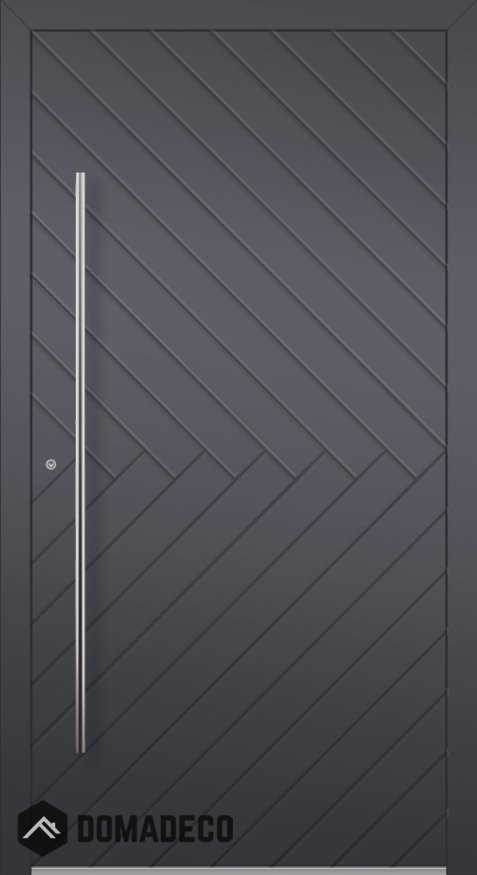

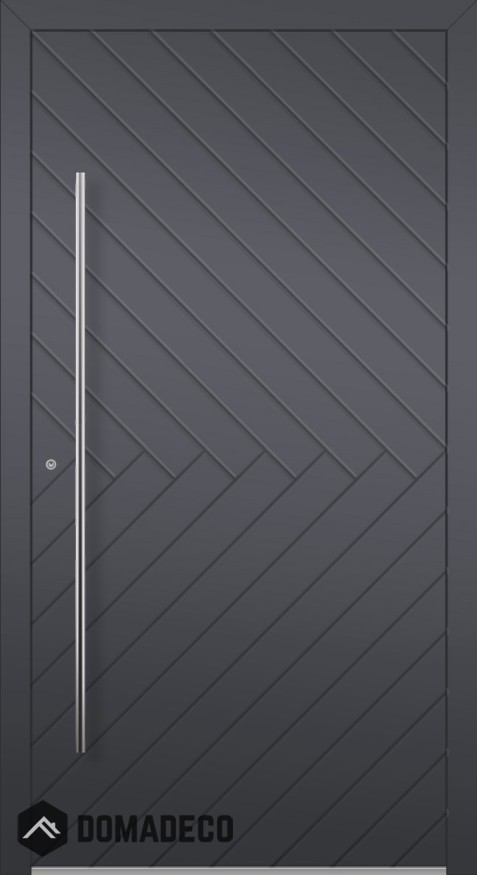

LIM V59 - prehung aluminium exterior door

Profile construction

Technical specifications:

• The multi-point lock FUHR is used for locking. It has many locking and control configurations.
• Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
• Glazing in the door leaf: triple glazing glass
• Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
• Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
• Sound insulation: 30dB

The door set includes:

• Aluminium door and the door frame;
• door handle made of stainless steel;
• 3-part roller hinges in the same color as the door;
• Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
• Threshold strip 15 mm height;
• Standard lock insert with 5 keys.

Glazing

Types of glazing

Light permeability of the glass:

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!

RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.

Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

Multi-point lock Hook-bolts 855GL type-11

• steel hooks and pins
• Three-dimensional locking with integrated hooks and metal pins for optimal security.
• Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.
