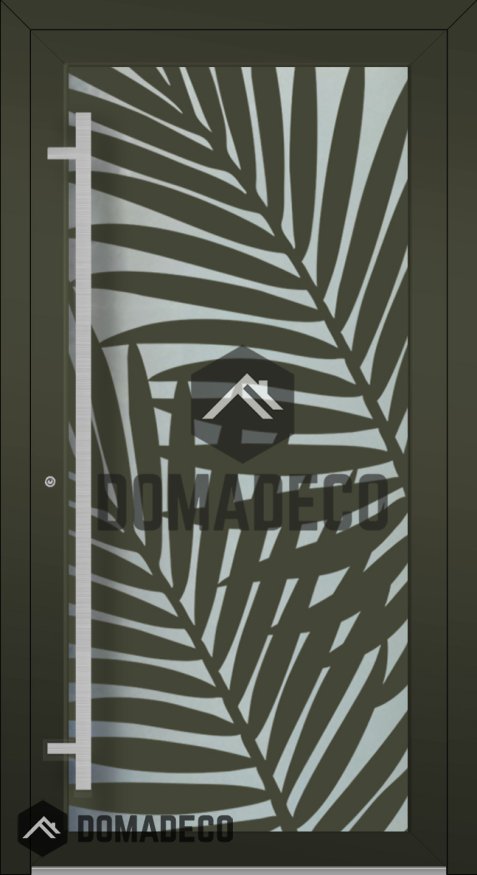

LIM G3 - Glass aluminum door with decorative panel

SKU
LIM-G3
Rating:
100 % of 100
AVAILABLE
CA$8,850.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

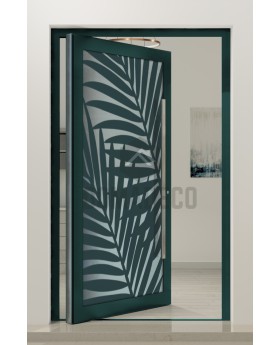

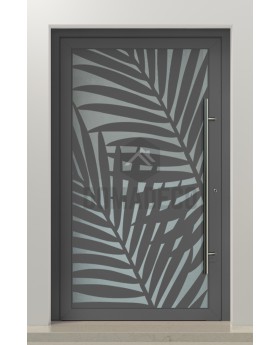

You can order this door model in a bigger size. View Pivot G3

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$8,850.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G3 - Glass aluminum door with decorative panel
Your Rating

The LIM G3 glass aluminum door with decorative panel is a premium entrance solution that expertly blends contemporary design with superior durability and security, making it an ideal choice for both residential and commercial properties. This door is thoughtfully engineered to enhance the visual appeal of any building while providing reliable performance and long-lasting functionality.

At its core, the LIM G3 features a robust aluminum frame crafted from high-quality materials that offer exceptional strength and resistance to corrosion, rust, and environmental wear. Aluminum’s lightweight nature ensures ease of installation and operation, while its inherent durability guarantees that the door will withstand the test of time, maintaining its structural integrity and sleek appearance even in challenging weather conditions. The precision-engineered frame securely holds large glass panels, creating an open and inviting entryway that allows abundant natural light to flood interior spaces.

The glass used in the LIM G3 door is tempered or laminated safety glass, designed to provide enhanced security and resilience against impacts. This safety glass not only ensures the protection of occupants but also contributes to the door’s modern aesthetic by offering clear, clean lines and a sense of transparency. To accommodate privacy and design preferences, the glass can be customized with various finishes such as frosted, tinted, or textured surfaces. These options allow homeowners and designers to tailor the door’s appearance while maintaining a balance between openness and discretion.

One of the defining features of the LIM G3 is its decorative panel, which adds a distinctive artistic element to the door’s overall design. These panels are crafted with meticulous attention to detail and feature intricate patterns, geometric motifs, or custom designs that elevate the door from a mere functional element to a statement piece. The decorative panel enhances the door’s visual interest and allows for personalization that complements the architectural style of the property, whether it be modern, minimalist, or more traditional.

Security is a paramount consideration in the LIM G3 door’s design. It is equipped with advanced locking systems and reinforced hardware that provide a formidable defense against unauthorized access. The combination of a strong aluminum frame and toughened glass ensures that the door offers both aesthetic beauty and peace of mind. Additionally, the door’s tight seals contribute to excellent thermal insulation and soundproofing, promoting energy efficiency and creating a comfortable indoor environment free from external noise disruptions.

Maintenance of the LIM G3 door is minimal, owing to the high-performance coatings applied to the aluminum frame that protect against fading, scratching, and environmental damage. This ensures the door retains its fresh, polished look for years with only simple cleaning required. The glass panels are also easy to maintain and keep transparent with regular care.

Customization options for the LIM G3 are extensive, allowing clients to select from a wide range of frame colors, glass finishes, and decorative panel designs to perfectly match their aesthetic vision and functional needs. This versatility makes the LIM G3 suitable for various architectural contexts, from sleek urban apartments to grand commercial entrances.

In summary, the LIM G3 glass aluminum door with decorative panel is a sophisticated fusion of artistry, functionality, and resilience. Its elegant aluminum frame, secure safety glass, and eye-catching decorative detailing come together to create an entrance that not only enhances curb appeal but also guarantees lasting performance and security. For those seeking a stylish and dependable door that makes a strong design statement, the LIM G3 represents an outstanding choice that exceeds expectations.
