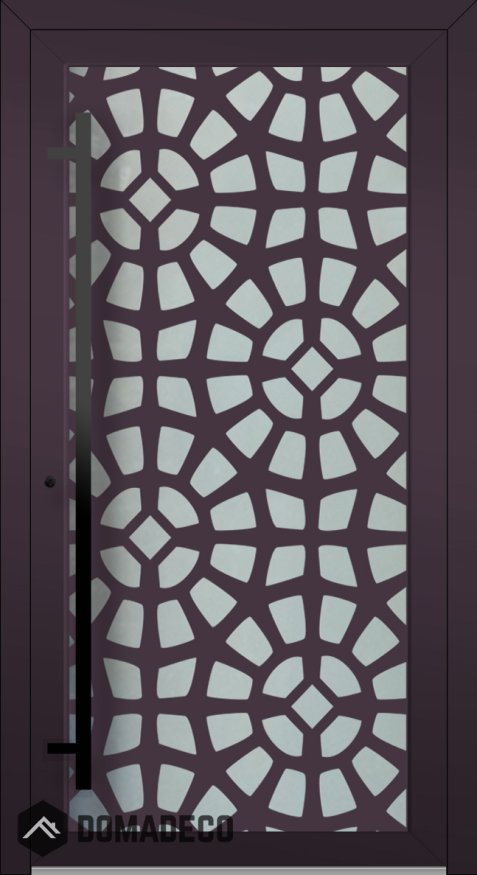

LIM G2 - Glass front aluminum door with decorative panel

SKU
LIM-G2
Rating:
100 % of 100
AVAILABLE
CA$8,850.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View Pivot G2

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$8,850.00

The price includes TAX & shipping

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G2 - Glass front aluminum door with decorative panel
Your Rating

The LIM G2 Glass Front Aluminum Door with Decorative Panel represents the perfect fusion of modern design, durability, and functionality, offering an exceptional entry solution for both residential and commercial properties. Engineered with precision and crafted using premium materials, this door is designed to elevate the aesthetic appeal of any space while providing outstanding performance in terms of security, energy efficiency, and weather resistance.

At the heart of the LIM G2 door is its robust aluminum frame, renowned for its lightweight yet strong characteristics. Aluminum naturally resists corrosion and requires minimal maintenance, making it an ideal choice for exterior doors exposed to varying weather conditions. The frame is treated with a high-quality finish that enhances its longevity, resisting fading, scratches, and environmental wear, ensuring the door maintains its pristine appearance for years to come. Furthermore, the incorporation of thermal break technology within the frame significantly improves insulation by reducing heat transfer, which helps maintain comfortable indoor temperatures and contributes to energy savings.

One of the most striking features of the LIM G2 door is its expansive glass front, which allows natural light to flood interior spaces, creating an inviting and bright atmosphere. The glass used is of superior quality, often available in options such as tempered or laminated safety glass, which provides enhanced durability and security. Additionally, the glass can be customized with various finishes including clear, frosted, tinted, or decorative patterns, giving homeowners and designers the flexibility to balance privacy with style. This adaptability ensures the door complements a wide range of architectural styles — from sleek, contemporary homes to sophisticated commercial buildings.

Adding a unique and artistic flair to the LIM G2 door is the decorative panel integrated alongside the glass front. This panel serves as a distinctive design element that elevates the door beyond simple functionality, turning it into a stunning centerpiece for any entrance. Available in a variety of finishes, textures, and intricate patterns, the decorative panel can be tailored to suit personal taste or to harmonize seamlessly with the overall design theme of the property. Whether it features geometric lines, organic motifs, or custom artwork, this element enhances curb appeal and makes a bold design statement.

Security is paramount in the LIM G2 door’s design. It boasts a sophisticated multi-point locking system that secures the door firmly at several points along the frame, offering superior protection against unauthorized entry. Heavy-duty hinges and reinforced aluminum profiles ensure smooth operation and long-lasting durability, even with frequent use. For those seeking modern convenience, the door is compatible with smart lock systems, enabling keyless entry, remote control, and integration with home automation platforms — providing both enhanced security and ease of access.

The door’s weatherproofing capabilities are equally impressive. High-quality seals and gaskets prevent drafts, water infiltration, and reduce noise pollution, creating a comfortable and quiet indoor environment. The aluminum surfaces are treated with resilient coatings that protect against environmental damage, maintaining the door’s attractive appearance and functional integrity over time.

Installation of the LIM G2 Glass Front Aluminum Door with Decorative Panel is conducted by skilled professionals who ensure precise fitting and alignment, which maximizes both the door’s performance and visual impact. Its versatile design makes it suitable for a variety of settings including front entrances, office lobbies, patios, and commercial storefronts, where it combines style, security, and practicality seamlessly.

In summary, the LIM G2 Glass Front Aluminum Door with Decorative Panel is a premium entrance solution that combines contemporary elegance with robust performance. Offering customizable design features, exceptional security, superior insulation, and lasting durability, this door is an excellent investment for anyone looking to enhance the beauty, safety, and efficiency of their property’s entrance.
