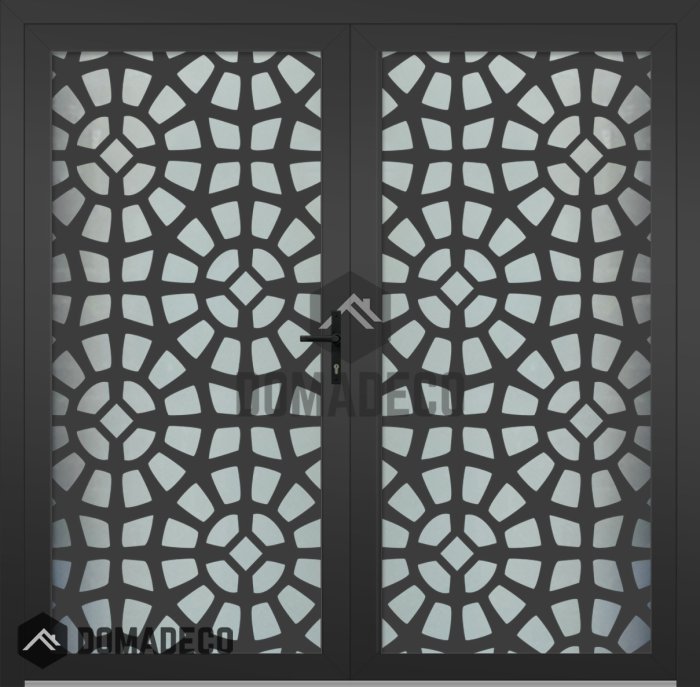

LIM G2 double - Double glass aluminium door with decorative panel

SKU
LIM G2 double
Be the first to review this product
AVAILABLE
CA$17,700.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$17,700.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G2 double - Double glass aluminium door with decorative panel
Your Rating

The LIM G2 Double – Double Glass Aluminium Door with Decorative Panel is an exquisite and highly functional entrance solution designed to bring both sophistication and practicality to residential and commercial spaces alike. Combining the sleek aesthetics of modern aluminium framing with the elegance and transparency of double glass panels, this door exemplifies superior craftsmanship, durability, and versatility. It is the ideal choice for those seeking a grand yet secure entryway that makes a lasting impression.

The construction of the LIM G2 Double door centers around a premium-grade aluminium frame that offers exceptional strength and resistance to corrosion, weathering, and everyday wear. Aluminium’s lightweight nature ensures effortless operation, while its robustness guarantees long-lasting performance even in high-traffic environments. The frame is enhanced with advanced thermal break technology, which effectively reduces heat transfer between the interior and exterior, improving energy efficiency and helping to maintain comfortable indoor temperatures throughout the year.

The defining feature of this door is its double glass design, which consists of two layers of high-quality glass panels that provide enhanced insulation, soundproofing, and security. These glass panels are typically made from tempered or laminated safety glass, ensuring durability and resistance to impact while offering peace of mind. The double glazing significantly reduces heat loss and external noise, contributing to a more energy-efficient and tranquil living or working environment. Additionally, the glass can be customized in various finishes such as clear, frosted, tinted, or patterned, allowing for tailored privacy and style preferences.

The decorative panel integrated into the LIM G2 Double door adds a striking visual dimension that elevates the overall design. This artistic element is available in a wide array of textures, colors, and patterns, ranging from contemporary geometric motifs to classic ornamental designs. The decorative panel not only enhances the door’s aesthetic appeal but also serves as a unique statement piece that complements the architectural style of any building. This customization option enables property owners and designers to create a distinctive entrance that reflects individual taste and character.

Security and functionality remain paramount in the LIM G2 Double door’s design. Equipped with a high-performance multi-point locking system, the door ensures maximum protection by securing multiple points along the frame, significantly deterring forced entry attempts. Heavy-duty hinges and reinforced aluminium profiles guarantee smooth, reliable operation and long-term durability. For modern convenience, the door is compatible with advanced locking technologies, including smart locks that allow keyless entry, remote access, and integration with home automation systems, enhancing both security and user experience.

Furthermore, the door is engineered for superior weather resistance. High-quality seals and gaskets prevent drafts, moisture intrusion, and noise pollution, contributing to a comfortable interior atmosphere. The aluminium surfaces are coated with durable, scratch-resistant finishes that maintain the door’s pristine look and performance over time with minimal maintenance.

Professional installation ensures that the LIM G2 Double – Double Glass Aluminium Door with Decorative Panel fits perfectly and functions optimally, maximizing its aesthetic and practical benefits. Its versatile and elegant design makes it suitable for a wide range of applications, including main entrances, commercial lobbies, patios, and upscale office spaces.

In conclusion, the LIM G2 Double – Double Glass Aluminium Door with Decorative Panel stands out as a premium entryway solution that blends contemporary elegance, exceptional durability, and superior energy efficiency. With customizable design options, enhanced security features, and outstanding performance against weather and wear, this door is an excellent investment for anyone looking to create a stunning and secure entrance that truly elevates their property’s overall appeal.
