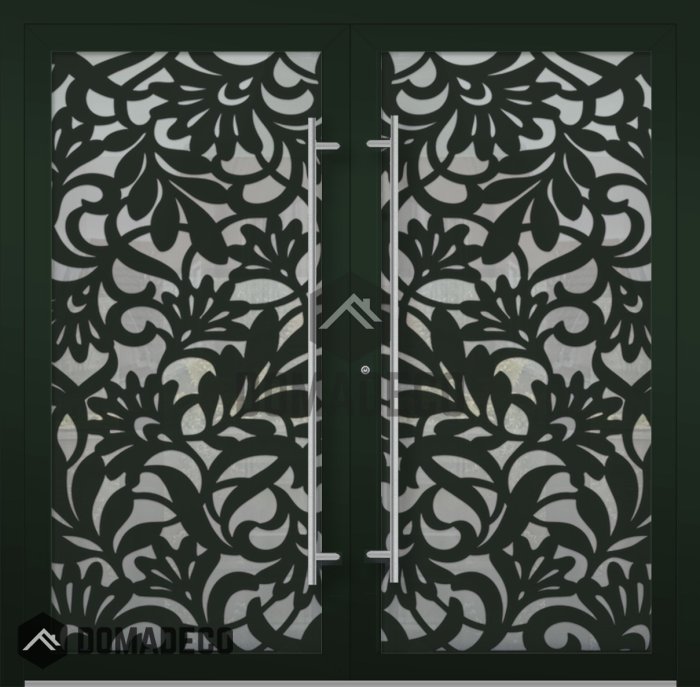

LIM G1 double - Double glass aluminium door with decorative panel

SKU
LIM G1 double
AVAILABLE
CA$17,700.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$17,700.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G1 double - Double glass aluminium door with decorative panel
Your Rating

The LIM G1 Double is an exquisite double glass aluminium door that perfectly combines contemporary design, superior craftsmanship, and innovative functionality to create an impressive entrance solution for modern homes and commercial spaces. Engineered with precision and attention to detail, this door offers a harmonious blend of aesthetic appeal, durability, security, and energy efficiency, making it an ideal choice for those seeking both style and performance in their entryways.

At the heart of the LIM G1 Double door is its robust aluminium frame, renowned for its strength, lightweight nature, and resistance to corrosion. The aluminium used is carefully treated to withstand harsh weather conditions, ensuring long-lasting durability and minimal maintenance requirements. Integrated thermal break technology enhances the door’s insulation capabilities by reducing heat transfer between indoor and outdoor environments. This feature not only helps maintain comfortable internal temperatures but also contributes to energy savings by improving the building’s overall thermal efficiency.

The door’s standout feature is its double glass panels, crafted from high-quality tempered or laminated safety glass that delivers exceptional strength and security. These panels are designed to maximize natural light penetration, brightening interiors and creating an inviting, open atmosphere. The double glazing provides excellent thermal and acoustic insulation, effectively reducing heat loss and external noise to enhance indoor comfort. A variety of glass options—including clear, frosted, tinted, or decorative glass—are available to customize the door’s appearance and privacy levels according to individual preferences and architectural needs.

Adding to its distinctive charm is the decorative panel incorporated within the LIM G1 Double door design. This panel introduces a unique artistic element that elevates the door’s visual appeal, transforming it into a focal point that complements and enhances the surrounding décor. The decorative panel can be tailored with diverse patterns, textures, and finishes, allowing homeowners and designers to express their personal style and create a truly bespoke entrance that reflects the character of the property.

Security is a paramount consideration in the design of the LIM G1 Double door. It features a multi-point locking mechanism that secures the door firmly at multiple points along the frame, providing enhanced protection against forced entry. Reinforced hinges and sturdy aluminium profiles further bolster the door’s resilience, ensuring reliable performance and peace of mind. Additionally, the door is compatible with modern smart locking systems, enabling convenient keyless access and remote operation for added security and ease of use.

The LIM G1 Double door is also designed for excellent weather resistance. High-quality seals and gaskets ensure airtightness, preventing drafts, water infiltration, and external noise pollution. The aluminium surfaces are finished with durable coatings that resist fading, scratching, and corrosion, preserving the door’s pristine appearance for years to come with minimal upkeep.

Installation of the LIM G1 Double door is handled by experienced professionals who ensure precise fitting and smooth operation, guaranteeing optimal performance and longevity. Its versatile design makes it suitable for a wide range of applications, from grand main entrances to stylish patio doors, seamlessly integrating with various architectural styles and enhancing the overall aesthetic and functionality of any building.

In summary, the LIM G1 Double double glass aluminium door with decorative panel is a premium entrance solution that masterfully combines modern elegance, robust security, energy efficiency, and customizable design. It is an excellent investment for anyone looking to enhance their property with a durable, stylish, and highly functional door that delivers lasting comfort, safety, and visual appeal.
