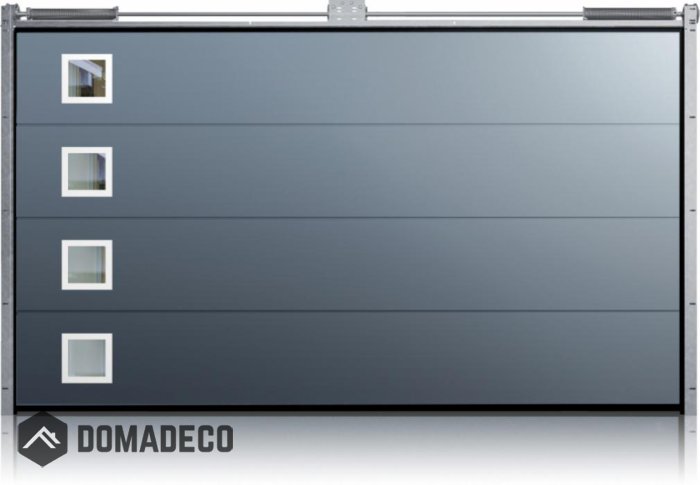

WIS E1R1 - sectional garage door with windows

SKU
WIS E1R1
Be the first to review this product
AVAILABLE
CA$5,675.00

The price includes TAX & shipping

Click here to select the configuration

Garage doors are manufactured after the order has been placed through the website.

Garage doors - production takes 4 weeks

Sectional doors is the most comfortable and convenient solution for your garage. Our doors are warm doors with the coefficient U similar to the one of the multi-chamber windows used for energy saving construction. Panels filled with polyurethane foam produced at our own factory and systems of seals contribute to this low coefficient.

Specification:

  • Torsion spring system designed for 20,000 cycles
  • Galvanized construction
  • stainless steel panel: 1.6" thickness filled with PUR polyurethane foam
  • Panel heat transfer coefficient Up=0.48 W/m2 K
  • Sound reduction index: Rc=23 dB
  • Rollers with bearings

The garage door set includes:
- Handle and key lock (manual gate)
- photocells (automatic gate)
- bolts,
- spring break protection,
- finger-crush protection panel
- rectangular windows 11.4" x 11.4"

Requied mounting dimensions of the garage door:

minimum headroom size : 4.7" (3 in the picture)
minimum left side size: 3.5" (2 in the picture)
minimum right side size: 3.5" (2 in the picture)
minimum backroom size: 105.3" (4 in the picture)

Requied hole in the wall [inch]:
width from 82.6" to 108.3"
height from: 78.7" to 118.1"

-
+
CA$5,675.00

The price includes TAX & shipping

Wish List
Email

WHAT IS THE REQUIRED DRIVEWAY LENGTH?

When in use, sectional and roller doors do not require any free space in front of the garage. The door blade rises vertically and hides under the ceiling or rolls up into a box . Both door types are recommended for garages opening directly onto the street and where there is limited space in front of the garage. leaf rises up and out in front of a building. Therefore, a car cannot be parked directly in front of the door, but at a distance of approximately 1.5 m. If the car is parked closer, the door cannot be opened. , on the other hand, opens like an ordinary door and requires free space in front of the garage allowing free movement of the door leaves. In designing a garage, it should be ensured that the entrance opening size is sufficient to allow comfortable entry for a car. A standard size garage door constitutes an economical solution, and is often available on the spot. If it is not possible to use a standard door in the existing opening, we recommend installing custom-made doors fitted precisely to the existing opening

Form and function

Sectional garage doors are manufactured using 40 mm panel garage doors. All our panels facility using state-of-the-art technological lines which ensure high quality and repeatability at each stage of the manufacturing process. High technical parameters and reliable corrosion protection are obtained thanks to the use of high grade, galvanized steel with paint or film coating. The stiff polyurethane foam core ensures optimum strength for the panels and improves their thermal insulation. Special solutions, such as the 5-layer sheet bending system ensures stable fastening of elements, which further increases the strength of our design.

YOU FEEL SECURE

Our up-and-over doors are safe to use, and certified in accordance with the requirements of European Standard EN 13241-1. The solutions applied in these doors guarantee safety for yourself and your family: an overload switch, photocells, spring casings, the shape of guides and guide rolls with bearings. A two-point, latch-type door bolting system makes certain that the door is locked.

AUTOMATION SYSTEMS

PROXIMA G1000L drive is a modern, safe and durable garage gate drive of unprecedented possibilities. It has a high driving torque of 1000 Nm, which ensures very quick lifting. The set includes one rail with emergency lock for a carriage and chain drive transmission.

ADDITIONAL PARAMETERS:

  • Self-locking, fully metallic worm gear in a metal housing, integrated with the engine
  • Hall Effect rotation sensor - control of gate position with sub-millimetre precision, also in case of power outage,
  • Precise overload sensor, reversing the gate movement,
  • Cooperation with a photocell that increases safety,
  • Nine-stage overload sensitivity adjustment,
  • PB wire input that controls the drive step by step,
  • LED type, illuminated for 3 min, ambient lighting,
  • Automatic closing of fully opened gate after 1-9 minutes,
  • Fully closed gate may require subsequent pressing of two remote buttons to be opened
  • Protection against accidental opening using a remote
  • Protection against overheating and overload, t Soft start and stop of the gate.
