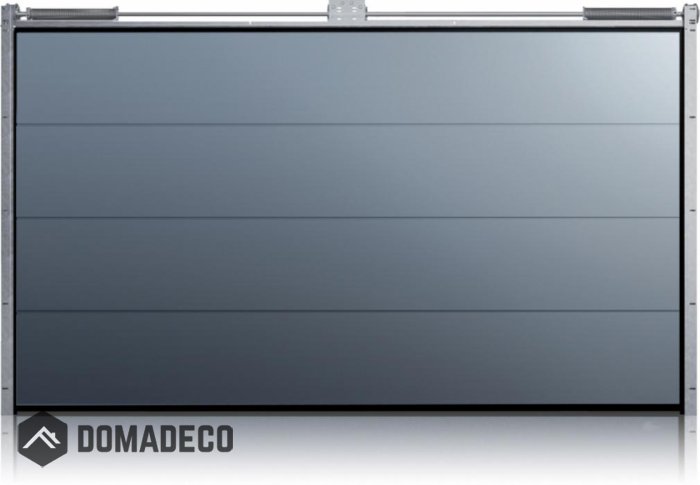

WIS E1 - sectional garage door without ribs

Garage doors are manufactured after the order has been placed through the website.

Garage doors - production takes 4 weeks

Sectional doors is the most comfortable and convenient solution for your garage. Our doors are warm doors with the coefficient U similar to the one of the multi-chamber windows used for energy saving construction. Panels filled with polyurethane foam produced at our own factory and systems of seals contribute to this low coefficient.

• Torsion spring system designed for 20,000 cycles
• Galvanized construction
• Panel: 1.6 inch
• Panel heat transfer coefficient R-value=12
• Sound reduction index: Rc=23 dB
• Rollers with bearings

Contruction:

1.6 inch thick steel panels with Freon-free polyurethane foam infill

requied mounting dimensions of the garage door:

minimum headroom size : 4.7 inch (3 in the picture)
minimum left side size: 4.3 inch (2 in the picture)
minimum right side size: 4.3 inch (2 in the picture)
minimum backroom size: 157.5 inch (4 in the picture)

Requied hole in the wall [inch]:
width from 88.6" to 108.3"
height from: 78" to 118.1""
