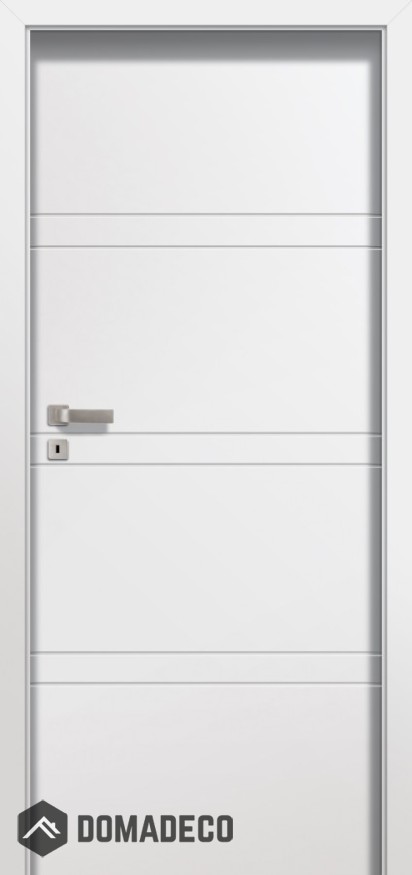

Plano SUB - leaf interior single door

SKU
Plano SUB
In stock
CA$800.00
Click here to select the configuration

The door is made of a wooden rail and stile set topped with two HDF boards covered with ecological acrylic paint (RAL and NCS colour palette).
The core consists of a solid chipboard.
The door slab is decorated with horizontal milling.

STANDARD EQUIPMENT

  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: T type

Standard door slab size [inch]:
23.6"x78.7"
27.6"x78.7"
31.5"x78.7"
35.4"x78.7"

Required Installation hole width [inch]:
23.6"x78.7" - 26.6" min installation hole width / 30.9" - max installation hole width
27.6"x78.7" - 30.6" min installation hole width / 34.9" - max installation hole width
31.5"x78.7" - 34.5" min installation hole width / 38.8" - max installation hole width
35.4"x78.7" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100”
  • Non-standard door shortening (maximum door shortening available: up to 3.9") (shortened from the top)
  • Door lower by 2 inch or 3.9 inch
  • Door higher by 2 inch or 3.9 inch
  • Door higher by 5.9 inch or 7.9 inch
-
+
