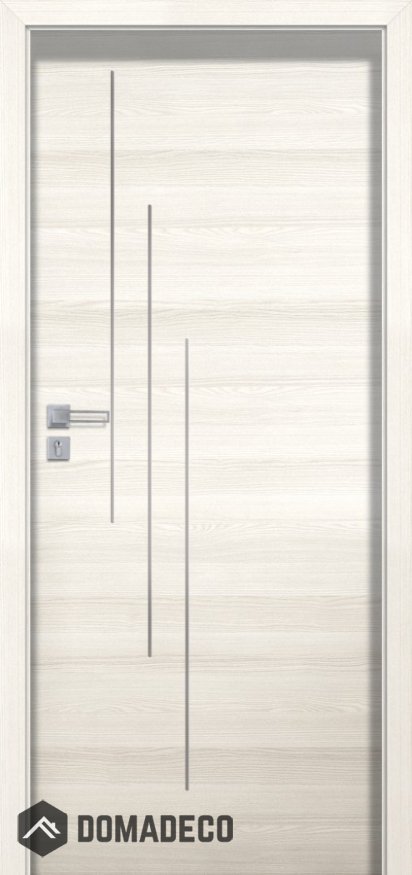

Plano SON - solid inside door

SKU
Plano SON
In stock
CA$930.00
Click here to select the configuration

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with LAMISTONE CPL, SILKSTONE surface finish.
The core consists of a solid chipboard.
Aluminum decorative strips on the leaf surface.

STANDARD EQUIPMENT

  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: K type

Standard door slab size [inch]:
23.6"x78.7"
27.6"x78.7"
31.5"x78.7"
35.4"x78.7"

Required Installation hole width [inch]:
23.6"x78.7" - 26.6" min installation hole width / 30.9" - max installation hole width
27.6"x78.7" - 30.6" min installation hole width / 34.9" - max installation hole width
31.5"x78.7" - 34.5" min installation hole width / 38.8" - max installation hole width
35.4"x78.7" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

COLOUR:

240 bleached elm V, 241 sandy elm V, 242 gray elm V, 254 Royal anthracite H, 255 Polish ash tree H, 256 bright nougat V, 257 bright nougat H, 258 white, 260 white oak, 263 premium walnut, 265 wenge, 267 bleached elm H, 268 sandy elm H, 269 gray elm H, 276 polish oak, 288 royal maple, 292 royal chestnut, 293 royal anthracite, 294 royal ash tree, 295 royal merbau, 296 polish ash tree, 297 royal nougat

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100” (glazing decoration as in “90”)
  • Non-standard door shortening (maximum door shortening available: up to 3.9")
    (shortened from the top with the maximum door slab shortening)
  • Door lower by 2" or 3.9"
  • Door higher by 2" or 3.9"
  • Door higher by 5.9" or 7.9"
  • Ventilation trim
-
+
