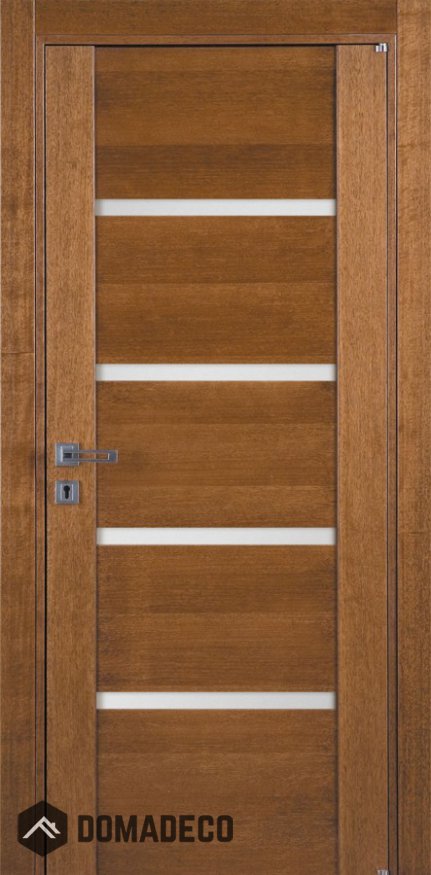

Plano PASS - solid interior door

SKU
Plano PASS
In stock
CA$1,050.00
Click here to select the configuration

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with natural veneer or LAMISTONE CPL surface finish.

STANDARD EQUIPMENT

  • White/brown matt glass, 0.2" thick
  • Magnetic mortise lock, key-operated, for a cylinder or a bathroom lock
  • Hinges: concealed type for the non-rebated system (“60”-“80” – 2 units; “90”– 3 units)
  • The door closer is not applicable

Standard door slab size [inch]:
23.6"x78.7"
27.6"x78.7"
31.5"x78.7"
35.4"x78.7"

Required Installation hole width [inch]:
23.6"x78.7" - 27.2" min installation hole width / 31.2" - max installation hole width
27.6"x78.7" - 30.6" min installation hole width / 35.1" - max installation hole width
31.5"x78.7" - 35.0" min installation hole width / 39.1" - max installation hole width
35.4"x78.7" - 39.0" min installation hole width / 43.2" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 81.7"
max installation hole height: 84.0"

Required thickness of your wall [inch]
min 3"
max 11.8"

COLOUR:

258 white, 260 white oak, 263 premium walnut, 265 wenge, 289 grey, 312 limba, 334 european oak, 340 ebony, 376 steel oak, 377 platinum oak, 404 dark walnut, 405 light walnut, 421 cappucino, 422 mokka, 424 teak, 531 anthracite

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Non-standard door shortening available (up to 2.4" maximum):
    door shorter by 0.8" (the lower element of the door has a non-standard height)
    door shorter by 1.2"-2.4" (the upper and the lower element of the door has a non-standard height)
  • Door lower by 2.2"
  • Ventilation trim
-
+
