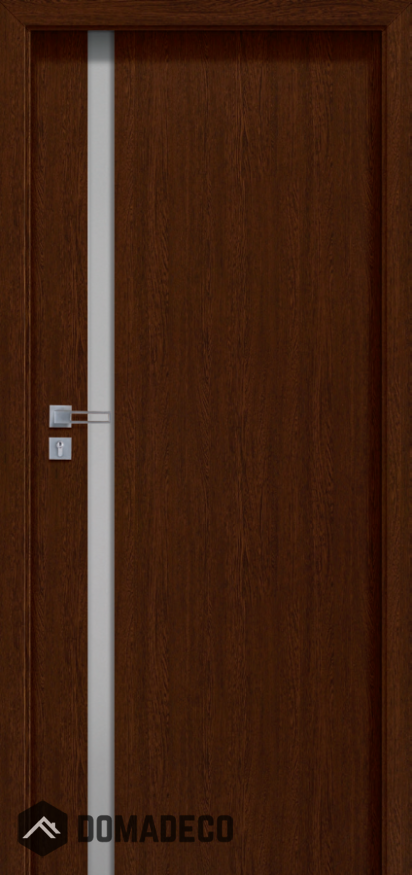

Plano EST LUX - contemporary inside door

The door is constructed of a wooden rail and stile set topped with two HDF boards covered with natural veneer. The infill consists of a solid chipboard. A01, A02, A03 models are equipped with a white matt tempered glass, 0.2" thick. The upper edge of the door slab has a rebate in rebated system.

STANDARD EQUIPMENT

• white matt tempered glass, thickness: 0.2" thick (A01 – 2.1", A02 – 8.1", A03 – 10.9")
• single-point (rebated system) or magnetic (non-rebated system) mortise lock, key-operated, for a cylinder or a bathroom lock
• hinges: T type

Standard door slab size [inch]:
24.4" x 79.5"
28.3" x 79.5"
32.3" x 79.5"
36.2" x 79.5"

Required Installation hole width [inch]:
24.4" x 79.5" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3" x 79.5" - 30.6" min installation hole width / 34.9" - max installation hole width
32.3" x 79.5" - 34.5" min installation hole width / 38.8" - max installation hole width
36.2" x 79.5" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

COLOUR:

311 light oak, 312 limba, 323 rustic oak, 334 european oak, 340 ebony, 351 marrone, 371 truffle oak, 372 coffe oak, 376 steel oak, 377 platinum oak, 380 natural ash, 381 moreno ash, 382 rubio ash, 383 negro ash, 404 dark walnut, 405 light walnut, 421 cappucino, 422 mokka, 424 teak

ADDITIONAL EQUIPMENT (at an extra charge)

• size „100”
• A01, A02, A03 versions – door lower by 2.4"
• A01, A02, A03 versions – door higher by 3.9"
• A01, A02, A03 versions – door higher by 7.9"
• ventilation trim (not available in A02 and A03 models)
