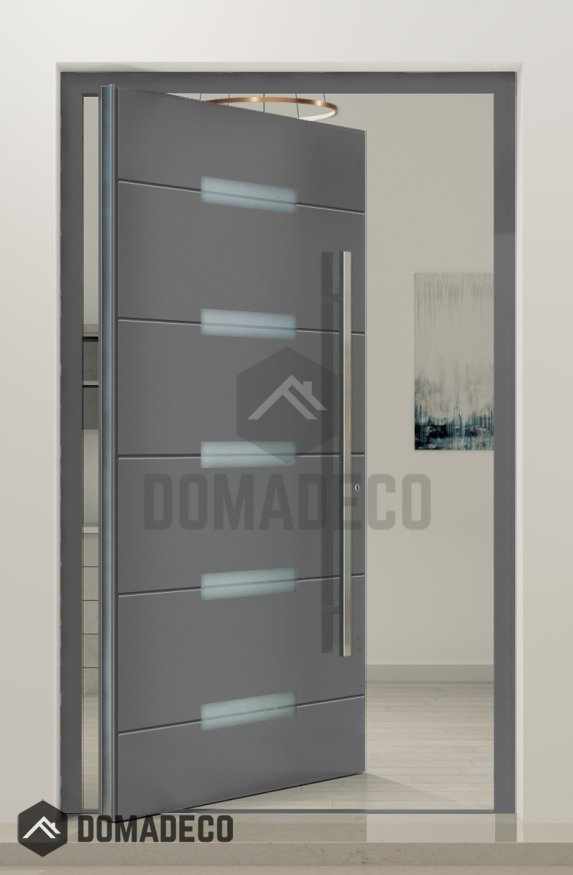

PIVOT Werset - premium quality aluminum pivot door

SKU
PIVOT Werset
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM Werset

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Integrated door closer
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Werset - premium quality aluminum pivot door
Your Rating

The PIVOT Werset premium quality aluminum pivot door represents the pinnacle of contemporary entryway design, combining cutting-edge engineering with sophisticated aesthetics to create a truly impressive and functional architectural feature. Engineered for homeowners and designers who seek to make a bold statement, this door redefines modern elegance through its innovative pivot mechanism, sleek aluminum construction, and superior craftsmanship, offering an entrance solution that is as striking as it is durable and secure.

At the core of the PIVOT Werset door is its robust aluminum framework, which delivers exceptional strength while maintaining a lightweight and streamlined profile. Aluminum’s inherent resistance to corrosion, warping, and environmental wear ensures that the door withstands the test of time, even in the most demanding climates. This durability, paired with advanced powder-coated finishes, protects the door’s surface from fading, scratching, and weather damage, preserving its pristine appearance with minimal maintenance required.

The hallmark of the PIVOT Werset door is its innovative pivot hinge system, which allows the door to rotate smoothly around a central or offset pivot point rather than traditional side hinges. This design creates a dramatic, expansive opening that enhances accessibility and flow while providing a visually captivating focal point for any modern facade. The pivot mechanism is engineered for effortless operation and long-lasting reliability, supporting even large, heavy door panels without compromising stability or security.

Aesthetic versatility is another defining feature of the PIVOT Werset door. Its minimalist design, characterized by clean lines and expansive glass or solid aluminum panels, integrates seamlessly with a variety of architectural styles, from ultra-modern urban residences to sophisticated contemporary homes. The door can be customized with a wide range of colors, finishes, and glazing options, including insulated double or triple-pane glass with Low-E coatings, frosted or tinted glass for privacy, and decorative patterns that add personalized flair. This flexibility allows homeowners and architects to tailor the door to their unique design vision and functional requirements.

Performance is paramount with the PIVOT Werset door. Equipped with advanced thermal break technology, the aluminum frame significantly reduces heat transfer, enhancing energy efficiency and helping to maintain comfortable indoor temperatures year-round. High-quality weather seals ensure protection against drafts, water infiltration, and noise pollution, contributing to a peaceful and energy-conscious living environment. Security is reinforced through multi-point locking systems and reinforced hardware specifically designed to complement the pivot mechanism, providing robust resistance against forced entry without sacrificing the door’s sleek appearance.

Maintenance of the PIVOT Werset door is straightforward and hassle-free. The durable powder-coated aluminum finish resists corrosion and staining, requiring only routine cleaning with mild soap and water to maintain its elegance. The precision-engineered pivot hardware is designed for smooth, reliable operation over many years, minimizing the need for repairs or adjustments.

In summary, the PIVOT Werset premium quality aluminum pivot door is a sophisticated blend of form and function that elevates any home’s entryway to new heights of design excellence and practical performance. Its innovative pivot technology, combined with durable materials and customizable aesthetics, delivers a stunning and secure entrance that enhances architectural beauty while meeting the highest standards of energy efficiency and security. For those seeking a distinctive, high-end door tha
