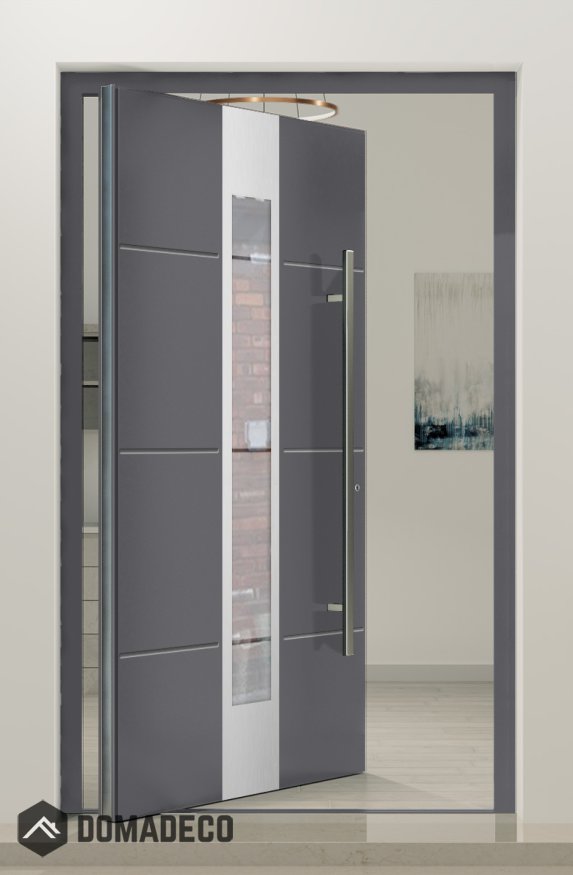

PIVOT W322 - aluminum exterior anti-burglary pivot door

SKU
PIVOT W322
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.2" to 78"
Height from: 78.7" to 116"

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT W322 - aluminum exterior anti-burglary pivot door
Your Rating

The PIVOT W322 aluminum exterior anti-burglary pivot door is a state-of-the-art entrance solution meticulously engineered to deliver exceptional security, durability, and modern design for exterior applications. Designed to meet the highest standards of safety and performance, this pivot door system is ideal for residential, commercial, and institutional buildings where robust protection against burglary is essential without sacrificing architectural elegance and ease of use.

At its core, the PIVOT W322 features an innovative pivot mechanism that allows the door to swing smoothly around a central vertical axis rather than traditional side hinges. This unique pivot design enables the installation of larger and heavier door panels, creating a bold visual statement while minimizing vulnerable hinge points commonly exploited in forced entry attempts. The precision-engineered pivot hardware ensures balanced and fluid motion, providing effortless operation regardless of the door’s size or weight.

Constructed from premium-grade aluminum, the PIVOT W322 offers outstanding strength combined with superior resistance to corrosion, weather extremes, and UV damage, making it particularly suited for demanding outdoor environments. Aluminum’s lightweight yet sturdy characteristics enable the door to support reinforced security glazing, including laminated or toughened glass options that enhance impact resistance and prevent unauthorized access. The slim, contemporary aluminum frame maximizes glass area, allowing abundant natural light to flow into interior spaces while maintaining uncompromising security.

Security is paramount in the design of the PIVOT W322. It incorporates a multi-point locking system that securely fastens the door at several points along the frame, significantly improving resistance to forced entry. Reinforced aluminum profiles and tamper-proof pivot hardware add additional layers of protection, effectively deterring common burglary techniques such as prying, drilling, and lifting. When combined with high-performance security glass, this door system becomes a formidable barrier that prioritizes occupant safety and peace of mind.

In addition to its security features, the PIVOT W322 excels in energy efficiency. The door’s aluminum profiles incorporate advanced thermal breaks that reduce heat transfer, while high-quality weather seals minimize air infiltration. These features help maintain consistent indoor temperatures and reduce energy consumption, contributing to a comfortable and sustainable living or working environment. The door also supports double or triple-glazed insulated glass units, further enhancing thermal insulation and soundproofing capabilities.

Customization is a key strength of the PIVOT W322. Designers and architects can select from a wide array of powder-coated finishes and color options to perfectly complement any building style or color palette. A variety of handle designs and hardware finishes are also available, allowing for tailored aesthetics and functionality that meet specific project requirements. This flexibility ensures that the door integrates seamlessly into both classic and contemporary architectural settings.

Maintenance of the PIVOT W322 aluminum exterior anti-burglary pivot door is straightforward and cost-effective. Thanks to the corrosion-resistant aluminum construction and durable finishes, routine cleaning is typically sufficient to keep the door looking pristine and operating smoothly. The high-quality hardware components are built for longevity, minimizing the need for repairs and ensuring reliable performance for years to come.

In summary, the PIVOT W322 aluminum exterior anti-burglary pivot door represents a perfect fusion of advanced security technology, durable construction, energy efficiency, and sophisticated design. Its innovative pivot system, reinforced materials, and comprehensive locking mechanisms provide superior protection against burglary, while its sleek aluminum frame and customizable options enhance the architectural appeal of any exterior entrance. For those seeking a secure, stylish, and high-performance pivot door, the PIVOT W322 is an outstanding choice that delivers lasting value and peace of mind.
