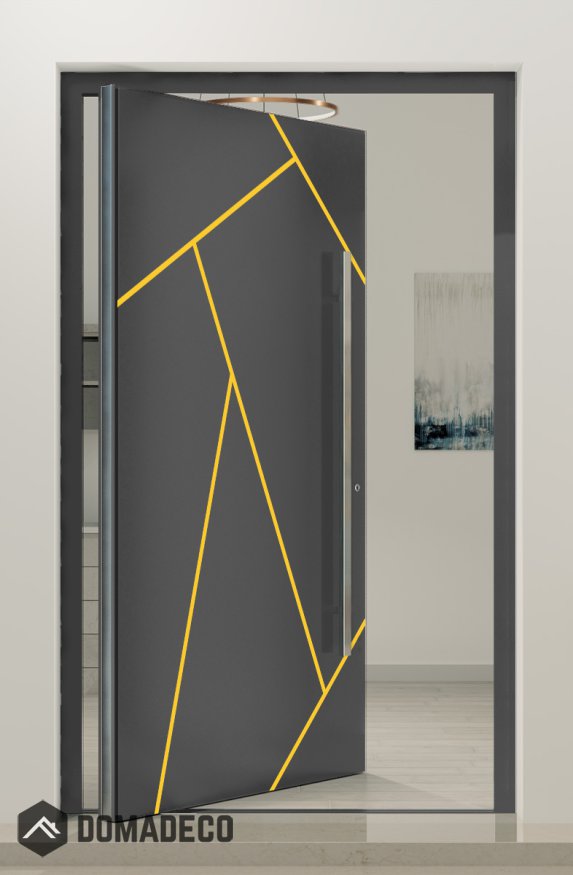

PIVOT V37 - stylish aluminium pivot front door with stripes

SKU
PIVOT V37
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$14,390.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM V37

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$14,390.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT V37 - stylish aluminium pivot front door with stripes
Your Rating

The PIVOT V37 is a premium stylish aluminum pivot front door that combines cutting-edge design with superior craftsmanship to create a truly remarkable entrance solution. Engineered to meet the demands of contemporary architecture, this door features a sleek aluminum frame and a unique pivot mechanism that allows it to swing smoothly around a central vertical axis, offering a modern alternative to traditional hinged doors. This innovative pivot system not only enhances the door’s visual appeal but also supports larger and heavier panels, enabling homeowners and designers to explore bold, expansive entrances without compromising on functionality or ease of use.

What sets the PIVOT V37 apart is its distinctive striped detailing, which adds an element of sophistication and dynamic texture to the door’s surface. These stripes are thoughtfully integrated into the design, creating subtle yet striking visual lines that enhance the overall architectural character of the entrance. Available in a variety of widths, finishes, and color options, the stripes can be customized to harmonize perfectly with the building’s exterior and the owner’s personal style preferences. This attention to detail ensures that the PIVOT V37 is not just a door, but a statement piece that elevates the aesthetic impact of any façade.

Constructed from high-quality aluminum, the PIVOT V37 offers exceptional durability and resilience. Aluminum’s inherent resistance to corrosion and environmental wear makes this door ideal for external use, ensuring it maintains its sleek appearance and structural integrity over time with minimal maintenance. The surface is finished with a premium powder coating that provides additional protection against fading, scratches, and harsh weather conditions, while also allowing for a broad spectrum of color customization. This combination of strength and style guarantees a door that is built to last while complementing modern architectural trends.

In addition to its striking design, the PIVOT V37 is engineered for outstanding performance and security. The robust aluminum frame accommodates advanced locking systems and secure hardware, providing peace of mind without sacrificing the door’s minimalist elegance. The door can also be fitted with high-performance glazing options, including insulated and laminated glass panels, which can be integrated alongside the striped accents to enhance natural light entry while maintaining privacy and energy efficiency. Thermal breaks and weather seals are incorporated into the design to optimize insulation, reduce heat loss, and prevent drafts, making the PIVOT V37 an energy-conscious choice for any property.

The versatility of the PIVOT V37 extends beyond aesthetics and performance. It is available in a range of sizes to suit diverse architectural requirements, from residential entrances to commercial buildings. The pivot hardware can be tailored to specific operational preferences, ensuring smooth and reliable movement over the door’s lifespan. This adaptability makes the PIVOT V37 a highly practical option for designers and builders looking to balance innovation, style, and functionality.

Maintenance of the PIVOT V37 is straightforward and hassle-free. Thanks to its corrosion-resistant aluminum construction and durable powder-coated finish, the door requires only periodic cleaning with mild detergents to retain its pristine condition. The pivot mechanism is designed for longevity and ease of use, minimizing the need for frequent adjustments or repairs.

In summary, the PIVOT V37 stylish aluminum pivot front door with stripes is an exceptional architectural feature that blends modern design, robust materials, and advanced functionality. Its elegant striped detailing, innovative pivot operation, and customizable options make it a standout choice for those seeking to create a bold and welcoming entrance. Whether for a contemporary home or a sophisticated commercial space, the PIVOT V37 enhances curb appeal, security, and energy efficiency, making it a smart investment in both style and performance.
