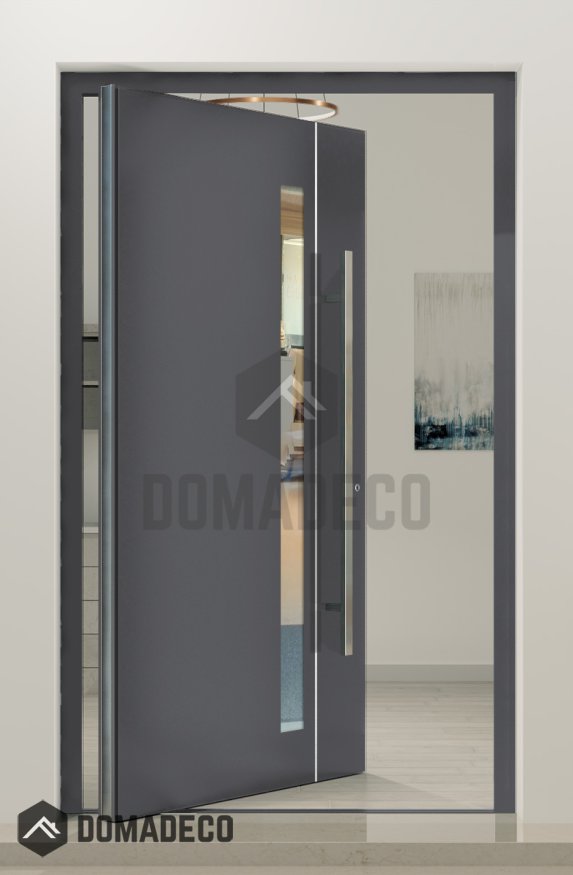

PIVOT Tiret - anti-burglary aluminium pivot entrance door

SKU
PIVOT Tiret
Rating:
100 % of 100
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM Tiret

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side

Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Tiret - anti-burglary aluminium pivot entrance door
Your Rating

The PIVOT Tiret is a premium anti-burglary aluminium pivot entrance door designed to deliver unparalleled security, durability, and contemporary style. Crafted with precision and engineered using high-grade aluminium materials, this door offers a robust defense against forced entry while elevating the aesthetic appeal of any residential or commercial property. Its innovative pivot mechanism sets it apart from conventional hinged doors, providing smooth and effortless operation, even with large and heavy door panels, making it a perfect choice for modern architectural designs that demand both functionality and elegance.

At the core of the PIVOT Tiret’s design is its advanced pivot system, which allows the door to rotate around a vertical axis rather than swinging on side hinges. This unique feature not only creates a striking visual impact but also improves the door’s structural stability. The pivot design supports wider and taller door dimensions, enabling grand entryways that make a bold architectural statement. The smooth pivot action ensures ease of use, while the door’s balanced construction guarantees long-lasting performance with minimal maintenance.

Security is paramount in the PIVOT Tiret’s construction. Reinforced aluminium profiles form a solid framework that resists bending, impact, and tampering. The door is equipped with sophisticated multi-point locking systems that engage at multiple points along the frame, significantly enhancing burglary resistance. Additionally, reinforced locking pins and anti-lift mechanisms prevent forced removal or lifting of the door from its frame. These security features comply with and often exceed industry standards for anti-burglary doors, providing peace of mind to property owners. For added convenience and security, the PIVOT Tiret can be integrated with smart locking technologies, allowing keyless entry and remote access control.

The aluminium surface of the PIVOT Tiret is treated with a high-quality powder coating that offers exceptional resistance to corrosion, UV rays, and harsh weather conditions. This durable finish ensures the door maintains its sleek, modern appearance over time with minimal upkeep. Available in a wide range of colors and finishes, the door can be customized to complement any building exterior, from minimalist urban facades to elegant contemporary homes. For enhanced aesthetics and natural light, the door can also feature optional glazing panels made from laminated or tempered safety glass, which provide additional insulation and security without sacrificing style.

Beyond security and aesthetics, the PIVOT Tiret emphasizes user comfort and energy efficiency. The pivot mechanism allows for smooth, quiet operation even with large door sizes, facilitating easy access and creating an inviting entrance experience. The door’s thermal break technology and tight seals improve insulation, helping to maintain comfortable indoor temperatures and reduce energy costs. Acoustic insulation properties also contribute to a quieter indoor environment by minimizing external noise infiltration.

Installation of the PIVOT Tiret is designed to be straightforward and precise, ensuring a perfect fit and seamless integration with various architectural styles. Whether for new construction or retrofit projects, the door’s modular components and adjustable pivot hardware simplify the fitting process while maintaining structural integrity and performance.

In summary, the PIVOT Tiret anti-burglary aluminium pivot entrance door is an exceptional solution for those seeking a high-security entrance that combines innovative pivot technology, superior materials, and elegant design. It offers unmatched protection against burglary, outstanding durability, customizable aesthetics, and user-friendly operation—making it an ideal choice for enhancing both the safety and curb appeal of any property. With the PIVOT Tiret, you invest in a door that truly embodies strength, style, and sophistication.
