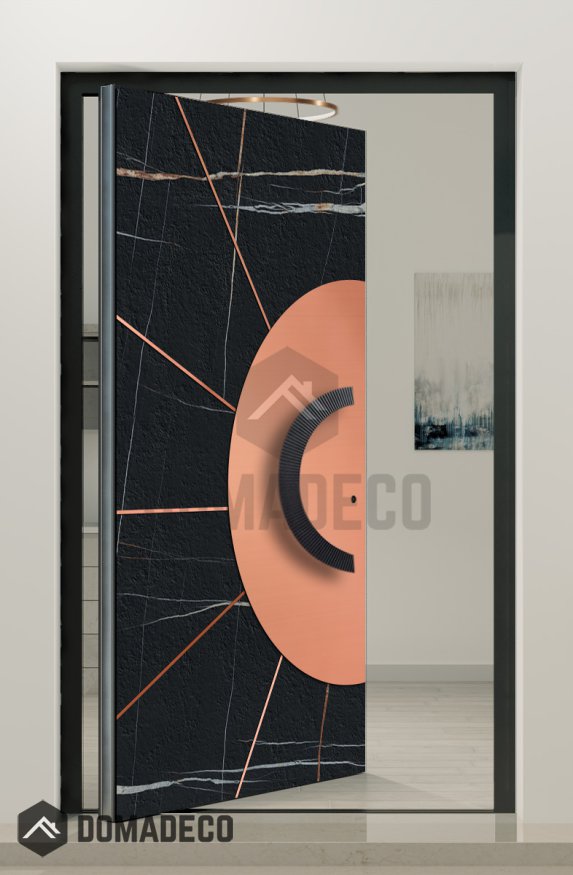

PIVOT Sahara - aluminum pivot door covered with Sahara Noir sintered quartz and copper sheet

SKU
PIVOT Sahara
Be the first to review this product
AVAILABLE
CA$17,420.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View LIM Sahara

The door panels made of sintered quartz. Although quartz sinter does not occur in the natural environment, the technology of obtaining it consists in mixing and pressing, among others, shale clays, quartz sand and granite rocks. The mixture prepared in this way is hardened by firing. Door panels made of sintered quartz have an industrial, urban style, at the same time referring to exclusive and elegant interiors.

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$17,420.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Sahara - aluminum pivot door covered with Sahara Noir sintered quartz and copper sheet
Your Rating

The PIVOT Sahara aluminum pivot door is a stunning embodiment of modern architectural innovation and refined craftsmanship, designed to make a bold statement while delivering exceptional durability and functionality. This door masterfully combines a strong aluminum core with two luxurious surface materials: the deep, elegant Sahara Noir sintered quartz and the warm, radiant copper sheet. Together, these elements create a captivating interplay of textures and tones that transform any entrance into a sophisticated focal point.

At its foundation, the PIVOT Sahara features a precision-engineered aluminum frame that offers remarkable strength and stability without compromising on weight. Aluminum’s lightweight nature facilitates smooth operation and easy installation, while its corrosion resistance ensures long-lasting performance in a variety of climates. The door operates on an advanced pivot hinge system, allowing it to rotate effortlessly on a central axis. This mechanism not only provides a fluid and dramatic opening experience but also supports larger and heavier door panels with excellent balance and reliability, making it ideal for grand entryways and contemporary spaces.

The Sahara Noir sintered quartz surface is a defining characteristic of this door, prized for its intense black coloration and subtle, natural veining that mimics the luxurious appearance of exotic stone. Sintered quartz is renowned for its exceptional hardness, scratch resistance, and low porosity, which together contribute to a surface that is both visually striking and highly resilient. This material withstands exposure to UV rays, weathering, and everyday wear, ensuring that the door’s pristine appearance endures over time, even in challenging environmental conditions.

Complementing the rich sintered quartz is the copper sheet overlay, which introduces a warm, luminous contrast that imbues the door with a unique sense of depth and character. Copper’s natural metallic sheen and its ability to develop a distinctive patina over time add an organic, evolving beauty to the door’s design. This combination of copper and quartz creates a harmonious balance between modern sophistication and timeless elegance, making the PIVOT Sahara a true work of art that enhances any architectural style, from minimalist to industrial to contemporary luxury.

In addition to its remarkable aesthetics, the PIVOT Sahara is engineered for superior security and performance. The pivot hinge system offers smooth, effortless movement, while reinforced locking hardware provides robust protection against intrusion. Thoughtfully integrated weather seals and precision fabrication contribute to excellent thermal insulation and soundproofing, enhancing both comfort and energy efficiency within the building.

Customization options are extensive, allowing clients to tailor the door’s dimensions, finish details, and hardware to perfectly complement their design vision and functional needs. Whether featured as the centerpiece of a private residence, a sophisticated commercial lobby, or a boutique hotel entrance, the PIVOT Sahara delivers unparalleled style, presence, and practicality.

Sustainability is also a key consideration in the creation of the PIVOT Sahara. Aluminum is fully recyclable, and both the sintered quartz and copper are sourced and treated with environmentally responsible processes. This commitment to eco-friendly materials and manufacturing aligns the door with contemporary green building practices, making it an excellent choice for projects that prioritize sustainability without sacrificing luxury or innovation.

In summary, the PIVOT Sahara aluminum pivot door, adorned with Sahara Noir sintered quartz and copper sheet, is a remarkable fusion of strength, artistry, and cutting-edge technology. Its unique combination of premium materials and sophisticated pivot design offers a grand, elegant entrance solution that stands the test of time. For those seeking a door that exemplifies luxury, durability, and architectural distinction, the PIVOT Sahara redefines what a modern pivot door can be.
