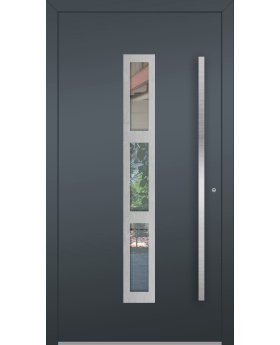

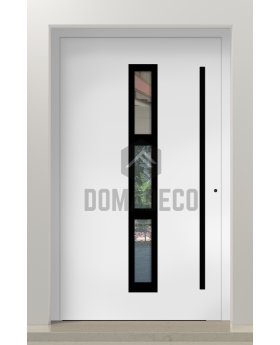

PIVOT Orin - single aluminum pivot door

SKU
PIVOT Orin
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM Orin

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Integrated door closer
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Orin - single aluminum pivot door
Your Rating

The PIVOT Orin single aluminum pivot door is a striking embodiment of modern architectural innovation and refined craftsmanship, designed to make a bold statement while delivering exceptional performance. This premium pivot door seamlessly blends contemporary aesthetics with robust functionality, making it an ideal choice for homeowners and designers seeking a sophisticated, minimalist entrance that enhances both style and practicality.

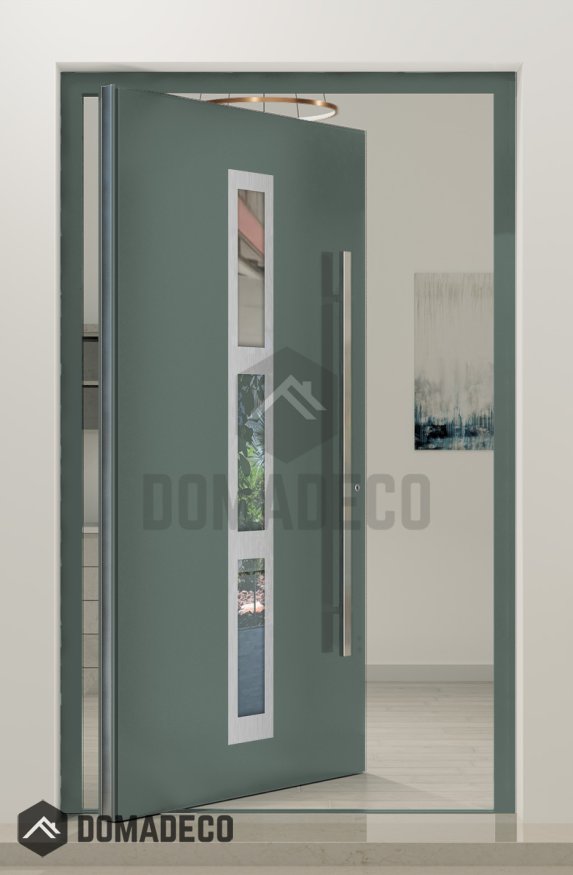

With its unique pivot mechanism, the PIVOT Orin door offers a smooth and dramatic opening experience that differs from traditional hinged doors. The pivot system allows the door to rotate on a fixed axis, creating an elegant and fluid motion that adds a dynamic architectural feature to any space. This design not only maximizes the functionality of the entrance but also enables the creation of wider and taller door panels, offering greater flexibility in scale and proportion to suit modern homes and commercial buildings alike.

Constructed from high-grade aluminum, the PIVOT Orin door is engineered for durability and resilience. Aluminum’s lightweight yet strong properties ensure effortless operation while providing exceptional resistance against rust, corrosion, and weathering. This ensures that the door maintains its flawless appearance and structural integrity even in the most challenging climates. The sleek aluminum frame complements the door’s minimalist design, delivering clean lines and a refined finish that elevates the overall architectural appeal.

The PIVOT Orin door is designed with security and performance in mind. Its robust frame and precision-engineered pivot hardware provide stability and strength, ensuring reliable operation and enhanced protection against forced entry. Advanced locking mechanisms can be integrated seamlessly to maintain the door’s streamlined look without compromising safety. Additionally, high-quality weather seals and thermal breaks are incorporated to improve insulation, reducing heat transfer and preventing drafts, which contributes to increased energy efficiency and comfort within the home.

Energy efficiency is a standout feature of the PIVOT Orin door. The inclusion of thermal break technology within the aluminum frame significantly reduces thermal conductivity, helping to maintain consistent indoor temperatures and lower energy costs. This makes the door an environmentally responsible choice that aligns with sustainable building practices without sacrificing style or functionality.

Customization options for the PIVOT Orin door are extensive, allowing for a personalized entrance that reflects individual tastes and architectural requirements. Available in a wide range of colors, finishes, and textures, including matte, metallic, and woodgrain effects, the door can be tailored to complement any design vision. Optional glazing panels, integrated sidelights, or decorative hardware can further enhance the door’s visual impact and functionality.

Ease of maintenance is another advantage of the PIVOT Orin single aluminum pivot door. The premium powder-coated finish resists fading, scratching, and corrosion, ensuring the door remains visually stunning with minimal upkeep. Routine cleaning with mild detergents is sufficient to preserve its sleek appearance for years to come.

In summary, the PIVOT Orin single aluminum pivot door is a cutting-edge fusion of design, durability, and innovation. It offers a distinctive and elegant entrance solution that elevates the architectural character of any space while providing superior security, energy efficiency, and ease of use. For those seeking a modern pivot door that embodies sophistication and performance, the PIVOT Orin stands as an exceptional choice that transforms the way you experience your entryway.
