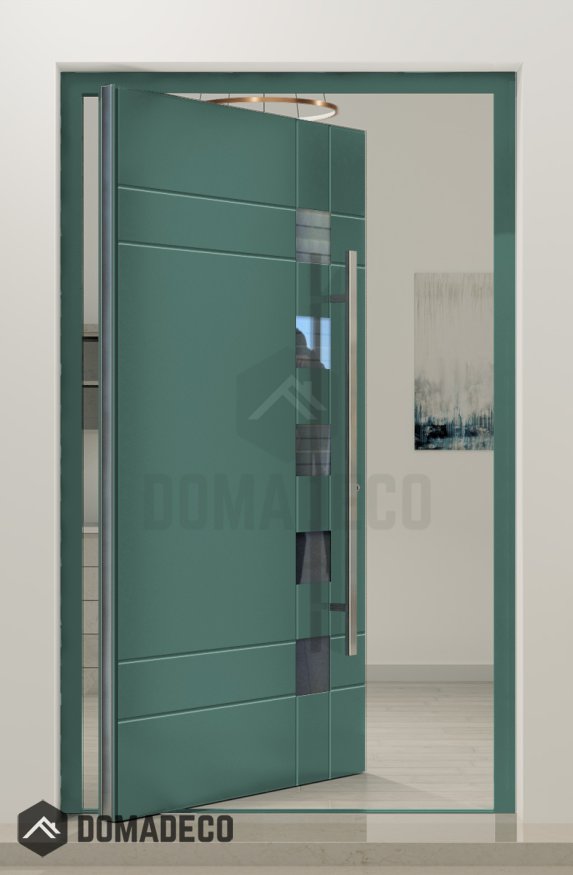

PIVOT C23 - slim frame aluminum pivot front door with five glass

SKU
PIVOT C23
Be the first to review this product
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C23

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C23 - slim frame aluminum pivot front door with five glass
Your Rating

The PIVOT C23 is a premium slim frame aluminum pivot front door meticulously engineered to combine cutting-edge design with exceptional functionality. This door is an ideal choice for contemporary architectural projects, offering a sleek, minimalist aesthetic that enhances both residential and commercial entrances. With its innovative pivot mechanism and elegant integration of five glass panels, the PIVOT C23 creates a striking visual statement while providing outstanding durability, security, and energy efficiency.

At the core of the PIVOT C23’s appeal is its sophisticated pivot system. Unlike traditional hinged doors that swing open from the side, this door rotates smoothly around a centrally positioned vertical axis. This unique mechanism not only allows for impressive door sizes and wider openings but also contributes to a clean, uncluttered exterior appearance. The pivot hardware is precision-engineered to ensure long-lasting stability and effortless operation, even with frequent use, making it a practical yet stylish solution for high-traffic entrances.

Constructed from high-grade aluminum, the door’s slim frame is both lightweight and robust, offering excellent resistance to corrosion, warping, and damage from extreme weather conditions. The narrow profile of the frame maximizes the glass surface area, enabling an abundance of natural light to permeate indoor spaces. This design fosters a seamless connection between interior and exterior environments, enhancing the sense of openness and modern sophistication in any setting.

The PIVOT C23 features five beautifully crafted glass panels that are expertly integrated into its slim frame design. These panels utilize advanced insulated, tempered glass technology to provide superior thermal insulation, soundproofing, and security. The multi-panel layout adds architectural depth and rhythm to the door’s overall design, creating an alluring interplay of transparency and structure. Moreover, the glass panels can be customized with various finishes—including frosted, tinted, or textured options—to meet privacy requirements without compromising the door’s contemporary elegance.

Security is a paramount consideration in the PIVOT C23 design. The door is equipped with reinforced pivot hinges and sophisticated locking systems that provide robust protection against forced entry. The tempered glass panels are engineered to resist shattering, further enhancing the door’s safety credentials. This combination of strong materials and secure hardware ensures peace of mind without sacrificing style or openness.

Energy efficiency is another standout feature of the PIVOT C23. The insulated glazing combined with airtight seals around the slim aluminum frame minimizes heat transfer, helping maintain comfortable indoor temperatures and reducing energy consumption. This makes the door an environmentally conscious choice that supports sustainable building practices and contributes to long-term cost savings.

Installation of the PIVOT C23 is designed to be straightforward and adaptable, with customizable size options to suit a wide range of architectural requirements. Its minimalist design language makes it a versatile addition to various property styles, from ultra-modern homes to sleek commercial buildings. The door’s smooth pivot action and slim profile work harmoniously to create an impressive entrance that elevates the overall curb appeal.

Additionally, the PIVOT C23 offers extensive customization possibilities. Clients can choose from a diverse palette of frame colors and finishes, as well as select hardware styles that complement the door’s refined appearance. This level of personalization ensures that the door can be tailored to perfectly reflect individual tastes and the unique character of each property.

In summary, the PIVOT C23 slim frame aluminum pivot front door with five glass panels represents a masterful blend of innovative engineering, premium materials, and contemporary design. It delivers a visually stunning, light-filled entrance that combines smooth pivot operation with exceptional security, durability, and energy performance. For those seeking a front door that makes a bold architectural statement while providing practical benefits, the PIVOT C23 is an outstanding choice that transforms any entryway into a sophisticated showcase of modern elegance.
