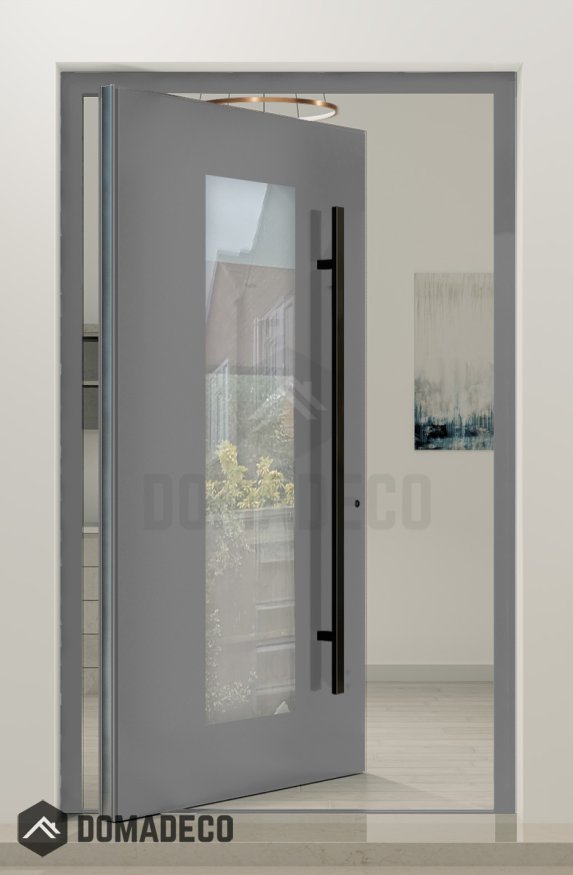

PIVOT C16 - insulated exterior aluminum pivot door with window

SKU
PIVOT C16
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

You can order this door model in a bigger size. View LIM C16



Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C16 - insulated exterior aluminum pivot door with window
Your Rating

The PIVOT C16 is a premium insulated exterior aluminum pivot door with an integrated window, meticulously designed to offer a seamless blend of modern aesthetics, exceptional durability, and superior energy efficiency. Engineered for both residential and commercial applications, this door system elevates architectural design by creating striking entrances that invite natural light, enhance ventilation, and provide outstanding thermal performance. Ideal for contemporary homes, offices, and retail spaces, the PIVOT C16 sets a new standard for exterior doors by combining innovative pivot technology with high-quality materials and customizable features.

At the core of the PIVOT C16’s appeal is its sophisticated pivot hinge mechanism, which allows the door to rotate smoothly around a central vertical axis. This design not only enables larger and heavier door panels but also maximizes usable space by eliminating the need for traditional swing clearance. The pivot system delivers effortless operation and a visually captivating opening motion that contributes to an inviting atmosphere and a fluid connection between indoor and outdoor environments.

Constructed from premium-grade aluminum, the door frame offers outstanding strength, resistance to corrosion, and minimal maintenance requirements. The aluminum is coated with a durable powder finish that protects against harsh weather conditions, UV rays, and everyday wear and tear, ensuring the door retains its sleek appearance and structural integrity over time. The robust frame supports large glass panels while maintaining a slender profile, enhancing the door’s minimalist and contemporary look.

Thermal performance is a standout feature of the PIVOT C16, designed to reduce energy consumption and improve occupant comfort. The door integrates an advanced thermal break within the aluminum frame, significantly reducing heat transfer between the interior and exterior. Paired with high-quality insulated glazing options—including double or triple-pane Low-E glass—the door minimizes heat loss during colder months and limits solar heat gain in warmer seasons. The integrated window provides excellent natural light penetration while offering options for UV protection, sound insulation, and enhanced privacy through various glass finishes such as clear, frosted, or tinted.

The integrated window in the PIVOT C16 is thoughtfully designed to complement the door’s overall aesthetic and functional qualities. Its expansive glass area maximizes daylight entry and panoramic views, while the slim aluminum profiles maintain structural strength and thermal efficiency. Customizable glazing options allow architects and homeowners to tailor the door to their specific design vision and performance requirements.

Security and durability are paramount in the PIVOT C16 design. The door features a multi-point locking system seamlessly integrated into the pivot hardware, providing robust protection against unauthorized entry without compromising its clean lines. Reinforced aluminum profiles and precision-engineered components ensure smooth, reliable operation even under frequent use, guaranteeing long-term performance and safety.

Versatility is another hallmark of the PIVOT C16. It is available in a wide range of sizes, finishes, and hardware configurations, allowing it to adapt to diverse architectural styles and project specifications. Whether used as a grand front door, an expansive patio door, or a contemporary commercial entrance, the PIVOT C16 offers unparalleled flexibility and customization options.

In summary, the PIVOT C16 insulated exterior aluminum pivot door with window is a sophisticated solution that marries innovative pivot technology, superior insulation, and striking design. Its smooth operation, durable construction, and customizable glazing options make it an excellent choice for anyone seeking to enhance their building’s exterior with a door that is both visually stunning and energy-efficient. Investing in the PIVOT C16 means choosing a door that delivers lasting beauty, comfort, security, and sustainability for years to come.
