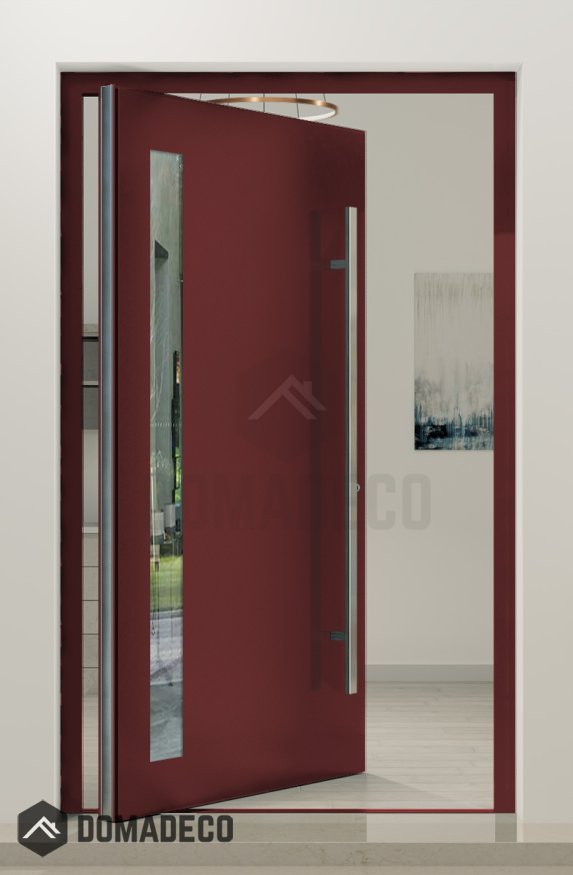

PIVOT C15 - energy efficient aluminum pivot exterior door

SKU
PIVOT C15
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

You can order this door model in a bigger size. View LIM C15



Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side

Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C15 - energy efficient aluminum pivot exterior door
Your Rating

The PIVOT C15 is a premium energy-efficient aluminum pivot exterior door that redefines modern architectural design with its blend of style, functionality, and sustainability. Engineered to meet the highest standards of performance and aesthetics, this door is ideal for homeowners, architects, and builders seeking to create striking entrances that maximize natural light, enhance indoor-outdoor connectivity, and reduce energy consumption.

At the core of the PIVOT C15’s appeal is its innovative pivot hinge system, which allows the door to rotate smoothly around a central vertical axis. Unlike traditional hinged doors that swing from the side, the pivot mechanism enables larger and heavier door panels to operate effortlessly, providing expansive openings that foster a seamless flow between interior and exterior spaces. This design not only creates a bold visual statement but also improves functionality by offering greater flexibility in door sizing and placement.

Constructed from high-quality aluminum, the PIVOT C15 combines strength and durability with a lightweight profile that facilitates smooth operation. Aluminum’s natural resistance to corrosion and weathering ensures the door withstands harsh outdoor conditions without compromising its appearance or structural integrity. The door frame is finished with a robust powder coating that shields against UV rays, scratches, and environmental wear, maintaining a sleek and contemporary look over time.

Energy efficiency is a fundamental feature of the PIVOT C15. The door incorporates advanced thermal break technology within its aluminum frame, significantly reducing heat transfer between the interior and exterior environments. Paired with insulated glazing options such as double or triple-pane low-emissivity glass, the door helps maintain consistent indoor temperatures, minimizing reliance on heating and cooling systems and lowering energy bills. Precision-engineered seals and weatherstripping further enhance airtightness, preventing drafts and improving overall comfort.

The design emphasizes clean lines and expansive glass panels, allowing abundant natural light to illuminate interior spaces while maintaining thermal performance and privacy. Customizable glazing options—including clear, tinted, frosted, or reflective glass—offer flexibility to balance aesthetic preferences with functional needs such as solar control and privacy. The slim aluminum profiles maximize glass area, creating an open and airy ambiance that enhances the connection with outdoor surroundings.

Security is also prioritized in the PIVOT C15’s design. The door features a robust locking system integrated seamlessly into the pivot mechanism, providing reliable protection without detracting from its minimalist appearance. Reinforced construction and precision hardware ensure the door resists forced entry and delivers long-lasting performance.

Versatility is another strength of the PIVOT C15. Available in a wide range of sizes, finishes, and hardware configurations, it can be tailored to complement diverse architectural styles and project requirements. Whether installed as a grand front entry, a stylish patio door, or a custom statement piece, the PIVOT C15 elevates the overall design and functionality of any building.

In summary, the PIVOT C15 energy-efficient aluminum pivot exterior door offers a perfect combination of contemporary elegance, robust performance, and sustainable design. Its smooth pivot operation, superior insulation, durable construction, and customizable options make it an outstanding choice for those looking to create beautiful, energy-conscious spaces that stand the test of time. With the PIVOT C15, you gain a door that not only enhances your property’s visual appeal but also contributes to a more comfortable and environmentally responsible living environment.
