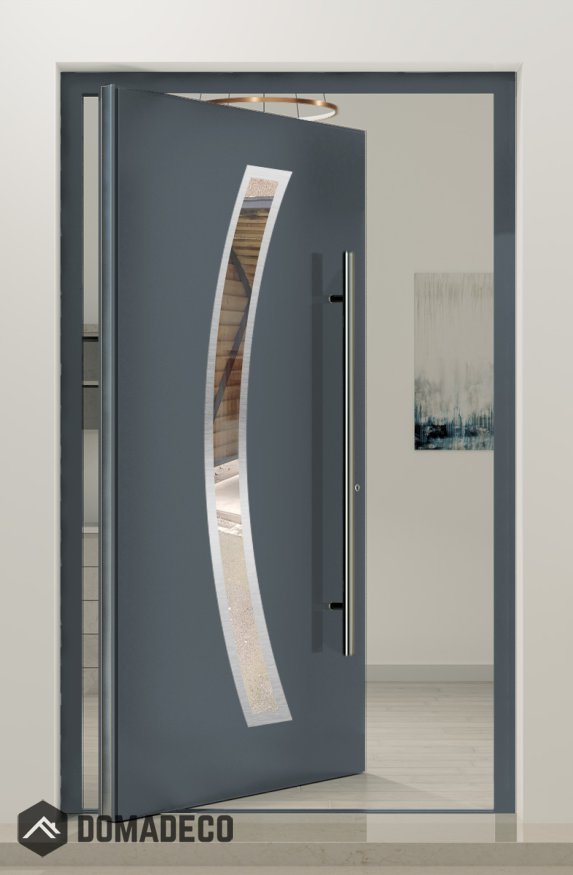

PIVOT Bumerang - aluminum glass main door pivot door

SKU
PIVOT Bumerang
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a bigger size. View LIM Bumerang

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT Bumerang - aluminum glass main door pivot door
Your Rating

The PIVOT Bumerang aluminum glass main door is an exceptional architectural feature that seamlessly combines cutting-edge pivot door technology with sleek, modern design. Engineered to serve as a grand and inviting entrance for both residential and commercial properties, this door stands out through its innovative pivot mechanism, premium materials, and striking aesthetic appeal. It is meticulously crafted to meet the highest standards of durability, functionality, and style, making it a perfect choice for contemporary spaces that demand both elegance and performance.

At the core of the PIVOT Bumerang door is its sophisticated pivot system, which allows the door to rotate effortlessly around a fixed pivot point, either centrally aligned or offset to one side. Unlike traditional hinged doors, the pivot mechanism enables the installation of larger, heavier door panels without compromising ease of operation or structural integrity. This creates a visually dramatic entrance that enhances the architectural presence of any building. The pivot hardware is precision-engineered to provide smooth, stable movement and long-lasting reliability, ensuring that the door performs flawlessly even under frequent use.

Constructed from high-quality aluminum, the frame of the PIVOT Bumerang door offers an excellent balance of strength and lightness. Aluminum is renowned for its resistance to corrosion, weathering, and environmental wear, which guarantees that the door maintains its refined appearance and structural soundness over time with minimal maintenance. The slim profiles of the aluminum frame contribute to a minimalist, refined look that complements a wide variety of architectural styles, from ultra-modern to industrial chic.

One of the defining characteristics of the PIVOT Bumerang door is its expansive glass panels, which not only elevate the door’s visual appeal but also allow abundant natural light to flood interior spaces. The glass options include double or triple glazing with low-emissivity coatings, enhancing thermal insulation and energy efficiency by minimizing heat transfer. This helps to create comfortable indoor environments year-round while reducing energy costs. Additionally, the glass provides excellent sound insulation and offers protection against harmful UV rays, safeguarding interior furnishings from fading.

Customization is a key advantage of the PIVOT Bumerang door. Available in a broad range of finishes, colors, and hardware configurations, this door can be tailored to complement the unique design language of any home or commercial building. Whether you prefer a bold, industrial look with matte black finishes or a sleek, polished appearance with metallic tones, the PIVOT Bumerang adapts seamlessly to your vision, making it a versatile and timeless choice.

Security and functionality are integral to the door’s design. The PIVOT Bumerang incorporates robust locking mechanisms and reinforced hardware to ensure maximum safety without detracting from its elegant appearance. High-quality seals and precision engineering provide excellent protection against drafts, water infiltration, and noise, enhancing overall comfort and security for occupants.

Maintenance is straightforward and minimal due to the durable materials used in construction. The aluminum frame and glass panels are designed to resist fading, corrosion, and wear, requiring only routine cleaning to keep the door looking pristine and operating smoothly. This makes the PIVOT Bumerang a practical investment that combines beauty, longevity, and performance.

In summary, the PIVOT Bumerang aluminum glass main door is a sophisticated, high-performance pivot door that elevates any entrance with its innovative technology, premium materials, and customizable design. It is the ideal solution for those seeking a striking, durable, and functional door that creates a lasting impression while enhancing the overall value and aesthetic of their property. Choosing the PIVOT Bumerang means embracing a modern masterpiece that perfectly balances form and function.
