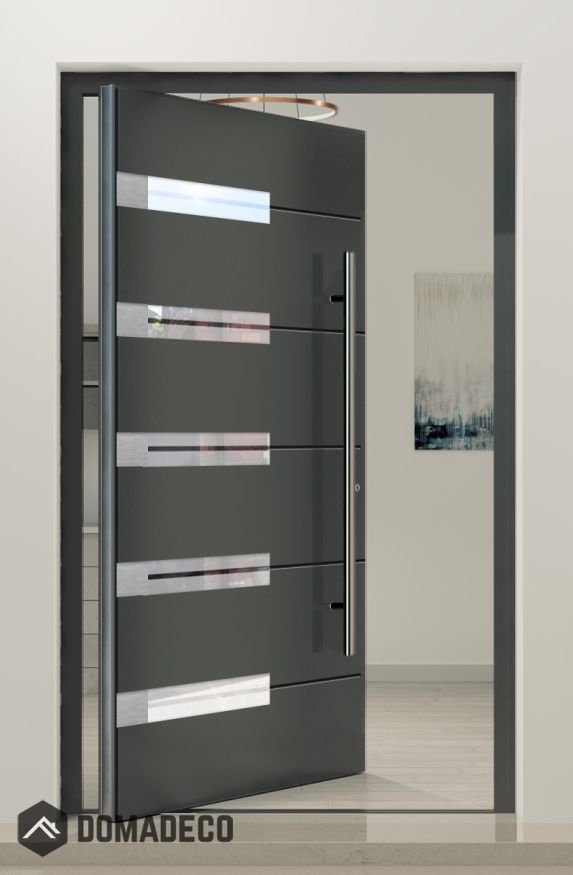

PIVOT AP18 - contemporary aluminum pivot front door

SKU
PIVOT AP18
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:

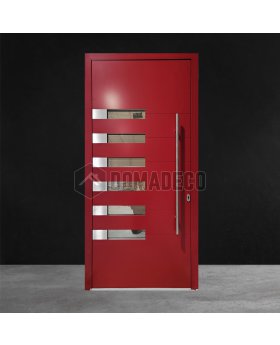

anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

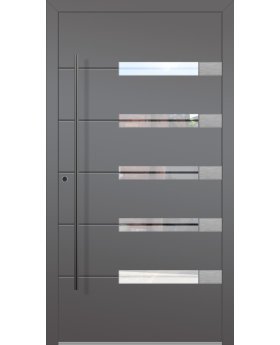

You can order this door model in a smaller size. View LIM AP18

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP18 - contemporary aluminum pivot front door
Your Rating

The PIVOT AP18 is a state-of-the-art contemporary aluminum pivot front door that exemplifies modern design, exceptional craftsmanship, and innovative functionality. Engineered to serve as a striking architectural centerpiece, this door is perfect for homeowners and designers seeking to make a bold statement while ensuring durability, security, and superior performance.

Constructed from premium-grade aluminum, the PIVOT AP18 offers impressive strength and longevity without compromising on weight or ease of use. Aluminum’s natural resistance to corrosion, rust, and weather damage means the door maintains its sleek appearance and structural integrity over time, even when exposed to harsh environmental conditions. This makes the PIVOT AP18 an ideal choice for exterior installations where both aesthetic appeal and resilience are critical.

What sets the PIVOT AP18 apart is its innovative pivot hinge system, which allows the door to rotate smoothly around a central or offset pivot point rather than traditional side hinges. This unique mechanism not only creates an elegant and dramatic entrance experience but also maximizes the functional opening width, enabling the use of larger and heavier door panels. The result is a visually impressive entryway that enhances natural light flow and fosters a seamless connection between indoor and outdoor spaces.

The design of the PIVOT AP18 embraces minimalism and geometric precision, featuring slim aluminum frames that highlight expansive glass panels. These panels can be customized with various glazing options such as clear, frosted, tinted, or laminated glass to balance privacy, light transmission, and energy efficiency according to specific project needs. Incorporating advanced insulated glass units further enhances thermal performance, reducing heat transfer and contributing to energy savings and indoor comfort throughout the year.

Beyond its striking aesthetics, the PIVOT AP18 is engineered for optimal functionality and comfort. High-performance weather seals and thermal break technology provide excellent insulation against temperature fluctuations and external noise, ensuring a quiet and energy-efficient interior environment. The precision-crafted pivot mechanism guarantees smooth operation and long-lasting durability, offering a luxurious user experience every time the door is opened or closed.

Security is a paramount consideration in the PIVOT AP18’s design. Reinforced aluminum construction combined with sophisticated locking systems delivers robust protection against unauthorized entry. The door’s hardware is thoughtfully designed to complement its sleek modern profile, featuring minimalist handles and concealed hinges that enhance both security and visual appeal.

Customization options abound with the PIVOT AP18, including a wide selection of powder-coated and anodized finishes in diverse colors and textures. This flexibility allows architects and homeowners to seamlessly integrate the door with the building’s exterior palette and design language. Additional hardware choices and accessories enable a fully personalized entrance solution tailored to specific aesthetic and functional requirements.

Installation of the PIVOT AP18 is streamlined by meticulous engineering and comprehensive technical support, ensuring precise fitting and optimal performance. Its durable aluminum surface resists fading, scratching, and corrosion, requiring minimal maintenance to preserve its contemporary elegance and functionality for years to come.

In summary, the PIVOT AP18 contemporary aluminum pivot front door is an exceptional architectural element that combines innovative design, high-quality materials, and advanced performance features. Its distinctive pivot mechanism, robust construction, energy efficiency, and enhanced security make it an ideal choice for those seeking a sophisticated, durable, and visually captivating entrance. Investing in the PIVOT AP18 means embracing a front door that offers lasting beauty, unparalleled functionality, and a memorable first impression for any modern property.
