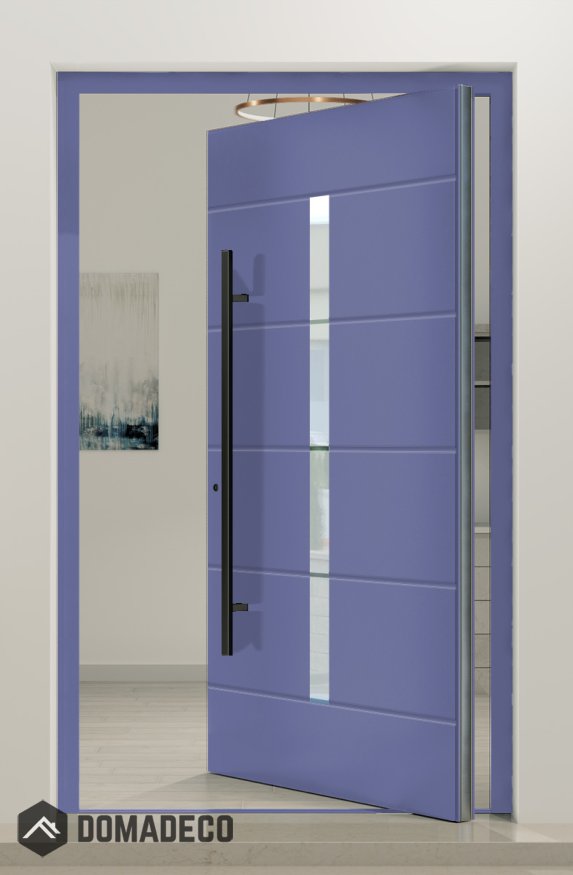

PIVOT AP16 - aluminium affordable pivot door

SKU
PIVOT AP16
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

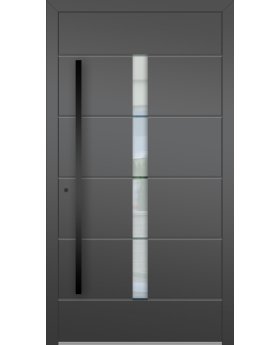

You can order this door model in a smaller size. View LIM AP16

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Integrated door closer
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.

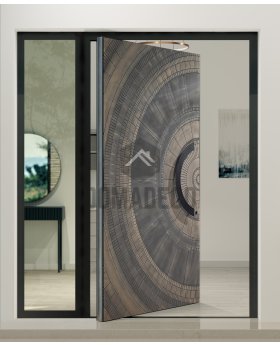

Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP16 - aluminium affordable pivot door
Your Rating

The PIVOT AP16 is a premium yet affordable aluminum pivot door that perfectly marries sleek modern design with practical functionality and exceptional durability. Engineered to elevate the aesthetic appeal and performance of any space, this door is an ideal solution for homeowners, architects, and builders seeking a stylish, cost-effective entrance option that doesn’t compromise on quality or reliability.

Crafted from high-grade aluminum, the PIVOT AP16 boasts a lightweight yet robust frame that offers long-lasting strength and resistance to corrosion, rust, and environmental wear. Aluminum’s inherent durability ensures that this pivot door maintains its pristine appearance and structural integrity over time, making it highly suitable for both residential and commercial applications. Whether exposed to harsh weather conditions or frequent daily use, the PIVOT AP16 stands strong, providing consistent performance and minimal maintenance requirements.

The defining characteristic of the PIVOT AP16 lies in its innovative pivot mechanism. Unlike traditional hinged doors that swing open on side hinges, this door rotates smoothly around a central or offset pivot point. This design not only creates a striking architectural statement but also optimizes space utilization by eliminating the need for wide clearance typical of conventional doors. The pivot system allows for the installation of larger and heavier door panels, resulting in expansive openings that invite natural light and create a welcoming entrance with effortless operation and fluid motion.

Aesthetically, the PIVOT AP16 features a minimalist, slimline aluminum frame that complements a wide range of architectural styles—from contemporary and industrial to transitional and modern minimalism. The door is available with customizable finishes, including durable powder coatings and anodized options in various colors, enabling seamless integration with diverse exterior color schemes and design preferences. Additionally, it accommodates multiple glazing choices such as clear, frosted, tinted, or laminated glass, offering flexibility in terms of privacy, light transmission, and thermal performance.

Thermal efficiency and weather resistance are core strengths of the PIVOT AP16. Equipped with high-quality weatherstripping and advanced sealing systems, the door effectively minimizes air infiltration and protects interiors from moisture and drafts. This enhances energy efficiency, reduces heating and cooling costs, and maintains comfortable indoor environments year-round. The door’s precision engineering also ensures a tight seal and smooth operation, even with frequent use or oversized panels.

Security is another vital feature of the PIVOT AP16. Reinforced aluminum profiles combined with robust locking hardware create a secure barrier that safeguards against unauthorized entry. The sturdy pivot system and well-fitted frame guarantee stability and resistance to forced opening, providing peace of mind without sacrificing aesthetic appeal or ease of use.

Installation of the PIVOT AP16 is designed to be straightforward and efficient, thanks to its modular components and clear mounting instructions. This reduces labor time and overall project costs, making it an attractive choice for budget-conscious projects. Maintenance is minimal, as the aluminum frame resists fading, corrosion, and wear, requiring only simple cleaning to keep the door looking fresh and modern for years.

In summary, the PIVOT AP16 affordable aluminum pivot door offers an outstanding combination of contemporary style, durability, and value. Its innovative pivot hardware, customizable design options, and resilient construction make it a versatile and practical entry solution that enhances the look and functionality of any building. Whether for residential homes, commercial spaces, or architectural projects, the PIVOT AP16 stands out as a smart investment that delivers lasting beauty, security, and performance.
