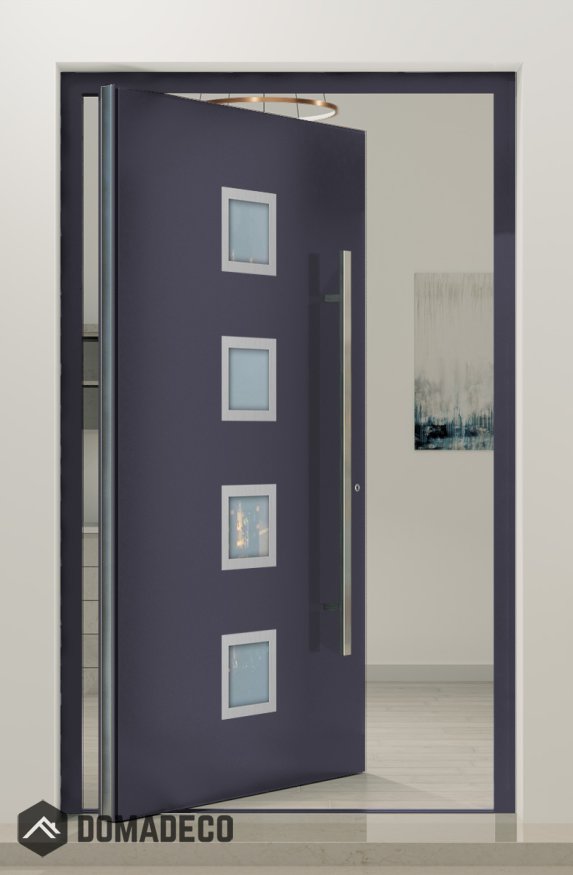

PIVOT AP08 - large pivot aluminum door with glass

SKU
PIVOT AP08
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM AP08

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AP08 - large pivot aluminum door with glass
Your Rating

The PIVOT AP08 is a premium large pivot door that perfectly combines modern design, advanced engineering, and high-quality materials to create a stunning architectural feature for contemporary homes, commercial properties, and luxury spaces. Crafted from durable aluminum and expansive glass panels, this door is designed to make a bold statement while offering exceptional functionality and ease of use. Its sleek, minimalist aesthetic complements a wide range of architectural styles, enhancing the overall look and feel of any entrance with elegance and sophistication.

At the heart of the PIVOT AP08 lies its innovative pivot mechanism, which allows the door to rotate smoothly around a central vertical axis. Unlike traditional hinged doors, this pivot system enables larger door panels to open effortlessly, providing a grand and dramatic entry experience. The pivot hardware is engineered for strength and stability, capable of supporting heavy door leaves without compromising smooth operation or safety. This makes the PIVOT AP08 ideal for spaces where both visual impact and practical performance are essential.

The door’s frame is constructed from premium-grade aluminum, known for its lightweight yet robust properties. Aluminum offers excellent resistance to corrosion, warping, and weather damage, ensuring that the PIVOT AP08 maintains its sleek appearance and structural integrity over time, even in harsh environmental conditions. Additionally, the aluminum frame can be finished with a variety of coatings and colors, including durable powder-coated options that resist fading and scratching, allowing for extensive customization to suit different design preferences.

One of the defining features of the PIVOT AP08 is its large glass panels, which maximize natural light and provide unobstructed views, seamlessly connecting indoor and outdoor spaces. The glass options are highly versatile and can be tailored to include clear, tinted, frosted, laminated, or tempered varieties based on privacy, security, and energy efficiency requirements. These glazing options help to improve thermal insulation and soundproofing, contributing to a comfortable and energy-efficient interior environment.

Security is a top priority in the design of the PIVOT AP08. The door is equipped with advanced locking systems and reinforced hardware to ensure robust protection against unauthorized access without compromising its clean and modern look. Additionally, high-quality weather seals and thermal breaks are integrated into the design to prevent drafts, water infiltration, and heat loss, enhancing the door’s performance in all seasons.

Installation of the PIVOT AP08 is designed to be precise and adaptable, accommodating a variety of structural openings and architectural configurations. Its modular design and adjustable pivot system facilitate smooth integration into new constructions or renovation projects, ensuring a perfect fit and flawless operation. Professional installation guarantees that the door will function reliably and remain a striking focal point for years to come.

In summary, the PIVOT AP08 large pivot aluminum door with glass is an exceptional combination of style, strength, and innovation. It transforms any entrance into an impressive visual centerpiece that enhances natural light, optimizes space, and offers superior durability and security. Whether for a modern residence, commercial lobby, or luxury villa, the PIVOT AP08 sets a new benchmark for contemporary pivot doors, delivering both aesthetic appeal and functional excellence.
