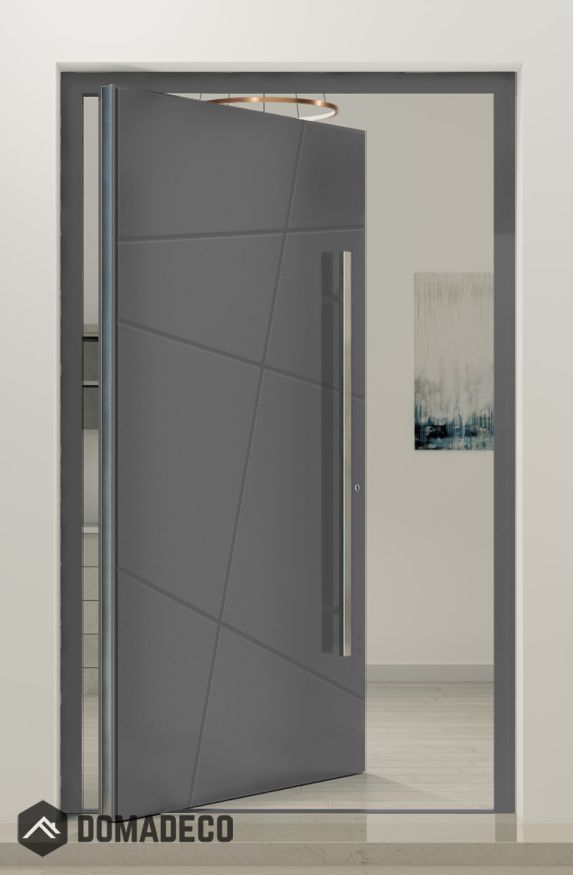

PIVOT AG07 - modern aluminium pivot front door for contemporary homes

SKU
PIVOT AG07
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
CA$13,310.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

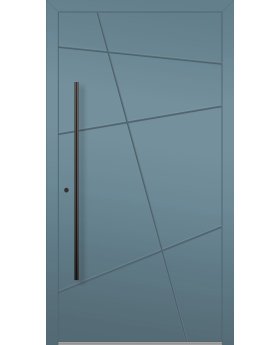

You can order this door model in a smaller size. View LIM AG07

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,310.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT AG07 - modern aluminium pivot front door for contemporary homes
Your Rating

The PIVOT AG07 is a premium modern aluminium pivot front door expertly designed to elevate the entrance of contemporary homes with a perfect blend of style, innovation, and functionality. This door showcases a sophisticated pivot hinge system that allows the door to swing open smoothly around a central or offset axis, creating a striking architectural feature that instantly commands attention. Unlike traditional hinged doors, the pivot mechanism offers a wider opening angle and a seamless, fluid motion that enhances both the aesthetic appeal and practical usability of the entrance.

Crafted from high-quality aluminium, the PIVOT AG07 offers exceptional strength and durability while maintaining a sleek, lightweight profile. Aluminium’s natural resistance to corrosion, rust, and environmental wear ensures that the door remains pristine and fully functional even in harsh weather conditions. This makes it an ideal choice for a wide variety of environments, from urban settings to coastal homes. The door is finished with advanced powder coating techniques that provide a long-lasting, vibrant surface available in an extensive range of contemporary colors and textures, allowing homeowners to customize their entryway to perfectly complement their architectural style.

The design philosophy behind the PIVOT AG07 emphasizes clean lines, minimalist aesthetics, and expansive glazing options that flood interior spaces with natural light, creating an inviting and open atmosphere. The door’s broad panels and narrow sightlines contribute to a modern, streamlined appearance that enhances curb appeal and reflects the sophistication of contemporary architecture. Additionally, the pivot design maximizes usable space both inside and outside the home, making it an excellent choice for residences where functionality and style are equally important.

Customization is a key advantage of the PIVOT AG07. Homeowners and architects can tailor every detail, from the door’s dimensions and finish to the type and configuration of glazing. Energy-efficient glass options help regulate indoor temperatures, improve insulation, and provide privacy without sacrificing natural light. Optional sidelights and transoms can be incorporated to create a cohesive and elegant entrance ensemble, further enhancing the door’s visual impact and functionality.

Security and ease of use are paramount in the PIVOT AG07’s design. The door can be equipped with state-of-the-art locking mechanisms, such as multi-point locks and smart access systems, providing robust protection while maintaining a clean, uncluttered look. The pivot hardware is engineered for smooth, reliable operation, even for large and heavy door panels, ensuring longevity and effortless daily use.

Installation of the PIVOT AG07 is streamlined thanks to precision engineering and modular components, facilitating integration into both new construction and renovation projects. Comprehensive support from experienced professionals ensures that the door is installed perfectly, maximizing its performance, durability, and aesthetic appeal.

In summary, the PIVOT AG07 is more than just a front door—it is a bold architectural statement that combines modern design, superior craftsmanship, and innovative technology. Ideal for contemporary homes, it offers a perfect balance of elegance, durability, and functionality, making it the ultimate choice for homeowners seeking to make a lasting impression with their entrance.
