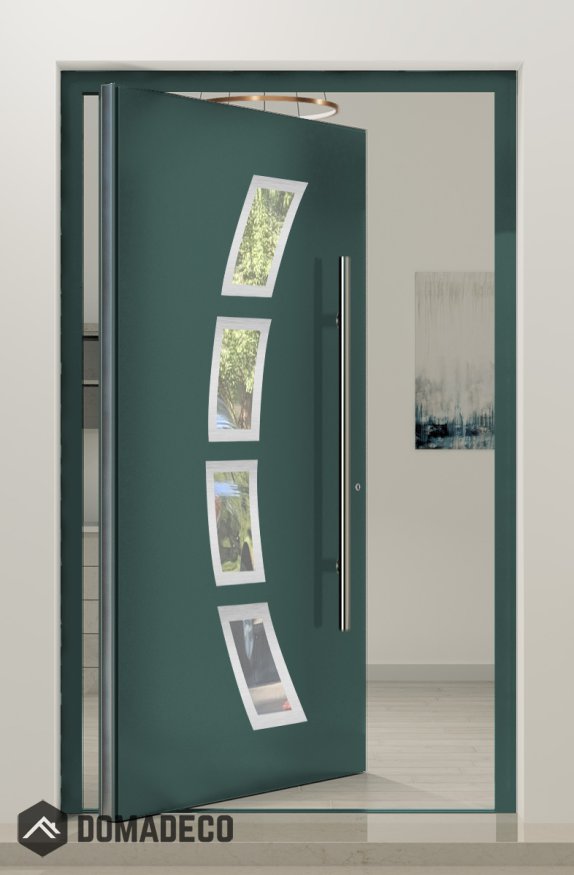

PIVOT 21A - aluminium Modern exterior pivot door

SKU
PIVOT 21A
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$13,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminum) - production takes 6 weeks

Size pivot door with frame:
Width from: 55.1" to 78"
Height from: 78.7" to 116"

You can order this door model in a smaller size. View LIM 21A

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation R-Value 6.8

The door set includes:

- Aluminum pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side
Frequently Asked Questions: click here to check

-
+
CA$13,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT 21A - aluminium Modern exterior pivot door
Your Rating

The PIVOT 21A aluminum modern exterior pivot door is a masterful blend of innovative engineering, contemporary aesthetics, and exceptional durability, designed to elevate the entrance of any modern architectural space. This door stands out as a bold statement piece, combining sleek aluminum craftsmanship with a cutting-edge pivot hinge system that redefines the traditional door experience. Ideal for residential, commercial, and high-end architectural projects, the PIVOT 21A offers an impressive fusion of form and function that enhances both the exterior façade and interior ambiance.

With a strong yet lightweight aluminum frame, the PIVOT 21A delivers outstanding structural integrity, ensuring long-lasting performance and resistance to the elements. Aluminum’s inherent qualities—such as corrosion resistance, low maintenance requirements, and sustainable recyclability—make this door an environmentally conscious choice that withstands harsh weather conditions without compromising its pristine appearance. The minimalist design language of the door features clean lines and a slim profile, creating a refined and timeless look that complements contemporary architectural styles.

The standout feature of the PIVOT 21A is its sophisticated pivot hinge system. Unlike traditional side-hinged doors, this door rotates smoothly on a central pivot point, allowing for dramatic opening gestures and maximizing usable space. This mechanism not only offers enhanced flexibility in door positioning but also creates a visually captivating entrance that can be customized to open inward or outward depending on design preferences and functional needs. The pivot design enables larger door sizes without sacrificing stability or ease of operation, making it perfect for grand entrances or spaces where architectural innovation is paramount.

Customization is a key advantage of the PIVOT 21A. The door panel can be tailored to suit diverse design visions by incorporating a range of materials, including expansive glass panels, wood veneers, or solid aluminum finishes. When opting for glass, clients can choose from tempered, laminated, or double-glazed options that provide superior safety, thermal insulation, and soundproofing. Additional glass treatments such as frosting or tinting offer privacy without sacrificing natural light, allowing the door to become a luminous centerpiece that connects indoor and outdoor environments.

Thermal performance and energy efficiency are thoughtfully engineered into the PIVOT 21A. The door’s aluminum frame features advanced thermal break technology, which effectively reduces heat transfer between the interior and exterior. This minimizes energy loss, enhances indoor comfort, and prevents condensation build-up. High-quality weatherstripping and precision sealing further protect against drafts, water infiltration, and noise, ensuring a secure and comfortable environment regardless of climate.

Security is uncompromised in the design of the PIVOT 21A. Robust construction combined with reinforced pivot hardware and multi-point locking systems provides a formidable defense against forced entry. The door’s solid build and precision engineering meet stringent security standards, offering peace of mind alongside its striking visual presence.

A broad spectrum of finishing options is available, including durable powder-coated and anodized aluminum surfaces in an extensive palette of colors and textures. This versatility allows architects and designers to seamlessly integrate the door into any exterior color scheme or architectural style. Complementary hardware finishes can be selected to enhance the door’s modern aesthetic and provide functional elegance.

Installation of the PIVOT 21A is streamlined and precise, facilitated by expertly engineered components that ensure perfect alignment and effortless operation. Its robust materials and superior finishes demand minimal upkeep, resisting fading, corrosion, and surface damage over time.

In summary, the PIVOT 21A aluminum modern exterior pivot door is an outstanding solution for those seeking a sophisticated, high-performance entryway that marries avant-garde design with practical benefits. Its unique pivot mechanism, durable aluminum frame, and extensive customization capabilities make it an ideal centerpiece for contemporary architecture—transforming any building entrance into a statement of style, innovation, and lasting quality.
