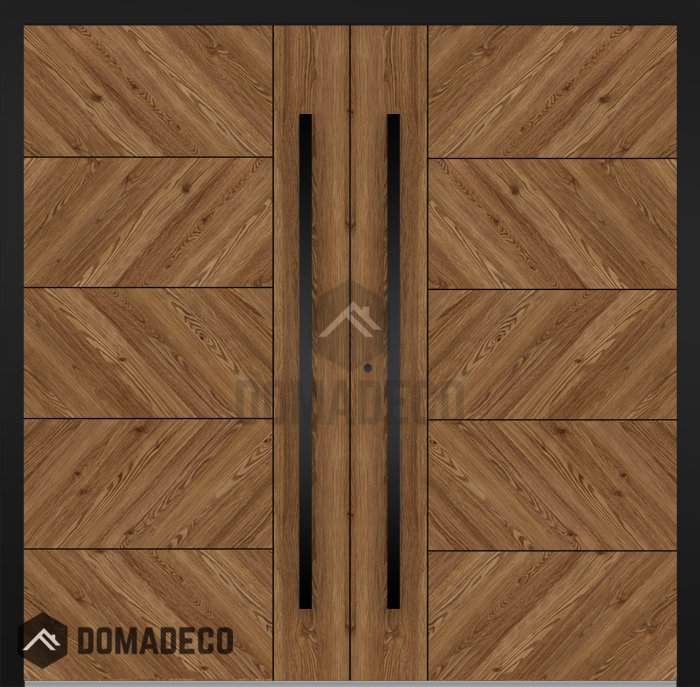

LIM WOODLINE 4 Double - aluminum wood-like double entry door covered Creek Larch High Pressure Laminate

SKU
LIM WOODLINE 4 double
Be the first to review this product
AVAILABLE
CA$20,610.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.8"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$20,610.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM WOODLINE 4 Double - aluminum wood-like double entry door covered Creek Larch High Pressure Laminate
Your Rating

The LIM WOODLINE 4 Double is a premium aluminum double entry door that flawlessly captures the rich, natural beauty of wood while delivering the outstanding strength and durability of modern aluminum construction. Finished with a meticulously crafted Creek Larch High Pressure Laminate (HPL) surface, this door offers an authentic wood-like appearance that adds warmth and elegance to any building facade without the typical maintenance concerns associated with natural wood. Engineered for excellence, the LIM WOODLINE 4 Double door is an ideal choice for homeowners, architects, and builders seeking a sophisticated, secure, and long-lasting entrance solution that enhances both the aesthetic appeal and functional performance of residential or commercial properties.

Constructed with a high-quality aluminum frame, the LIM WOODLINE 4 Double door boasts exceptional structural integrity and resistance to environmental stressors. Aluminum’s inherent properties — lightweight yet incredibly strong — ensure that this door withstands daily use, harsh weather conditions, and the test of time without warping, cracking, or corroding. This makes it especially suitable for regions with fluctuating climates, providing lasting reliability and peace of mind. The aluminum core also supports advanced locking mechanisms and hardware, enhancing security while maintaining smooth and effortless operation.

The standout feature of the LIM WOODLINE 4 Double door is its Creek Larch finish, achieved through state-of-the-art High Pressure Laminate technology. This innovative surface treatment replicates the nuanced grain patterns, natural color variation, and tactile texture of genuine larch wood with remarkable realism. Unlike traditional wood finishes, the HPL coating is highly resistant to scratches, fading, stains, and ultraviolet (UV) exposure, ensuring that the door’s vibrant, wood-like appearance remains pristine for years with minimal upkeep. This combination of beauty and durability makes the LIM WOODLINE 4 a perfect choice for those who appreciate the timeless aesthetics of wood but desire the practicality of modern materials.

Designed as a double entry door, the LIM WOODLINE 4 offers expansive access that enhances both convenience and curb appeal. The wider opening facilitates easy movement of large furniture, equipment, or groups of people, while optional glazing features can be integrated to allow natural light to filter into interior spaces, creating a bright and welcoming atmosphere. Precision-engineered hinges and multipoint locking systems guarantee secure closure, smooth operation, and enhanced protection against forced entry, making this door both stylish and safe.

Energy efficiency is a key consideration in the design of the LIM WOODLINE 4 Double door. Equipped with advanced weatherstripping and insulating materials, it minimizes air infiltration and thermal transfer, helping to maintain comfortable indoor temperatures year-round. This not only reduces energy consumption and lowers utility bills but also contributes to a more environmentally friendly building. Additionally, the door’s sound insulation properties improve indoor comfort by reducing noise pollution from outside, which is especially beneficial in busy urban or suburban settings.

Customization options further elevate the LIM WOODLINE 4 Double door, allowing customers to tailor the door’s appearance and functionality to their specific needs. Choose from a variety of hardware finishes, handle designs, and glazing configurations to create a personalized entrance that complements your architectural style perfectly — from contemporary and minimalist to classic and rustic. This flexibility ensures that the door integrates seamlessly with your property’s overall design vision.

In summary, the LIM WOODLINE 4 Double aluminum wood-like double entry door with Creek Larch High Pressure Laminate finish represents a harmonious blend of traditional wood aesthetics and modern technological innovation. Its robust aluminum construction, realistic and durable HPL wood-like surface, energy-efficient features, and customizable design make it an outstanding investment for those seeking a beautiful, secure, and enduring entryway solution. Elevate your property’s entrance with the LIM WOODLINE 4 Double door — where elegance meets performance for a truly remarkable impression.
