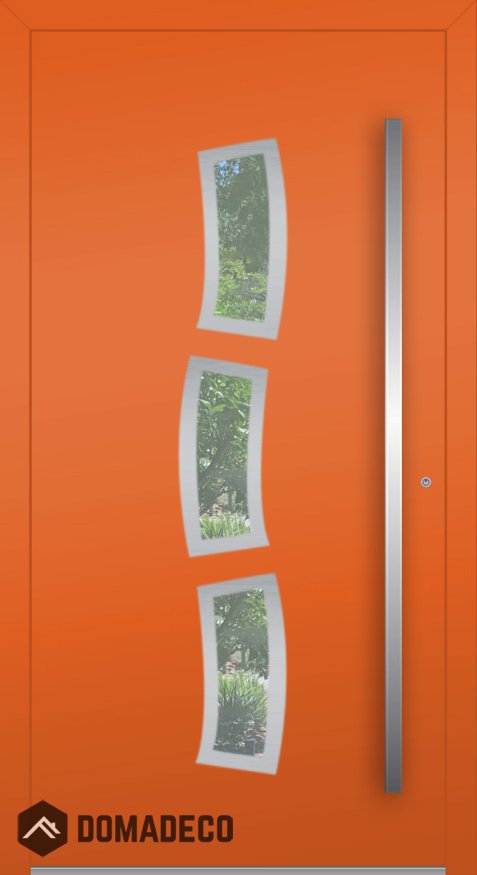

LIM W334 - modern aluminum front door

SKU
LIM W334
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$7,380.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

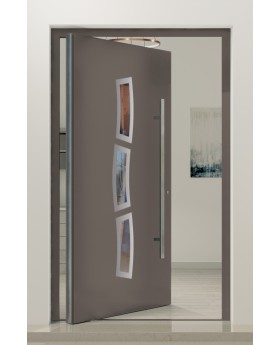

You can order this door model in a bigger size. View Pivot W334

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.7"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$7,380.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM W334 - modern aluminum front door
Your Rating

Introducing the LIM W334 modern aluminum front door, a sophisticated and stylish entryway solution that combines contemporary design with exceptional performance. Crafted with precision and attention to detail, this door by LIM is a true masterpiece that elevates the aesthetic appeal of any home or building.

At the heart of the LIM W334 front door is its modern aluminum construction, which not only exudes a sense of luxury and elegance but also offers durability and longevity. Aluminum is known for its strength, weather resistance, and low maintenance requirements, making it an ideal material for front doors. The premium aluminum material ensures that the door retains its pristine appearance and structural integrity over time, even in harsh outdoor conditions.

The design of the LIM W334 front door is characterized by its sleek and contemporary aesthetic, featuring clean lines, minimalist details, and a focus on modern simplicity. The aluminum frame is complemented by large glass panels, creating a sense of openness and transparency that allows natural light to filter into the interior space. This design element not only enhances the visual appeal of the door but also creates a welcoming and inviting atmosphere for residents and visitors alike.

Customization is a key feature of the LIM W334 modern aluminum front door, offering homeowners the opportunity to personalize the door to their specific preferences and architectural style. From a variety of finishes to glass options and hardware selections, the LIM W334 door can be tailored to suit individual tastes and design requirements. Whether you prefer a bold and contemporary look or a more understated and classic design, the LIM W334 door offers versatility and flexibility to meet your unique needs.

In addition to its aesthetic appeal, the LIM W334 front door is designed for functionality and performance. Advanced security features, energy-efficient properties, and sound insulation technology are integrated into the door to provide a safe, comfortable, and efficient living environment. With the LIM W334 door, you can enjoy peace of mind knowing that your front entrance not only looks impressive but also functions effectively to enhance the overall quality of your home.

In summary, the LIM W334 modern aluminum front door is a testament to contemporary design excellence and architectural innovation. Elevate the curb appeal of your property with this stylish and reliable entryway solution that combines elegance, durability, and functionality in perfect harmony. Make a bold statement with the LIM W334 door and welcome guests in style with a front entrance that epitomizes modern luxury and sophistication.
