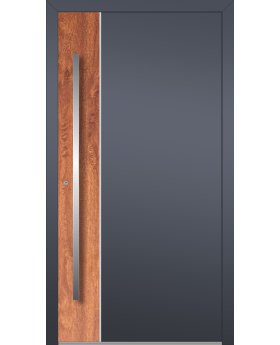

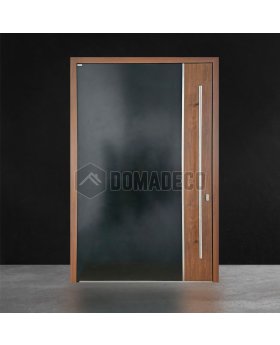

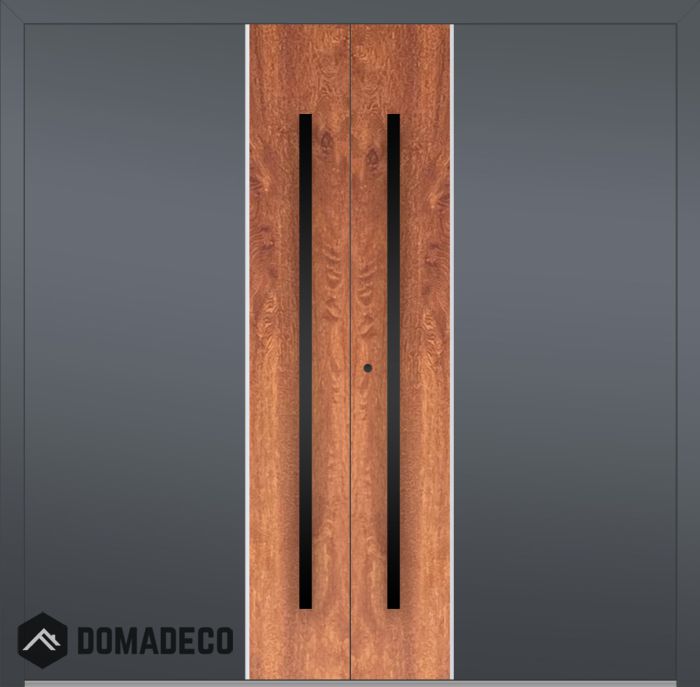

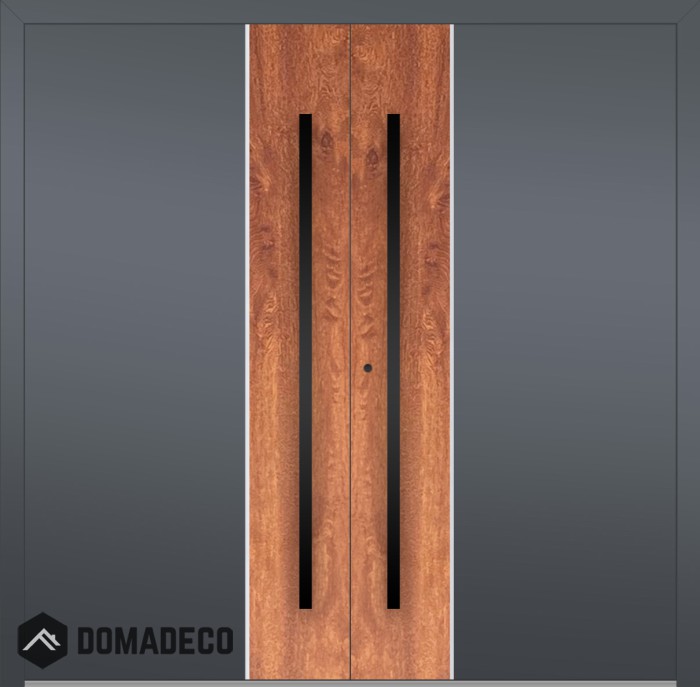

LIM v22 double - double aluminum front door with wooden decor

SKU
LIM double v22
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$16,330.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.8"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$16,330.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM v22 double - double aluminum front door with wooden decor
Your Rating

The LIM V22 Double is a premium double aluminum front door that masterfully combines durability, security, and aesthetic appeal with the warmth and elegance of wooden decor. Designed to meet the needs of discerning homeowners and commercial property developers alike, this door offers a perfect balance between modern materials and classic design elements, making it an outstanding choice for enhancing the entrance of any building.

At its core, the LIM V22 Double door features a robust aluminum construction that guarantees exceptional strength and resistance to the elements. Aluminum is renowned for its ability to withstand harsh weather conditions, including heavy rain, wind, and extreme temperatures, without rusting, warping, or deteriorating over time. This ensures that the door maintains its structural integrity and sleek appearance for many years, requiring minimal maintenance compared to traditional wooden doors.

The double-door configuration of the LIM V22 not only adds a grand and inviting presence to the entrance but also provides practical benefits. It allows for wider openings, facilitating the easy movement of large objects such as furniture and equipment, while also enabling flexible use—whether you want to open one door for everyday access or both for special occasions. The precision-engineered hinges and hardware ensure smooth operation and long-lasting reliability.

One of the most captivating features of the LIM V22 Double door is its exquisite wooden decor accents. These wooden elements are thoughtfully integrated into the aluminum frame, bringing a natural warmth and texture that beautifully contrasts with the sleek metal. The wood used is carefully selected and treated to resist moisture, fading, and temperature fluctuations, preserving its rich grain and color over time. This fusion of materials allows the door to complement a wide variety of architectural styles, from contemporary and minimalist to traditional and rustic, making it highly versatile.

To enhance durability and appearance, the LIM V22 Double door is finished with high-quality protective coatings on both the aluminum and wooden surfaces. These coatings guard against UV damage, scratches, and environmental wear, ensuring the door retains its vibrant look and refined texture with minimal upkeep. The door’s weather-resistant seals also contribute to improved insulation, helping to maintain indoor comfort by reducing drafts and increasing energy efficiency.

Security is a key focus in the design of the LIM V22 Double door. It is equipped with reinforced frames and advanced locking mechanisms that provide robust protection against forced entry and unauthorized access. This ensures peace of mind for property owners, combining safety with style. Additionally, the door’s solid construction contributes to noise reduction, further enhancing the comfort of your home or commercial space.

Maintenance of the LIM V22 Double door is straightforward and hassle-free. Thanks to the durability of aluminum and the treated wooden decor, the door requires only periodic cleaning to keep it looking pristine. Unlike traditional wooden doors that may need regular refinishing or repairs, this hybrid design offers the aesthetic benefits of wood without the common maintenance challenges.

Customization options for the LIM V22 Double door allow you to tailor the finish, color, and wood decor style to suit your specific design preferences and architectural requirements. This flexibility ensures that the door can seamlessly integrate with the exterior palette of your property, enhancing curb appeal and making a lasting impression on visitors.

In summary, the LIM V22 Double double aluminum front door with wooden decor is a sophisticated and reliable entryway solution that perfectly blends strength, security, and timeless beauty. Its sturdy aluminum core combined with elegant wood accents creates a door that is both visually stunning and built to withstand the test of time. Ideal for both residential and commercial applications, the LIM V22 Double door elevates any entrance with its welcoming presence, functional design, and enduring quality.
