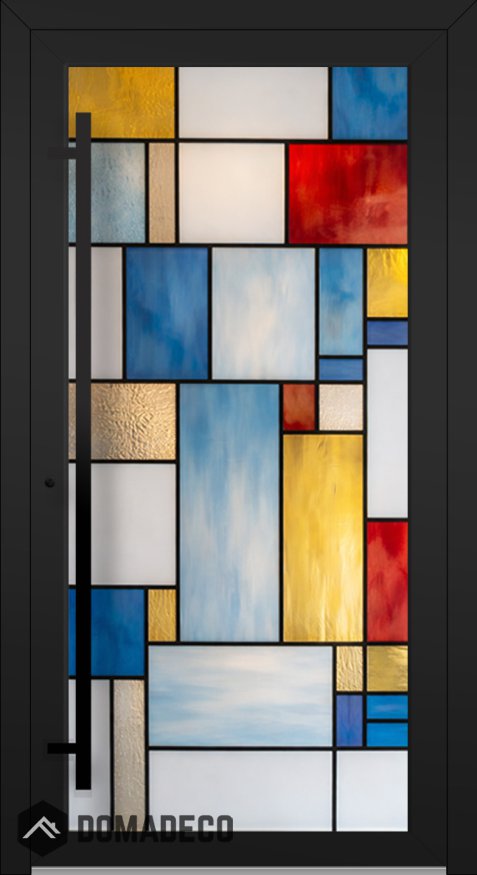

LIM SG1 - Stained Glass external aluminum door

SKU
LIM SG1
Be the first to review this product
AVAILABLE
CA$10,030.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

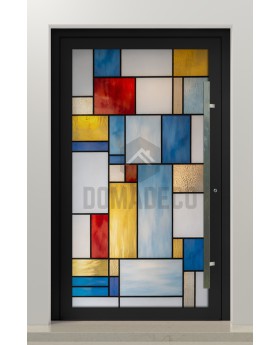

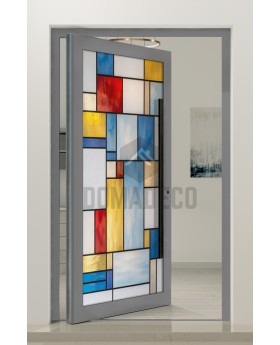

You can order this door model in a bigger size. View Pivot SG1

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$10,030.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM SG1 - Stained Glass external aluminum door
Your Rating

The LIM SG1 - Stained Glass External Aluminum Door is a sophisticated and durable entry solution that perfectly blends classic artistry with contemporary strength and functionality. Crafted to enhance the beauty and security of any building’s exterior, this door features stunning stained glass panels encased in a premium aluminum frame, delivering a striking visual impact alongside exceptional performance. Whether you are looking to add character to your home or elevate the façade of a commercial space, the LIM SG1 door offers an unparalleled combination of elegance, durability, and energy efficiency designed to stand the test of time.

Exquisitely designed, the LIM SG1 door showcases intricate stained glass artistry that transforms ordinary light into a kaleidoscope of colors and patterns. Each stained glass panel is carefully handcrafted using high-quality materials and time-honored techniques, ensuring vibrant hues and detailed motifs that bring a unique charm and personality to your entrance. With a wide range of customizable designs available—from traditional and floral patterns to modern abstract arrangements—this door can be tailored to suit any architectural style or personal preference, making it a truly bespoke feature for your property.

The structural integrity of the LIM SG1 is anchored by its robust aluminum frame, engineered for maximum strength and resistance against weather elements. Aluminum’s natural ability to resist corrosion, rust, and wear means this door maintains its sleek appearance and reliable performance without extensive maintenance. Lightweight yet incredibly strong, the frame offers superior security and durability, providing peace of mind while complementing the beauty of the stained glass with clean, contemporary lines.

Functionality and efficiency are central to the LIM SG1’s design. Equipped with high-grade locking systems and smooth-operating hinges, this door ensures easy use while safeguarding your property from potential intrusions. Advanced weather seals and thermal insulation features reduce heat loss and prevent drafts, enhancing your building’s energy efficiency and comfort. Additionally, the door’s sound insulation properties help minimize external noise, creating a quieter and more serene indoor environment.

Customization options for the LIM SG1 are extensive, allowing you to select frame finishes, stained glass designs, hardware styles, and sizes that perfectly align with your vision. Whether you prefer a bold statement piece that commands attention or a subtle accent that harmonizes with your existing décor, this door can be personalized to reflect your individual style and functional needs.

In summary, the LIM SG1 - Stained Glass External Aluminum Door is a remarkable fusion of artistic beauty and modern engineering. It elevates any building’s entrance with its elegant stained glass artistry, robust aluminum construction, and superior security features, all while offering excellent energy efficiency and low maintenance. Investing in the LIM SG1 means choosing a door that not only enhances curb appeal but also delivers lasting performance and timeless charm for years to come.
