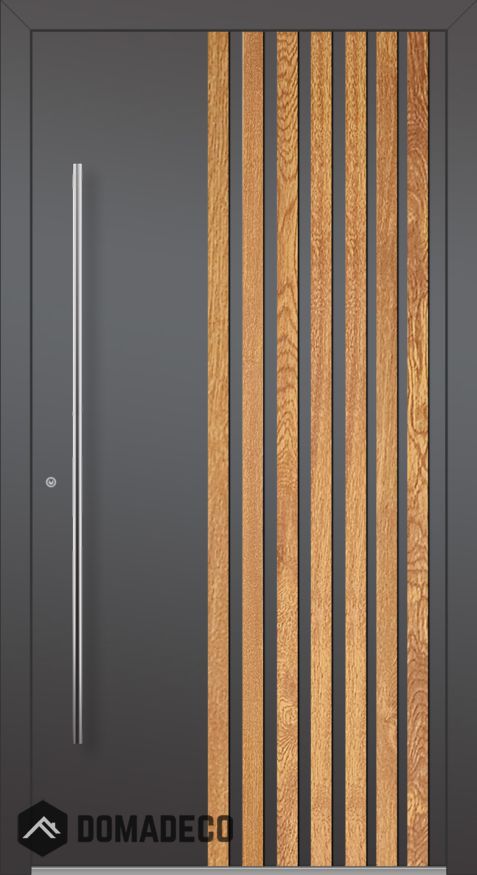

LIM RAIL3 - aluminium exterior door with vertical slats made of aluminium profiles
The price includes TAX & shipping
Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 7 weeks
door named STA (stainless steel) - production takes 6 weeks
door named FARGO (stainless steel) - production takes 9 weeks
Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

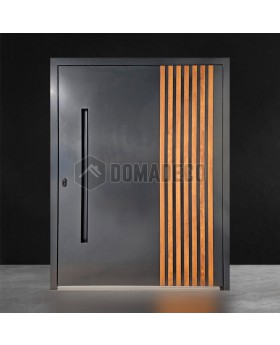

You can order this door model in a bigger size. View Pivot ML02
The characteristic feature of this series is the use of appliques made of aluminum profiles with wood pattern.
Specification
The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.7"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB
The door set includes:
- Aluminum door and the door frame;
- the GreenteQ door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.8" height;
- anti-burglary class lock insert with 5 keys.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check
