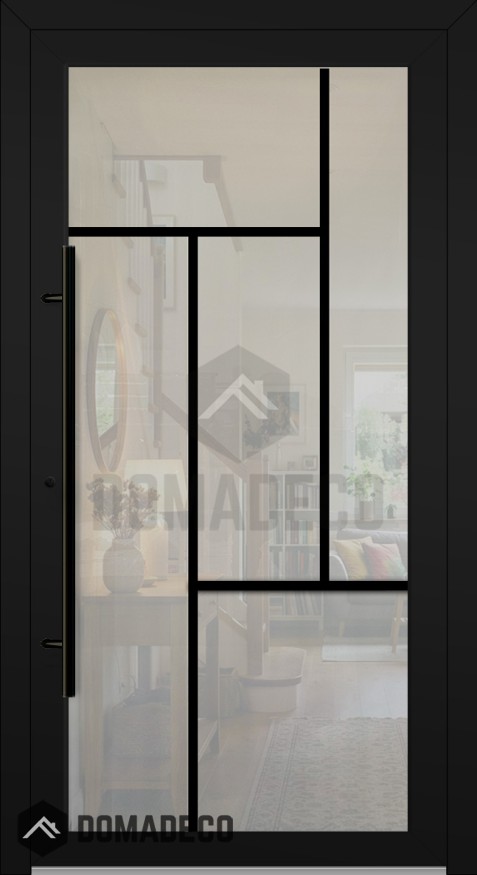

LIM MN1 - fully glazed aluminum entry door with muntins (glazing bars)

SKU
LIM MN1
AVAILABLE
CA$7,290.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

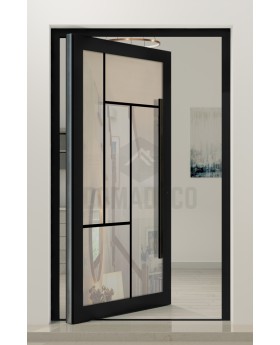

You can order this door model in a smaller size. View Pivot MN1

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.7"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$7,290.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM MN1 - fully glazed aluminum entry door with muntins (glazing bars)
Your Rating

The LIM MN1 is a fully glazed aluminum entry door with muntins (glazing bars), created for those who want their entrance to feel bright, contemporary, and unmistakably premium. It combines a generous expanse of glass with slim aluminum framing and a refined grid of glazing bars, turning a simple doorway into an architectural feature that enhances both the exterior and interior of your property.

Visually, the LIM MN1 makes an immediate impact. The full-height glass panel floods your hallway or foyer with natural light, instantly making the space feel more open, airy, and welcoming. From outside, the door presents a clean, modern façade with a strong vertical presence. From inside, it creates a seamless visual connection to your garden, driveway, or surrounding landscape, helping to blur the boundaries between indoors and outdoors in a very sophisticated way.

The signature element of the LIM MN1 is its muntin, or glazing bar, design. These slim, precision-engineered aluminum profiles divide the glass into multiple sections, forming a stylish grid pattern across the surface of the door. This grid references classic steel doors and industrial loft windows, while still looking perfectly at home in contemporary architecture. It adds rhythm, balance, and character to the door, transforming clear glass into a considered design statement. The glazing bars also make it easy to coordinate the entrance with other grid-style elements around the property, such as window arrangements, internal glass partitions, or steel-look room dividers.

Engineered from high-quality aluminum, the LIM MN1 is built for strength and long-term stability. Aluminum is resistant to warping, swelling, cracking, and twisting, even with constant exposure to changing temperatures, humidity, and sunlight. This durability is particularly important for an entry door that must perform reliably in all seasons. Because aluminum is so strong, the frame and glazing bars can remain slim and elegant while safely supporting large areas of glass. This gives you those desirable narrow sightlines and a light, minimal appearance without sacrificing rigidity or security.

The aluminum profiles and muntins are finished with advanced powder-coating technology. This process creates a tough, UV-resistant surface that maintains its color, texture, and appearance over many years of everyday use and weather exposure. The LIM MN1 can be specified in a wide range of colors and finishes to perfectly suit your project. Choose classic matte black for a steel-inspired look, deep anthracite for a sleek modern aesthetic, warm greys and neutrals for understated elegance, or bolder architectural colors to make the entrance a true focal point. The frame and glazing bars are precisely color-matched to deliver a seamless, high-end look.

Despite its transparent, lightweight feel, the LIM MN1 is designed to function as a genuinely secure entry door. The robust aluminum frame can be paired with high-security multi-point locking systems, quality cylinders, reinforced keeps, and strong hinges, all working together to resist forced entry. The door glazing is available in toughened or laminated safety options, dramatically increasing impact resistance and helping to deter break-ins. In short, you can enjoy the clarity and openness of a fully glazed entrance without compromising on the protection you expect from a front door.

Thermal performance is a core part of the LIM MN1 concept. Modern aluminum systems incorporate thermal breaks inside the profiles – insulated sections that separate the inner and outer metal layers – to reduce heat transfer. Combined with high-quality double or triple glazing, this helps to maintain a comfortable indoor environment, keeping warmth in during colder months and limiting heat gain when the weather is warmer. Efficient seals and gaskets around the frame enhance airtightness, minimising draughts and helping to keep out wind, moisture, and dust, so the door does more than just look good; it actively contributes to a more energy-conscious home.

The glass options available for the LIM MN1 allow you to tailor the door to your privacy and performance requirements. Clear glass is ideal when you want to maximise light and views, giving your entrance a truly open feel. For greater privacy, you can choose frosted, satin, or patterned glass that softens or obscures direct views while still allowing plenty of daylight to filter through. For sun-exposed façades, special solar-control coatings can help reduce glare and overheating, ensuring a comfortable interior environment even in brighter conditions.

Acoustic comfort is another area where the LIM MN1 can be optimised. When specified with laminated or acoustic glazing, the door can significantly reduce noise from outside, making it a particularly smart choice for homes or buildings located near busy roads, in urban environments, or in lively neighbourhoods. The combination of a rigid frame, quality seals, and advanced glass options helps turn the entrance into a calm, quiet transition space.

One of the major advantages of the LIM MN1 is its low-maintenance nature. Unlike timber doors, aluminum does not need regular repainting, staining, or varnishing. The powder-coated finish is designed to stay looking fresh with minimal effort; occasional cleaning with mild soapy water is generally all that is needed to remove dust, fingerprints, and everyday grime. The glass can be maintained with standard window-cleaning methods. This makes the LIM MN1 a highly practical choice for busy households and commercial properties where long-term ease of care is a priority.

Design flexibility is built into the LIM MN1. The layout of the glazing bars can often be chosen or adjusted to match your aesthetic vision. A finer, more intricate grid can create a delicate, elegant feel, while a layout with fewer, larger panes gives a bolder, more contemporary graphic effect. The door can be manufactured in standard or oversized dimensions, depending on the scale of your entrance and architectural style. Hardware options include sleek pull bars, modern lever handles, and minimalist handle sets in finishes such as stainless steel, black, or color-matched tones, allowing you to complete the composition to your exact taste.

The LIM MN1 fits beautifully into a wide range of architectural settings. In modern homes, it reinforces clean lines and open layouts, pairing effortlessly with large windows, flat roofs, and simple materials like concrete, stone, and timber. In renovated period properties, it introduces a fresh, contemporary feel while echoing traditional divided-light patterns often found in original windows and doors. In commercial spaces such as offices, design studios, boutiques, and showrooms, it projects an image of transparency, style, and professionalism from the very first impression.

Overall, the LIM MN1 fully glazed aluminum entry door with muntins (glazing bars) is a compelling choice if you want your entrance to deliver much more than basic functionality. It offers abundant natural light, a distinctive grid design, and a striking modern aesthetic, combined with the strength, security, thermal performance, and low maintenance expected from a high-quality aluminum door system. If you are looking to create an entrance that feels refined, inviting, and architecturally considered for many years to come, the LIM MN1 is an exceptional, future-proof solution.
