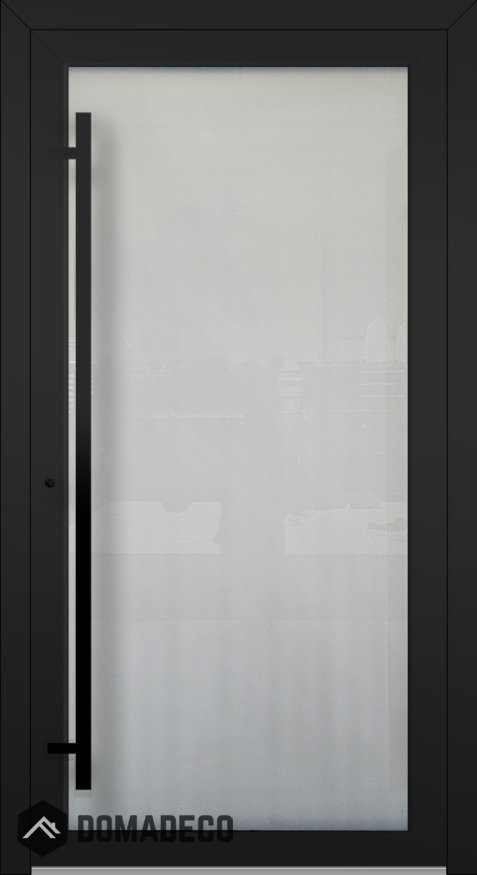

LIM Glass - fully glazed aluminum front door

SKU
LIM Glass
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$6,735.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

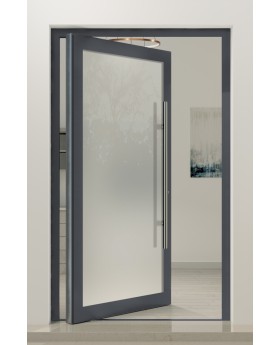

You can order this door model in a bigger size. View Pivot Glass

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$6,735.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass - fully glazed aluminum front door
Your Rating

In the world of front door design, the LIM-BATCH Glass from Reynaers stands out as a true masterpiece of architectural engineering. This exceptional door system seamlessly combines the strength and durability of aluminum with the beauty and luminosity of full-glass panels, creating a striking focal point that will captivate all who approach your home.

At the heart of the LIM-BATCH Glass is its fully glazed aluminum construction, which not only ensures unparalleled structural integrity but also allows for an abundance of natural light to flood your entryway. The clean, minimalist profiles and the meticulous attention to detail result in a front door that exudes a sense of refined elegance, perfectly complementing the architectural style of your home.

Crafted with the finest aluminum components and engineered for optimal performance, the LIM-BATCH Glass doors not only impress with their visual appeal but also deliver exceptional thermal and acoustic insulation. This advanced engineering ensures that your home remains comfortable and energy-efficient, shielding you from the elements while maintaining a peaceful, tranquil environment.

Designed with security as a top priority, the LIM-BATCH Glass features robust hardware and advanced locking mechanisms, providing you with the peace of mind that your home and family are well-protected. The seamless integration of these security features ensures that the door's aesthetic integrity is never compromised, allowing you to enjoy both form and function in perfect harmony.

Customizable to suit your unique preferences, the LIM-BATCH Glass system offers a wide range of design options, enabling you to tailor the door to your specific architectural style and personal taste. Whether you prefer a sleek, minimalist look or a more expressive, statement-making design, the LIM-BATCH Glass can be customized to create a truly bespoke front door that reflects your individual style.

Elevate your home's entryway and make a lasting impression with the LIM-BATCH Glass fully glazed aluminum front door from Reynaers. This exceptional solution will transform your entrance, ushering in a new era of refined elegance, uncompromising quality, and exceptional performance. Experience the epitome of timeless front door design and let the LIM-BATCH Glass be the gateway to your exceptional home.
