LIM Glass S23 - aluminium front door milk with transparent adress

SKU
LIM Glass S23
Rating:
100 % of 100
2  Reviews Add Your Review
AVAILABLE
CA$7,100.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$7,100.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S23 - aluminium front door milk with transparent adress
Your Rating

The LIM Glass S23 aluminium front door, finished in a sophisticated milk shade and featuring a transparent address panel, represents the perfect harmony of contemporary style, durability, and practical functionality. Designed to enhance the entrance of both residential and commercial properties, this door offers an inviting aesthetic paired with advanced materials and thoughtful details that elevate everyday living.

Crafted from premium-grade aluminium, the LIM Glass S23 is engineered for strength, resilience, and longevity. Aluminium’s natural resistance to corrosion and weathering ensures this front door maintains its pristine appearance and structural integrity even in the toughest environmental conditions. The lightweight nature of aluminium also facilitates easier installation and reduces maintenance requirements, making it an ideal choice for homeowners and builders alike.

The elegant milk finish distinguishes this door with a soft, neutral tone that complements a wide range of architectural styles—from minimalist modern homes to more traditional facades seeking a fresh update. This subtle yet refined color creates a welcoming entrance that exudes warmth and understated sophistication, enhancing curb appeal without overpowering the overall exterior design.

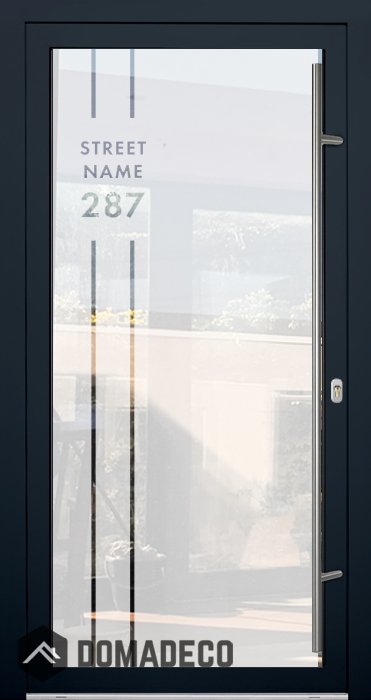

A key feature of the LIM Glass S23 is its integrated transparent address panel, which seamlessly blends functionality with style. This innovative element enables clear, easy-to-read display of house or business numbers, improving property identification for guests, delivery personnel, and emergency responders. The transparent nature of the address panel ensures it is visible without interrupting the door’s clean lines and minimalist aesthetic, making it a distinctive design highlight that adds both form and function.

Beyond its visual appeal, the LIM Glass S23 is designed to deliver high performance. The aluminium frame provides excellent thermal insulation properties, contributing to energy efficiency by helping to regulate indoor temperatures year-round. Additionally, the door’s airtight seals offer effective soundproofing, reducing external noise and creating a more peaceful indoor environment. These features combine to enhance comfort and reduce utility costs, making the door as practical as it is beautiful.

Installation of the LIM Glass S23 is adaptable and user-friendly, suitable for new construction projects as well as renovations. Its versatile milk color and transparent address panel allow it to harmonize effortlessly with diverse exterior materials such as brick, stone, or wood, while customizable hardware options enable tailored styling to meet specific preferences and functional needs.

In summary, the LIM Glass S23 aluminium front door in milk finish with transparent address detailing is a premium entrance solution that marries timeless elegance with modern innovation. It offers robust durability, superior insulation, enhanced visibility of property identification, and a striking yet subtle aesthetic. Ideal for those seeking a front door that makes a confident statement while delivering lasting quality and everyday convenience, the LIM Glass S23 is a smart investment for any property looking to combine beauty and performance.
