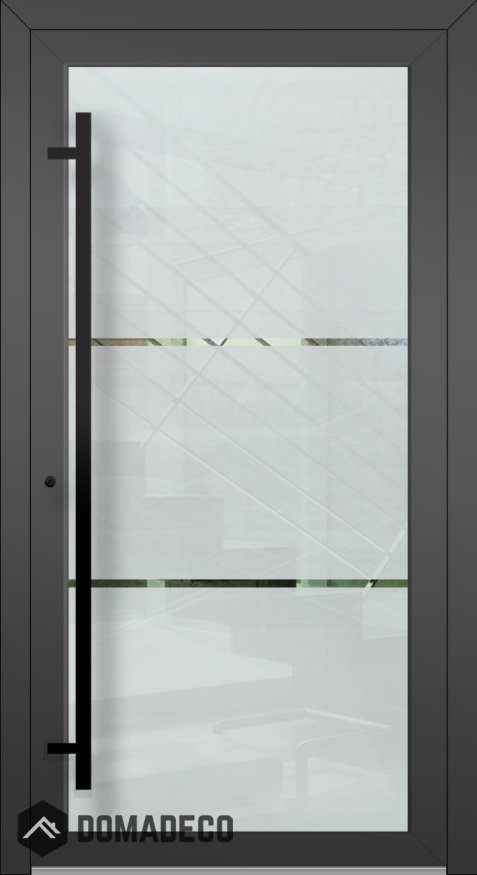

LIM Glass S2 - frosted main door with two transparent stripe

SKU
LIM Glass S2
Rating:
100 % of 100
AVAILABLE
CA$7,846.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$7,846.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S2 - frosted main door with two transparent stripe
Your Rating

The LIM Glass S2 aluminum frosted main door with two transparent stripes is a premium architectural solution designed to combine style, security, and functionality in a single, elegant package. Engineered with precision and crafted from high-quality materials, this door is an ideal choice for homeowners and businesses looking to enhance their entrances with a modern, sophisticated aesthetic that also offers practical benefits. Its sleek aluminum frame, paired with frosted glass and distinctive transparent stripes, creates a visually striking focal point that elevates the overall appearance of any building facade, while providing a welcoming and secure gateway.

The defining feature of the LIM Glass S2 is its frosted glass panel, which offers a perfect balance between privacy and natural light. The frosted finish gently diffuses sunlight, allowing soft, ambient illumination to enter the interior spaces without compromising privacy. This is especially valuable for main entrances where maintaining discretion is important, yet a bright, airy atmosphere is desired. The frosted glass also lends a smooth, contemporary texture to the door surface, enhancing its visual appeal and complementing a wide range of architectural styles from minimalist to modern urban designs.

Adding a unique and stylish dimension to this door are the two transparent horizontal stripes that cut across the frosted glass. These clear bands provide a subtle yet impactful contrast, introducing a dynamic element of transparency that breaks the monotony of the frosted finish. Functionally, these stripes allow controlled visibility, letting occupants catch glimpses of the outside environment while still maintaining a sense of seclusion. This design feature not only enhances the aesthetics but also fosters a connection between indoor and outdoor spaces, making the entrance feel more inviting and open without sacrificing security.

The robust aluminum frame of the LIM Glass S2 is crafted to withstand the demands of daily use and exposure to the elements. Known for its strength, corrosion resistance, and lightweight properties, aluminum ensures that the door remains durable and maintains its sleek appearance over time. The frame is precision-engineered to provide excellent structural support for the glass panels, while also being resistant to warping, rust, and fading. This makes the LIM Glass S2 a low-maintenance option that retains its elegance and functionality with minimal upkeep.

Additionally, the door is equipped with high-quality locking mechanisms and hardware that guarantee smooth operation and enhanced security. These features provide peace of mind by safeguarding your property without compromising the door’s refined aesthetics. The combination of reliable security components with modern design elements makes the LIM Glass S2 a smart investment for anyone prioritizing both safety and style.

In terms of versatility, the LIM Glass S2 is designed to integrate seamlessly with various exterior design schemes and building types. Whether installed as the main entrance to a contemporary home, an office, or a commercial establishment, this door adds a distinct touch of modern sophistication. Its clean lines, elegant frosted finish, and eye-catching transparent stripes ensure it complements both new construction projects and renovation efforts, adapting effortlessly to evolving design trends and personal preferences.

In summary, the LIM Glass S2 aluminum frosted main door with two transparent stripes is a standout choice for those seeking a beautifully crafted, durable, and functional entrance solution. It perfectly balances privacy with natural light, security with style, and modern design with lasting performance. Offering an impressive blend of aesthetics and practicality, the LIM Glass S2 transforms any entryway into a welcoming, secure, and visually captivating space that enhances the overall character and value of your property.
