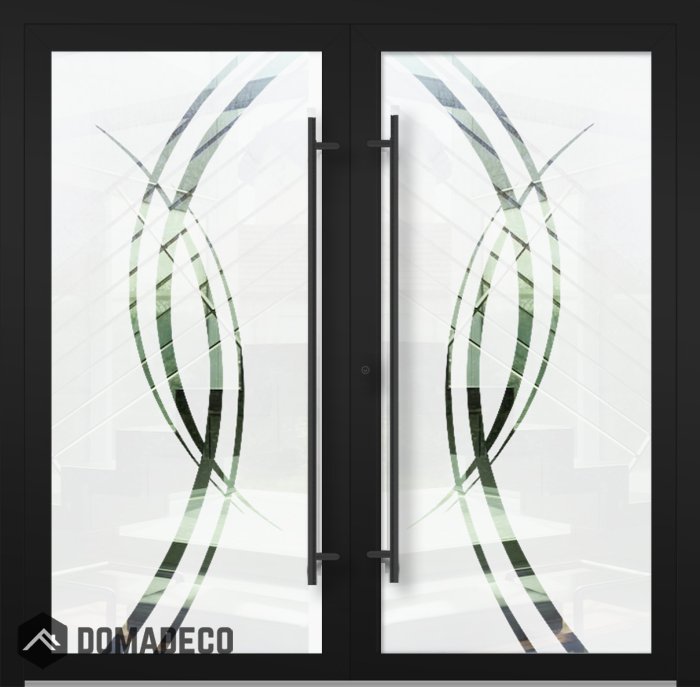

LIM GLASS double S - frosted aluminum souble door with transparent motif

SKU
LIM GLASS double-s
Rating:
100 % of 100
AVAILABLE
CA$16,200.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$16,200.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM GLASS double S - frosted aluminum souble door with transparent motif
Your Rating

The LIM GLASS Double S is a premium frosted aluminum double door that masterfully combines elegant design with outstanding durability and functionality. Designed to make a bold architectural statement, this double door is ideal for both residential and commercial entrances where style, security, and light management are paramount. Its sleek aluminum frame paired with frosted glass panels featuring a distinctive transparent motif creates an exquisite balance of privacy and visual interest, elevating any façade with modern sophistication and artistic flair.

At the core of the LIM GLASS Double S’s design is its frosted glass, which provides effective privacy by diffusing light and obscuring direct views, while still allowing natural daylight to permeate interior spaces. This ensures a bright and welcoming atmosphere without sacrificing discretion. The transparent motif embedded within the frosted glass adds a unique decorative element that sets the door apart from conventional designs. This motif can be customized to complement various architectural styles and personal preferences, making the door not only functional but also a personalized work of art that enhances the building’s curb appeal.

Constructed with high-quality aluminum, the frame of the LIM GLASS Double S is engineered to deliver exceptional strength, resilience, and weather resistance. Aluminum’s lightweight yet sturdy nature ensures the door remains easy to operate, while its corrosion-resistant properties guarantee long-lasting performance even in the most demanding external environments. This robust construction provides excellent protection against elements such as rain, wind, and UV exposure, making it a reliable choice for external doors that need to withstand daily use and environmental challenges.

Security is a fundamental aspect of the LIM GLASS Double S design. The combination of reinforced aluminum framing and durable frosted glass with transparent motifs offers a secure barrier against unauthorized access, helping property owners feel confident in their building’s protection. The door’s precision-engineered hardware and smooth operation mechanisms further enhance user experience, ensuring ease of use without compromising on safety or structural integrity.

In addition to its aesthetic and protective qualities, the LIM GLASS Double S is designed with practicality in mind. The frosted glass surface is resistant to fingerprints, smudges, and dirt, making maintenance straightforward and keeping the door looking immaculate with minimal effort. Its double-door configuration also allows for wider openings, facilitating easy movement of people and large objects, which is particularly advantageous for commercial settings or homes with high traffic.

Overall, the LIM GLASS Double S frosted aluminum double door with transparent motif represents a harmonious fusion of style, durability, and security. It transforms any entrance into a striking focal point that reflects contemporary design sensibilities while meeting the functional demands of external doors. Investing in the LIM GLASS Double S means choosing a door that not only enhances the aesthetic value of your property but also delivers reliable performance and long-term satisfaction.
