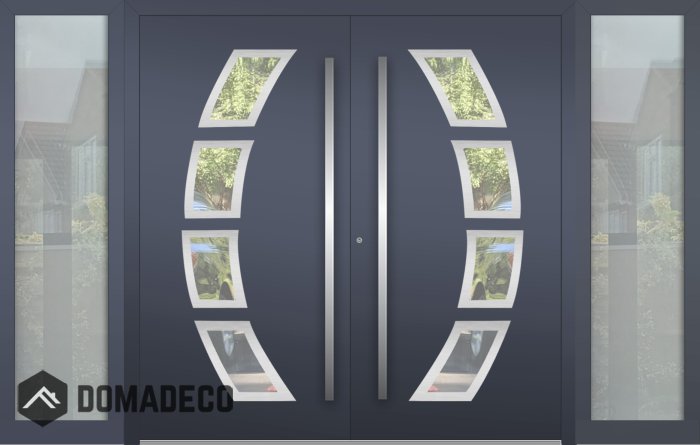

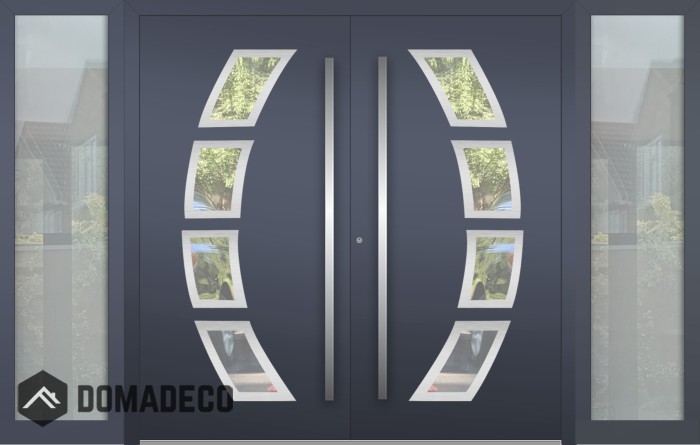

Aluminum LIM Double door with left and right glass panel / sidelight

SKU
LIM-double-door-with-left-right-glass-panel
AVAILABLE
CA$12,800.00

The price includes TAX & shipping

Click here to select the configuration

Production time for our doors:
door named LIM (aluminum) - production takes 7 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 8 weeks

Size door with frame:
Width from: 63" to 78.7"
Height from: 78.7" to 96"

Glass panel width with frame:
from 11.8" to 59"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Full door information

LIST OF LIM DOOR TYPES

-
+
CA$12,800.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:Aluminum LIM Double door with left and right glass panel / sidelight
Your Rating

The Aluminum LIM Double Door with Left and Right Glass Panels (Sidelights) is an elegant and contemporary entrance solution designed to enhance both the functionality and visual appeal of residential and commercial properties. Combining the strength and durability of premium aluminum construction with the aesthetic benefits of expansive glass sidelights, this door system creates a welcoming, light-filled entryway that effortlessly balances security, style, and energy efficiency.

At the heart of this entrance is the robust aluminum double door, engineered for exceptional performance, longevity, and ease of use. Aluminum’s inherent strength ensures that the doors remain warp-resistant, corrosion-proof, and low maintenance, even in demanding weather conditions. The double doors are equipped with advanced locking mechanisms and reinforced frames to provide superior security without sacrificing the sleek, modern appearance. The smooth operation and precise fit contribute to a seamless user experience, making this door system ideal for high-traffic areas and demanding environments.

Flanking the double doors on both the left and right sides are the glass panels, commonly known as sidelights, which serve as an attractive architectural feature while allowing natural light to flood the interior space. These sidelights create a bright and inviting ambiance in entry halls or reception areas, enhancing the overall atmosphere and making spaces feel larger and more open. The generous glass panels also provide unobstructed views to the outside, connecting indoor and outdoor environments and adding to the sense of openness.

Customization is a key advantage of the Aluminum LIM Double Door with sidelights. The glass panels can be tailored to meet specific needs through a variety of glazing options. Choose from tempered or laminated safety glass to enhance security and durability, or select energy-efficient glass variants that improve thermal insulation and reduce heat gain or loss, contributing to lower energy bills and greater indoor comfort. Additional treatments, such as frosted, tinted, or decorative glass, offer privacy while maintaining a sophisticated appearance that complements any architectural style.

The aluminum framing surrounding the doors and sidelights is designed with a minimalist, clean-lined profile that maximizes the visible glass area without compromising structural integrity. This contemporary design seamlessly integrates with a broad range of architectural aesthetics—from modern and minimalist to transitional and classic—making it a versatile choice for diverse building styles. The frames are finished with a high-quality powder coating available in multiple colors and textures, ensuring excellent resistance to weathering, fading, and corrosion while allowing customization to match or accentuate exterior finishes.

Beyond aesthetics, the door system is engineered for superior performance and comfort. Weather stripping and seals are meticulously integrated to prevent drafts, water intrusion, and noise pollution, contributing to a quieter and more energy-efficient indoor environment. The durability of aluminum combined with these protective features ensures that the door system maintains its functionality and appearance over many years with minimal upkeep.

Installation of the Aluminum LIM Double Door with Left and Right Glass Panels is flexible and adaptable, accommodating a variety of opening sizes and configurations. This makes it suitable for a wide array of applications, from grand residential entrances to commercial buildings where an impressive and welcoming entryway is essential.

In summary, the Aluminum LIM Double Door with Left and Right Glass Panels is a premium entrance solution that harmoniously blends durable aluminum construction with expansive, light-enhancing sidelights. It offers a perfect combination of security, energy efficiency, and modern design that elevates curb appeal while creating a bright, inviting atmosphere. Ideal for those seeking an entrance that makes a lasting impression, this door system represents a smart investment in both style and functionality.
