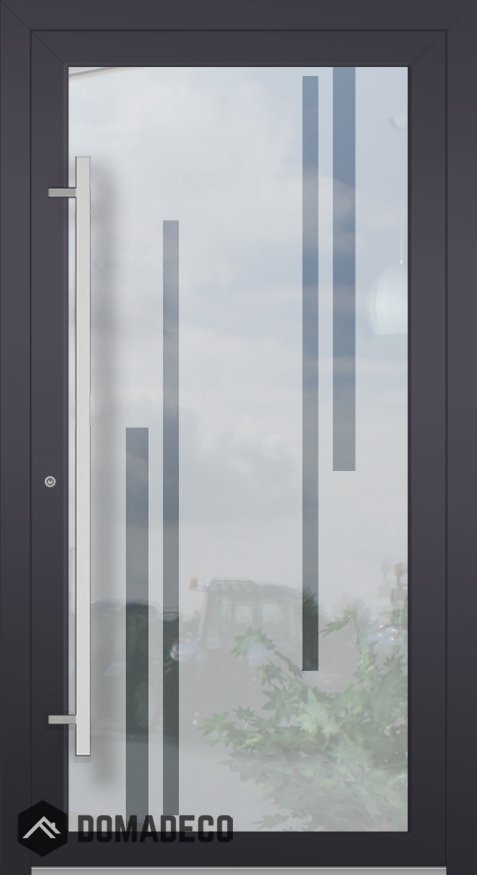

LIM Glass S10 - aluminium frosted front door with transparent decor

SKU
LIM Glass-S10
Rating:
100 % of 100
AVAILABLE
CA$7,100.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 51"
Height from: 78.7" to 96"

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 1.9"
Thermal insulation: R-Value 5.9

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.

Frequently Asked Questions: click here to check

-
+
CA$7,100.00

The price includes TAX & shipping

We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S10 - aluminium frosted front door with transparent decor
Your Rating

The LIM Glass S10 is a premium aluminium frosted front door that effortlessly combines sleek modern design with superior durability and functionality. Crafted to make a striking first impression, this door is an ideal choice for homeowners, architects, and designers seeking to enhance the entrance of residential or commercial properties with a sophisticated and contemporary aesthetic.

At the heart of the LIM Glass S10’s appeal is its frosted glass panel, which offers an elegant balance between privacy and natural light. The frosted finish gently diffuses sunlight, allowing soft, ambient illumination to filter through while maintaining complete privacy from outside view. What truly sets this door apart is the incorporation of transparent decorative elements within the frosted glass. These subtle transparent accents create a captivating visual interplay that enhances the door’s overall design, adding depth and character without compromising the sleekness of its modern look. The transparent decor can be customized to complement a wide range of architectural styles and personal preferences, ensuring that each door is a unique statement piece.

Constructed from high-quality aluminium, the LIM Glass S10 is engineered for long-lasting performance and resilience. Aluminium’s natural resistance to corrosion and weathering makes this door exceptionally well-suited for exterior use, capable of withstanding harsh environmental conditions including rain, wind, and UV exposure without fading, warping, or deteriorating. This ensures that the door retains its pristine appearance and structural integrity over many years, reducing the need for frequent maintenance or replacement.

Security is a paramount feature of the LIM Glass S10. The frosted glass panel is made from toughened safety glass, designed to withstand impact and enhance occupant safety by minimizing injury risks if the glass is ever broken. This, combined with the sturdy aluminium frame and advanced locking systems, provides robust protection against forced entry and ensures peace of mind for occupants. The door’s solid construction does not sacrifice style, as it maintains a slim profile and clean lines that contribute to its contemporary elegance.

Functionality and ease of use are also central to the design of the LIM Glass S10. The door is equipped with precision-engineered hinges and hardware that facilitate smooth, effortless operation, making daily use convenient and comfortable. Additionally, the frosted glass surface is resistant to fingerprints, smudges, and dirt, allowing the door to maintain its clean, polished look with minimal upkeep. This low-maintenance characteristic is particularly valuable for busy households and commercial spaces where appearance and hygiene are priorities.

Versatility is another key advantage of the LIM Glass S10. Its modern yet timeless design complements a wide variety of architectural styles, from minimalist and industrial to contemporary and transitional. Whether installed in a sleek urban apartment, a stylish suburban home, or a professional office building, the door elevates the entrance with a refined and welcoming presence.

In summary, the LIM Glass S10 aluminium frosted front door with transparent decor represents a sophisticated fusion of form and function. It delivers exceptional aesthetics through its innovative use of frosted and transparent glass elements, while aluminium construction ensures durability, security, and low maintenance. This door is an excellent investment for those who desire a stylish, secure, and practical entry solution that enhances both the curb appeal and functionality of their property for years to come.
