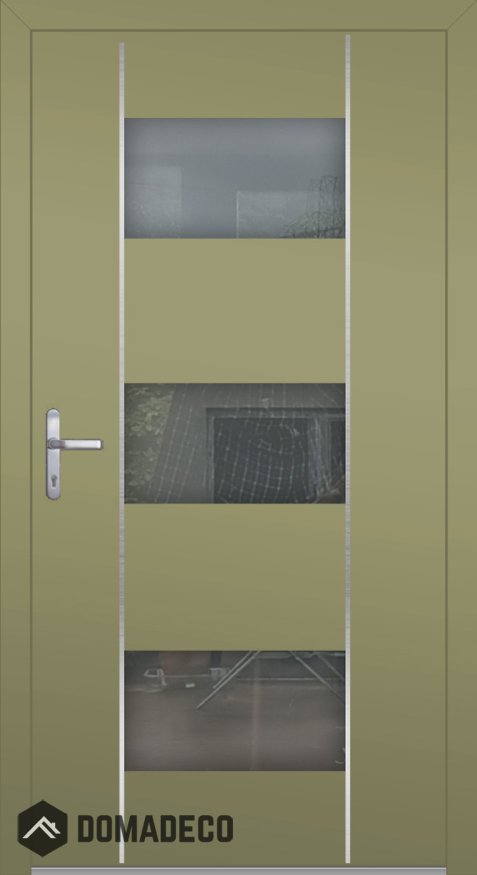

LIM AP13 - thermally insulated modern aluminum entry door with glass

SKU
LIM AP13
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
CA$8,124.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminum) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 35.4" to 61"
Height from: 78.7" to 112.6"

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

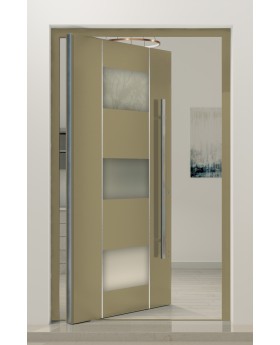

You can order this door model in a bigger size. View Pivot AP13

Specification

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges and concealed hinges.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 2.7"
Thermal insulation: R-Value 8.3
Sound insulation: 30dB

The door set includes:

- Aluminum door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 0.6" height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 0.2" to 0.8" on each side.
Frequently Asked Questions: click here to check

-
+
CA$8,124.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction

Technical specifications:

  • The multi-point lock FUHR is used for locking. It has many locking and control configurations.
  • Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
  • Glazing in the door leaf: triple glazing glass
  • Thickness of polyurethane foam in the leaf: 70 mm
  • Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
  • Sound insulation: 30dB

The door set includes:

  • Aluminium door and the door frame;
  • door handle made of stainless steel;
  • 3-part roller hinges in the same color as the door;
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm height;
  • Standard lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Graphite reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

ALUPROF STYLE handles

ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
The escutcheon/cover plate is 33 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.



Write Your Own Review
You're reviewing:LIM AP13 - thermally insulated modern aluminum entry door with glass
Your Rating

The LIM AP13 is a cutting-edge thermally insulated modern aluminum entry door with glass, designed to meet the highest standards of energy efficiency, security, and contemporary style. This premium door combines advanced materials and innovative engineering to provide an exceptional entrance solution that enhances both the aesthetic appeal and functional performance of any residential or commercial building.

Constructed from high-quality aluminum, the LIM AP13 offers outstanding strength and durability while maintaining a sleek, lightweight profile. Aluminum’s natural resistance to corrosion and weathering ensures that the door retains its pristine appearance and structural integrity over many years, even in the most demanding climates. The modern design features clean, minimalist lines paired with large glass panels that flood interiors with natural light, creating a bright and inviting atmosphere while complementing contemporary architectural trends.

A hallmark of the LIM AP13 is its superior thermal insulation capabilities. The door incorporates advanced thermal break technology within the aluminum frame, effectively reducing heat transfer between indoor and outdoor environments. This design significantly improves energy efficiency by minimizing heat loss during colder months and heat gain during warmer seasons, thereby contributing to lower heating and cooling costs. The glass components are engineered with double or triple glazing, enhanced with low-emissivity (Low-E) coatings and argon gas fills, which further boost thermal performance and reduce condensation. This combination not only keeps interiors comfortable year-round but also offers excellent sound insulation, providing a quieter and more serene indoor environment.

Customization is a key strength of the LIM AP13, allowing it to be tailored to suit a variety of architectural styles and personal preferences. The aluminum frame is available in a wide range of colors and finishes, achieved through durable powder coating or anodizing processes, ensuring long-lasting aesthetics with minimal maintenance. The glass panels can be customized with options such as tinted glass, frosted designs, or decorative patterns to balance privacy needs with natural light transmission and visual appeal. Whether you desire a fully transparent door to maximize daylight or a more private, diffused-glass option, the LIM AP13 offers versatile design possibilities.

Security is a paramount consideration in the LIM AP13’s design. The robust aluminum frame provides a formidable barrier against forced entry, and the door can be equipped with advanced multi-point locking systems and reinforced hardware to enhance protection without compromising its elegant appearance. High-quality weather seals and precision engineering also provide excellent resistance to air and water infiltration, protecting interiors from drafts, moisture, and external noise.

Functionality and ease of use are seamlessly integrated into the LIM AP13. The door is fitted with smooth-operating hinges and precision hardware for effortless opening and closing. Additional features such as integrated handles, electronic access control, and keyless entry options can be incorporated to enhance user convenience and security. The door’s flush, minimalist profile aligns perfectly with modern architectural aesthetics, making it an ideal centerpiece for upscale homes, commercial offices, and contemporary retail spaces.

Professional installation is recommended to ensure that the LIM AP13 achieves optimal thermal performance, proper fit, and smooth operation. Our experienced team works closely with clients to provide customized solutions that meet specific architectural requirements and functional needs, delivering an entryway that is both visually striking and highly efficient.

In summary, the LIM AP13 thermally insulated modern aluminum entry door with glass represents the pinnacle of contemporary door technology and design. By combining superior thermal insulation, robust security features, and extensive customization options, it offers an outstanding solution for those seeking to enhance their property’s entrance with a door that is as beautiful as it is functional. With the LIM AP13, you invest in a durable, energy-efficient, and stylish entryway that elevates the overall comfort, security, and aesthetic value of any building.
