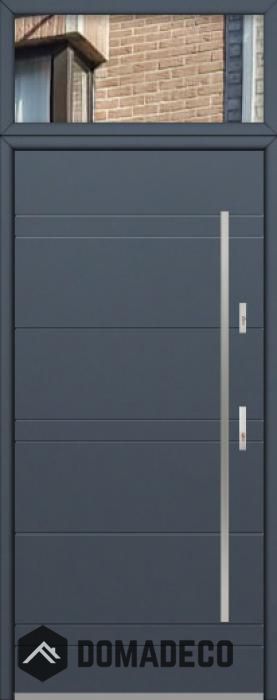

custom configuration - Fargo door with top sidelight
Door width with frame:
34.4" (31.9" door slab)
36.4" (33.9" door slab)
38.4" (35.8" door slab)
40.4" (37.8" door slab)
44.3" (41.7" door slab)
Door height with glass panel:
from 89.8" to 137.8"
Colour: Anthracite sapphire, dark anthracite, smooth anthracite, silver gray, walnut, wenge, golden oak, white structure, mahogany, winchester, swamp oak, black, bleached oak, Colour RAL 7006, turners oak
Opening way: Right hand (RH) - opening to inside, Left hand (LH) - opening to inside, Right hand reverse (RHR) - opening to outside, Left hand reverse (LHR) - opening to outside
Electronic Opener T-bar (button + electric strike + power supply): only Straight T-bar
The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door slab is 2.1 inch. Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door slab. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
The door set includes:
- Door and the door frame with two gaskets;
- Two independent locks (multi-point locking mechanism) providing anti-burglary security solutions;
- Two sets of inserts with the keys;
- Normal door handle (T-bar long handle as an additional option);
- Viewfinder (in the case of solid doors);
- 6x adjustable hinges (3x on each side) that provide anti-burglary protection;
- Aluminum threshold with the gasket;
- 3x anti-theft bolts.
Thermal and soundproof specification:
- for a full door slab with 2.1 inch thickness, at Ud = 0.98 W/K*m2
- for glazed door slab with 2.1 inch thickness, at Ud = 1.1 W/K*m2
- acoustic insulation 31 dB (applies to doors without glazing)
- glass doors are made of triple glazing packages.
The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.
The installation space between the frame and the wall can be up to 1.6 inch in total
