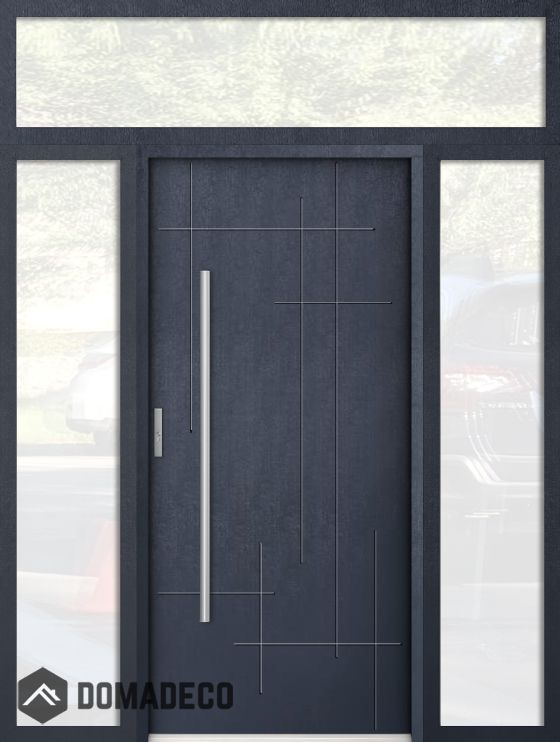

custom configuration - STA steel front door with left, right and top glass panels

SKU
STA door with left right top sidelight
Rating:
85 % of 100
2  Reviews Add Your Review
AVAILABLE
CA$9,250.00

The price includes TAX & shipping

Click here to select the configuration

Production time for our doors:
door named STA with glass panel  - production takes 7 weeks
door named FARGO (stainless steel) - production takes 8 weeks
door named LIM (aluminum) - production takes 7 weeks

Door width with frame:
36" (32.3" door slab)
37.2" (33.5" door slab)
40" (36.2" door slab)
41.1" (37.4" door slab)
45.1" (41.3" door slab)

Door height with frame:
82.3"

Glass panels width with frame:
from 7.9" to 19.7"

Top glass panel height with frame:
from 7.9" to 19.7"

Available door colors:
anthracite, white, black, silver gray, red, blue, golden oak, walnut, wenge, bleached oak, concrete, turners oak, corten, mahogany

Full door information

LIST OF STA DOOR TYPES

-
+
CA$9,250.00

The price includes TAX & shipping

Wish List
Email
We found other products you might like!

Profile construction


Construction:

The door is made of stainless steel. Inside it is filled with PUR polyurethane foam and wood. The thickness of the door leaf is 73 mm / 2.9". Dual sealing system - one seal is in the dap of the frame and the other is located in the supporting part of the door leaf. They reduce vibration and protect your house from losing the heat. They don't change their volume under the influence of atmospheric conditions. The door frame has anti-burglar reinforcements in hinge parts and locking points.
  • frame depth: 43 mm / 1.7"
  • leaf/slab depth: 73 mm / 2.9"

The door set includes:

  • - Door and the door frame with two gaskets;
  • - ROTO locking system (strip lock) with an independent upper lock and three reinforced anti-theft bolts;
  • - Two sets of inserts with the keys;
  • - Normal door handle (T-bar long handle as an additional option);
  • - Viewfinder (in the case of solid doors);
  • - 3x adjustable hinges that provide anti-burglary protection;
  • - Aluminium threshold with the gasket;
  • - 3x anti-theft bolts.

Thermal and soundproof specification:

  • - for a full door leaf, at Ud = 0,85 W/K*m2 / R-Value = 7.1
  • - for glazed door leaf , at Ud = 1,1 W/K*m2 / R-Value = 5,7
  • - acoustic insulation 25 dB (applies to doors without glazing)
  • - glass doors are made of triple glazing packages.

Dimensions and real pictures of the door threshold from the Sta collection


Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Light permeability of the glass:

- Milk – frosted glass 89%
- Mirror glass – 68 %
- Bronze Reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

Colours



Golden Oak

Winchester

Walnut

Wenge

turners oak

Black

smooth anthracite RAL 7015

dark anthracite RAL 7016

white

abbys blue

calm salvia

july blue

twilight green

marble red

Door handle inox - silver

Door handle black

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




T-bar Straight, circular shape 1200 mm / 47.2"

T-bar Straight, rectangular shape 1600 mm / 59.0"

YES, round arch silver 1200 mm / 47.2"

Lever Handle vs T-bar Pull Handle

1. If you have a Lever handle/normal handle from the outside, you can release the latch without using a key from outside. You simply push the Lever handle down and the latch will retract allowing you to open the door.

2. If you have a T-bar long handle from the outside, it has no way to release the latch because it is only used for pushing and pulling the door. So in this situation from the outside you always need keys to re.lease the latch. Then insert the keys into the key hole and turn to release the latch and open the door.

3. We offer a third additional option if the customer decides to purchase a T-bar. When selecting the T-bar on our website, you can additionally order a Knob Handle that will be installed together with the T-bar from the outside. This door Knob Handle will allow you to release the latch from the outside. So you can order Tbar + Knob which is quite small and looks quite nice.

Multi-point lock system

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

How measure the hole in the wall for door installation

The picture shows the dimensions of the door with the frame and how to measure the opening for door installation. Please take the measure from the floor "tile or wooden panel" inside the house to the top brick level.

The space for the door installation should be between minimum 5mm to 20mm larger than the overall size of the door with the frame. This space is necessary as it should be filled with foam during the installation. This will also ensure insulation between the wall and the door frame.

Write Your Own Review
You're reviewing:custom configuration - STA steel front door with left, right and top glass panels
Your Rating

The STA Steel Front Door with Left, Right, and Top Glass Panels is a premium entryway solution that expertly combines strength, elegance, and functionality to enhance the appearance and security of any home or commercial building. Crafted from high-quality steel, this door is engineered to provide exceptional durability and resistance against harsh weather conditions, forced entry, and daily wear, ensuring long-lasting performance and peace of mind. Its robust steel core offers superior protection while maintaining a sleek and contemporary aesthetic that complements a wide range of architectural styles.

One of the defining features of the STA steel front door is its incorporation of three glass panels strategically positioned to maximize natural light and visual appeal. These panels include sidelights on the left and right sides of the door as well as a transom panel above. The left and right glass panels frame the door beautifully, creating a balanced and inviting façade that immediately elevates curb appeal. They allow ample daylight to enter the interior space, brightening the entryway and creating a warm, welcoming atmosphere. The top glass panel adds an elegant horizontal accent that enhances the door’s height and presence, making the entrance feel larger and more open.

Each glass panel is designed with both aesthetics and security in mind. Manufactured using tempered or laminated safety glass, the panels are highly durable and resistant to impact, offering protection without sacrificing transparency or style. Customers can choose from a variety of glass options—including clear, frosted, tinted, or decorative designs—to suit privacy preferences and complement the overall look of the property. The steel framing around each glass panel ensures structural integrity and cohesion with the main door, creating a seamless and sturdy assembly.

The door’s surface is coated with a high-quality, weather-resistant finish that protects against rust, corrosion, fading, and other environmental factors. This coating maintains the door’s pristine appearance while reducing maintenance needs over time. Additionally, the door frame is engineered to create an airtight seal around both the steel door and glass panels, improving energy efficiency by minimizing drafts and heat loss. This feature contributes to enhanced indoor comfort and potential savings on heating and cooling costs.

Security is a cornerstone of the STA steel front door’s design. It comes equipped with heavy-duty hinges, reinforced frames, and an advanced multi-point locking system that secures the door at multiple points along the frame. This robust locking mechanism significantly increases resistance to forced entry attempts. The hardware is thoughtfully selected to complement the door’s modern and elegant design, with a range of finishes available to match the property’s exterior decor.

Installation of the STA Steel Front Door with Left, Right, and Top Glass Panels is designed to be straightforward and adaptable, fitting a variety of building structures and door openings. Whether installed in a traditional home, contemporary residence, or commercial property, this door offers a perfect combination of security, style, and natural light enhancement.

In summary, the STA Steel Front Door with Left, Right, and Top Glass Panels is an outstanding choice for those seeking a durable, secure, and visually striking entryway. Its robust steel construction paired with thoughtfully placed glass panels allows for a bright, welcoming, and elegant entrance that boosts curb appeal and property value. Combining superior craftsmanship with architectural sophistication, this door delivers an exceptional balance of form and function that will serve any property for years to come.
