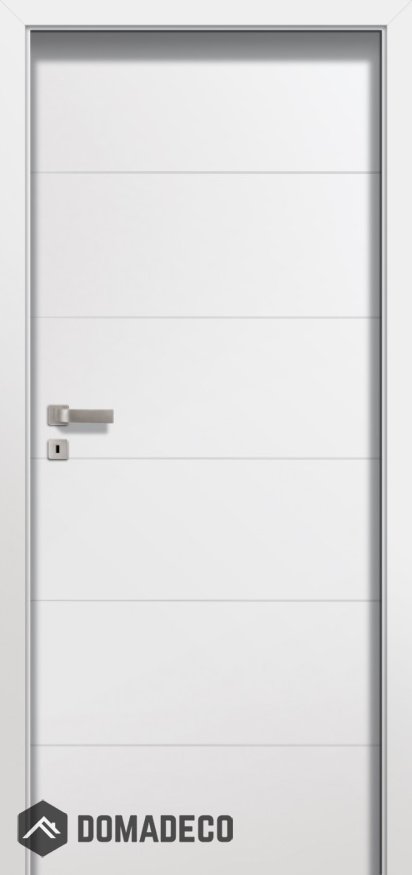

Plano SIMPLE - white inside door

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with ecological acrylic paint (RAL and NCS colour palette).
The core consists of a honeycomb-like stabilizing layer.
The door slab is decorated with horizontal milling.

STANDARD EQUIPMENT

• White matt glass, 0.2" thick
  white matt tempered glass, 0.2" thick (for 01 and 02 patterns)
• Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
• Hinges: B type

Standard door slab size [inch]:
24.4" x 79.5"
28.3" x 79.5"
32.3" x 79.5"
36.2" x 79.5"

Required Installation hole width [inch]:
24.4" x 79.5" - 26.6" min installation hole width / 30.9" - max installation hole width
28.3" x 79.5" - 30.6" min installation hole width / 34.9" - max installation hole width
32.3" x 79.5" - 34.5" min installation hole width / 38.8" - max installation hole width
36.2" x 79.5" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

ADDITIONAL EQUIPMENT (at an extra charge)

• Size “100” (glazing decoration as in “90”)
• Size “110” (glazing decoration as in “90”)
• Non-standard door shortening (maximum door shortening available: up to 3.9") (shortened from the top)
• Door lower by 2" or 3.9"
• Door higher by 2" or 3.9"
• Door higher by 5.9" or 7.9"
