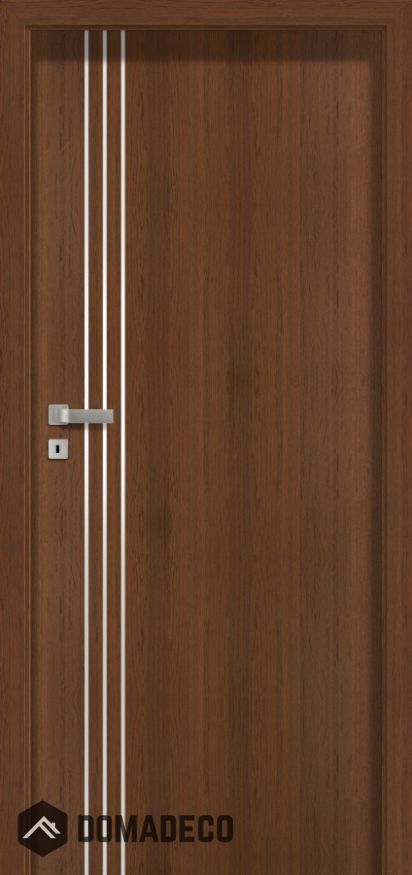

Plano ETI - solid interior door

SKU
Plano ETI
In stock
CA$810.00
Click here to select the configuration

The door is made of a wooden rail and stile set topped with two flush HDF boards covered with LAMISTONE CPL, SILKSTONE surface finish.
H version wood grain only on the leaf surface.
The core consists of a honeycomb-like structure in A01, A02, A03, B0 versions and soild chipboard in B1,B2, B3, B4 versions.

STANDARD EQUIPMENT

  • White matt tempered glass, 0.2" thick
  • Glazing width in A01 version - 2.1", A02 - 8.1", A03 - 10.9"
  • Single-point mortise lock (rebated system) or magnetic mortise lock (non-rebated system), key-operated, for a cylinder or a bathroom lock
  • Hinges: B type

Standard door slab size [inch]:
23.6"x78.7"
27.6"x78.7"
31.5"x78.7"
35.4"x78.7"

Required Installation hole width [inch]:
23.6"x78.7" - 26.6" min installation hole width / 30.9" - max installation hole width
27.6"x78.7" - 30.6" min installation hole width / 34.9" - max installation hole width
31.5"x78.7" - 34.5" min installation hole width / 38.8" - max installation hole width
35.4"x78.7" - 38.4" min installation hole width / 42.8" - max installation hole width

Required Installation hole height [inch]:
min installation hole height: 80.8"
max installation hole height: 83.1"

Required thickness of your wall [inch]
min 3"
max 11.8"

COLOUR:

240 bleached elm V, 241 sandy elm V, 242 gray elm V, 254 Royal anthracite H, 255 Polish ash tree H, 256 bright nougat V, 257 bright nougat H, 258 white, 260 white oak, 263 premium walnut, 265 wenge, 276 polish oak, 288 royal maple, 289 grey, 292 royal chestnut, 293 royal anthracite, 294 royal ash tree, 295 royal merbau, 296 polish ash tree, 297 royal nougat

OPENING WAY:

Right hand (RH), Left hand (LH),

ADDITIONAL EQUIPMENT (at an extra charge)

  • Size “100”
  • Size “110” (applies to B1, B2, B3, B4 versions)
  • Non-standard door shortening (maximum door shortening available: up to 3.9") (not applicable to A01, A02, A03 versions)
  • Door lower by 2" or 3.9" (not applicable to A01, A02, A03 versions)
  • Door higher by 2" or 3.9" (not applicable to A01, A02, A03 versions)
  • Door higher by 5.9" or 7.8" (not applicable to A01, A02, A03 versions)
  • A01, A02, A03 version door lower by 2"
  • A01, A02, A03 version door higher by 3.9"
  • A01, A02, A03 version door higher by 7.9"
  • Ventilation trim (not applicable to A02, A03 versions)
-
+
